PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1000 × 760 mm
Overall dimensions	2800 x 1000 x 760 mm
Left pedestal dimensions	850 x 700 x 680 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	165 kg
Distributed top load	80 kg
Pedestal cabinet load	30 kg per cabinet
Shelf or drawer load	15 kg per level
Recommended user weight at desk	120 kg
LED service life	25000 hours
Drawer/door slide cycle target	50000 cycles
Seating capacity	1 person
Color options	2 finishes
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	Dark wood-grain high-pressure laminate on moisture-resistant particleboard, with eased edge profile
Cabinet bodies	Beige lacquered MDF or particleboard panels with dark edge trim
Decorative doors	Beige painted panels with diagonal V-grooves, dark border, and vertical pull
Central panel	Beige resin- or lacquer-coated relief panel with raised mountain-line pattern
Frame and trim	Dark brown edge-banded trim with rounded metal-look corner profile
Ambient lighting	Warm-white LED strip behind the upper edge of the relief panel, with concealed wiring channel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage arrangement	Two enclosed pedestal cabinets flank the central knee bay and provide file or office storage
Door operation	Vertical pull handles activate outward-opening cabinet doors with 110-degree hinge travel for under-desk access
Cable management	Concealed rear wiring channel supports desk power and data cables with a 60 mm passage depth
Ambient lighting	Warm backlighting illuminates the relief panel through a continuous upper LED strip and should use a low-voltage driver

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	2860 x 1060 x 180 mm for the top and 900 x 760 x 720 mm per pedestal
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suitable for a manager or director office where a 2800 mm work surface supports documents, devices, and meeting-side discussion
High-end reception or consulting room	Suitable for premium client meetings because the illuminated relief panel provides a decorative backdrop while pedestals conceal supplies

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 office desk dimensions	Applicable reference for seated work-surface height, clearance, and dimensional safety
EN 527-2 mechanical safety	Applicable reference for strength, durability, and stability tests for office desks
EN 15372 office furniture durability	Applicable reference for strength and durability requirements for non-domestic storage-integrated desks

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5 desk products	Use as acceptance reference for desk load, cyclic testing, stability, and leg-strength evaluation
BIFMA E1 furniture sustainability	Use as optional procurement reference for material, energy, and product stewardship documentation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimensional and structural accuracy	Applicable standards and test results require confirmation
GB/T 3325 strength and durability	Applicable reference for metal and wooden office-furniture structural performance under load
GB 18580 formaldehyde emission	Applicable procurement limit for wood-based panels used in the top and cabinet bodies
GB/T 3326 desk dimensional coordination	Applicable reference for desk height, storage clearances, and functional dimensions

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimensional and structural accuracy: Applicable standards and test results require confirmation;
2. GB/T 3325 strength and durability: Applicable reference for metal and wooden office-furniture structural performance under load;
3. GB 18580 formaldehyde emission: Applicable procurement limit for wood-based panels used in the top and cabinet bodies;
4. GB/T 3326 desk dimensional coordination: Applicable reference for desk height, storage clearances, and functional dimensions;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-DBL-2800-LED-RELIEF

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-DBL-2800-LED-RELIEF

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-DBL-2800-LED-RELIEFOpen Export Tool

Quick Actions

Post an RFQ

Product Description

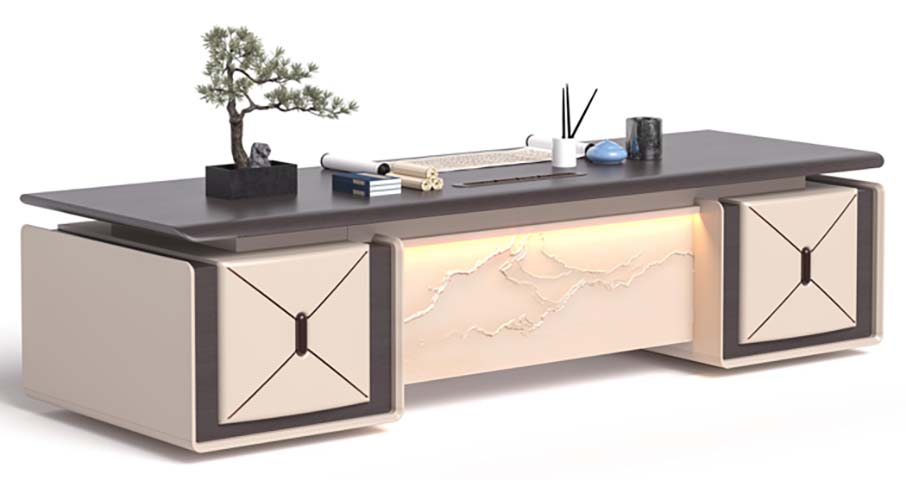

The Contemporary Double-Pedestal Executive Desk with Illuminated Relief Panel presents a substantial 2800 mm-wide workspace balanced by two enclosed support cabinets and a central knee bay. Its dark wood-grain high-pressure laminate top has an eased edge profile and a finished thickness of 50 mm, creating a strong visual anchor above beige lacquered MDF or particleboard pedestal bodies. Dark edge trim, dark brown edge-banded framing, and rounded metal-look corner profiles tie the two color tones together. Decorative doors use beige painted panels with diagonal V-grooves, dark borders, and vertical pull handles. Behind the work area, a beige resin- or lacquer-coated relief panel carries a raised mountain-line pattern, while a warm-white LED strip along its upper rear edge provides soft backlighting through concealed wiring. The overall form is symmetrical and formal, with storage placed on both sides of the main seating position. Construction pairs the moisture-resistant particleboard work surface with pedestal cabinets, aluminum trim, resin or lacquered relief detailing, an LED strip, and soft-close hardware. Each main seat benefits from knee clearance measuring 680 mm high and 900 mm wide. The support section uses an 80 mm main section with a 2 mm metal wall. An 80 mm cable opening and a cable tray with 120 mm depth help organize power and data cords, complemented by a concealed rear wiring channel with 60 mm passage depth. The two flanking pedestal cabinets provide enclosed file or office storage. Vertical handles operate outward-opening doors with 110-degree hinge travel, allowing access beneath the desk while keeping supplies hidden. The ambient lighting requires a low-voltage driver, and the LED strip has a service life of 25000 hours. Rated loading includes 80 kg distributed across the top, 30 kg per pedestal cabinet, and 15 kg per shelf or drawer level, with a recommended user weight of 120 kg. Drawer and door slides carry a 50000-cycle target. This desk is suited to manager or director offices where documents, devices, and meeting-side discussion share one surface. It also fits high-end reception or consulting rooms, where the illuminated panel forms a decorative backdrop and the pedestals keep materials out of view. Procurement planning should account for the unbranded ED-DBL-2800-LED-RELIEF model, 165 kg net weight, 180 kg packaged gross weight, 1 cubic meter packaging volume, and a 40-minute per-set assembly reference. Shipment information includes both a two-carton and a four-carton packing reference, so delivery configuration should be confirmed before installation.

Contemporary Double-Pedestal Executive Desk with Illuminated Relief Panel Specifications
