PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 1100 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	180 kg
Static work surface load capacity	150 kg
Recommended user count	1 person
Surface abrasion resistance	2000 cycles
Edge impact resistance	10 N·m
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface substrate	18mm E0-grade particleboard
Work surface finish	Walnut wood veneer with matte PU coating
Side pedestal facade	Fluted light taupe engineered wood panels
Front modesty panel	25mm walnut-veneer MDF with accent inlay strips
Structural support frame	1.5mm thick cold-rolled steel internal frame
Cable grommet	ABS plastic recessed port
Edge banding	2mm thick matching PVC edge trim
Leveling feet	Nylon adjustable glides
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management grommet	Recessed desktop port routes power/data cables below work surface
Seated knee access	Central open bay accommodates executive office chairs with full leg extension
Floor leveling adjustment	Adjustable base glides compensate for 15mm floor unevenness
Work surface zoning	Left section for device placement, central writing zone, right section for documents
Freestanding installation	No wall mounting required, fully self-supporting on floor glides
Surface stain resistance	Matte coating resists common office liquid spills for easy cleaning
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive private office	Serves as primary workstation for C-suite and senior management
Corporate boardroom ancillary space	Functions as meeting leader desk for small in-room discussions
High-end home office	Fits luxury residential workspaces with classic modern interior design
Corporate reception executive area	Provides formal workspace for senior client-facing staff

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Applicable for dimensional and safety requirements of office work desks
EN 527-2:2016	Applicable for mechanical safety and stability requirements for office desks
EN 13722:2004	Applicable for surface resistance requirements for office furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable for general technical requirements of wooden office furniture
GB 18580-2017	Applicable for formaldehyde emission limits of wood-based panel products
GB/T 4897.3-2003	Applicable for particleboard used in furniture structural applications

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable for general technical requirements of wooden office furniture;
2. GB 18580-2017: Applicable for formaldehyde emission limits of wood-based panel products;
3. GB/T 4897.3-2003: Applicable for particleboard used in furniture structural applications;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EDK-2400-WAL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EDK-2400-WAL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EDK-2400-WALOpen Export Tool

Quick Actions

Post an RFQ

Product Description

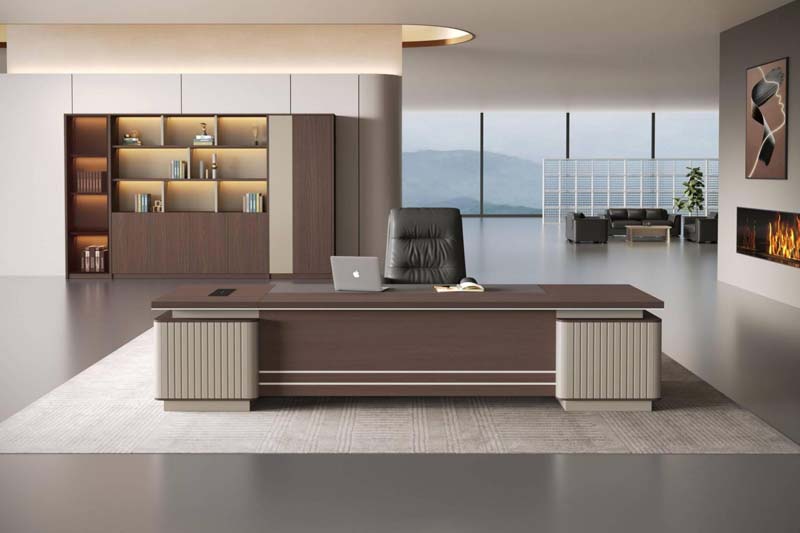

The Executive Office Desk with Modesty Panel, model EDK-2400-WAL, presents a refined modern executive aesthetic anchored by warm walnut wood tones and tailored textural contrast. Its dual-pedestal freestanding layout frames a central open knee bay, with a work surface divided into dedicated zones: a left section for device placement, a central writing area, and a right section for document organization. The front modesty panel features walnut-veneer MDF with subtle accent inlay strips, while side pedestal facades use fluted light taupe engineered wood panels to add understated visual depth, creating a polished, formal silhouette suited to premium work environments. Constructed for long-term commercial and residential use, the desk combines wood-based panel build with robust internal support. The work surface uses an E0-grade particleboard substrate topped with walnut veneer and a matte PU coating, finished with matching PVC edge trim. A cold-rolled steel internal frame forms the structural core, supported by metal hardware and nylon adjustable leveling glides. The modesty panel and primary structural panels use thick engineered wood builds, with the load-bearing work surface featuring a composite build-up for enhanced stability, paired with ABS recessed cable ports to maintain a clean surface appearance. Functional design details support productive, uncluttered work. The central open bay provides ample knee clearance to accommodate full leg extension when seated in executive office chairs, while the recessed cable grommet routes up to 10 power or data cables to an under-desk tray, keeping cords out of sight. Adjustable base glides compensate for minor floor unevenness, and the matte surface coating resists common office liquid spills for simple, quick cleaning. The desk supports a single primary user, with static load capacity suited to regular office equipment, document storage, and daily work tasks. This desk fits a range of premium spaces: it serves as the primary workstation for C-suite and senior management in private executive offices, acts as a meeting leader desk in corporate boardroom ancillary areas, provides a formal workspace for senior client-facing staff in executive reception zones, and integrates seamlessly into high-end home offices aligned with classic modern interior design. For procurement, note that the unit ships in multiple cartons, requires on-site assembly, and is designed for freestanding placement with no wall mounting needed, making it flexible for space reconfiguration as needs evolve.

Executive Office Desk with Modesty Panel Specifications
