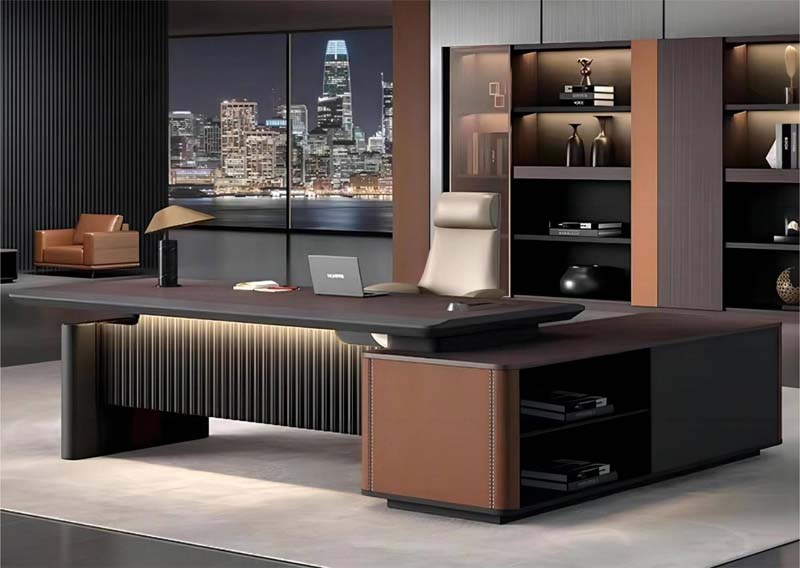

Product supplierTwo-Tone L-Shaped Executive Office Desk with Illuminated Fluted Modesty Panel and Open Side Storage, 18mm thick MDF core with wood veneer finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 1850 × 760 mm | |
|---|---|---|
| main worktop thickness | 50 mm | |
| side return shelf depth | 600 mm | |
| central seated knee clearance width | 800 mm | |
| knee clearance height under worktop | 680 mm | |
| rounded left support leg diameter | 200 mm | |
| fluted modesty panel height | 520 mm | |
| cable grommet diameter | 80 mm | |
| raised equipment platform height above main worktop | 30 mm | |
| open side shelf interior height per tier | 300 mm | |
| edge banding thickness | 2 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| main worktop static load capacity | 120 kg | |
|---|---|---|
| net product weight | 180 kg | |
| surface scratch resistance rating | 2000 cycles | |
| recommended maximum user weight for seated use | 150 kg | |
| LED strip operational lifespan | 30000 hours | |
| structural frame static load rating | 300 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| main worktop substrate | 18mm thick MDF core with wood veneer finish | |
|---|---|---|
| modesty panel slats | Matte black aluminum alloy vertical slats | |
| side return front panels | Stitched cognac brown faux leather upholstery over MDF | |
| support leg construction | Powder-coated welded steel rounded column | |
| edge banding material | 2mm thick ABS edge banding | |
| open shelf interior panels | Matte black melamine laminated engineered wood | |
| base plinth material | 1.5mm thick powder-coated steel | |
| LED lighting component | Low-voltage 3000K warm white LED strip | |
| floor protection pads | Non-marking rubber glides | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| integrated ambient LED lighting | 3000K warm white strip behind fluted modesty panel with touch dimmer control | |
|---|---|---|
| cable management system | 80mm diameter grommets with under-desk cable channel routing | |
| raised worktop equipment platform | Elevated rear section for laptop or monitor placement | |
| side return open storage | Two tier open shelves with 300mm vertical clearance per bay | |
| left column support design | Single rounded steel leg for unobstructed left knee and leg room | |
| surface protection performance | Stain and water resistant veneer finish | |
| modesty panel privacy function | Full height fluted panel blocks view of legs from office front | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| private executive office | Designed for senior management private offices with premium professional aesthetic | |
|---|---|---|
| corporate boardroom ancillary space | Suited for small meeting or breakout spaces adjacent to boardrooms | |
| luxury home office | Appropriate for high-end residential home offices with premium finish requirements | |
| single user dedicated workstation | Configured for one primary user with integrated storage and cable management | |
| high-end law or finance firm office | Fits professional services offices requiring prestigious, durable furniture |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables dimensional, safety and strength requirements for commercial use | |
|---|---|---|
| EN 13722:2004 | Furniture storage units strength and durability testing requirements | |
| EN 62471:2008 | Photobiological safety for integrated LED lighting components |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for load, stability and durability performance testing | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and corporate responsibility |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to worktop and cabinet structural stability | |
|---|---|---|
| GB/T 4897.3-2018 | Particleboard for furniture use, applicable to engineered wood substrate performance requirements | |
| GB 7000.204-2008 | Safety requirements for built-in LED lighting for furniture installations | |
| GB/T 17657-2013 | Test methods for surface wear, stain and moisture resistance of furniture panels |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and cabinet structural stability; 2. GB/T 4897.3-2018: Particleboard for furniture use, applicable to engineered wood substrate performance requirements; 3. GB 7000.204-2008: Safety requirements for built-in LED lighting for furniture installations; 4. GB/T 17657-2013: Test methods for surface wear, stain and moisture resistance of furniture panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
