Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 1010 × 760 mm | |
|---|---|---|
| desktop thickness | 60 mm | |
| edge band thickness | 3 mm | |
| central knee clearance width | 1200 mm | |
| knee clearance height | 680 mm | |
| knee clearance depth | 600 mm | |
| left storage pedestal dimensions | 800 x 650 x 620 mm | |
| right storage pedestal dimensions | 800 x 650 x 620 mm | |
| modesty panel height | 420 mm | |
| cable grommet diameter | 80 mm | |
| drawer internal height (file storage) | 280 mm | |
| adjustable floor glide height adjustment | 15 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| desktop static uniform load capacity | 160 kg | |
|---|---|---|
| drawer slide cycle durability | 50000 cycles | |
| hinge cycle durability | 80000 cycles | |
| desk net weight reference | 210 kg | |
| recommended user weight capacity | 150 kg | |
| wood finish abrasion resistance | 2000 cycles | |
| leather surface abrasion resistance | 50000 double rubs | |
| standard warranty period | 10 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| desktop substrate | 25mm E0 grade high-density MDF core | |
|---|---|---|
| desktop finish | Matte open-pore dark walnut wood veneer | |
| desktop edge trim | Solid hardwood beveled edge with matte black lacquer | |
| pedestal outer panels | Saddle brown contract-grade full-grain leather upholstery | |
| pedestal trim | Matte black powder-coated metal edge banding | |
| central modesty panel | Vertical fluted matte bronze metal slats | |
| modesty panel lighting | Warm white 3000K integrated LED strip lighting | |
| drawer slides | Full-extension soft-close ball bearing steel slides | |
| drawer internals | Felt-lined top storage drawers, steel file hanging rails | |
| leveler feet | 10mm diameter nylon-padded adjustable steel glides | |
| cable management | ABS plastic cable grommets, steel under-desk cable tray | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| storage configuration | Two integrated fixed pedestals with 3 drawers per side, including locking file drawers | |
|---|---|---|
| drawer operation | Soft-close full-extension drawer travel with 400mm slide stroke, lockable central file compartment | |
| modesty panel lighting | Integrated dimmable warm white LED ambient lighting along fluted front panel | |
| cable management | Two desk surface cable grommets routed to under-desk cable tray for wire concealment | |
| floor leveling | Adjustable glides at each pedestal base to compensate for uneven floor surfaces | |
| file storage support | Lower drawers accommodate both letter and legal size hanging file folders | |
| surface access | Concealed shallow top-access storage tray for small office supplies and writing implements | |
| finish protection | Stain and scald resistant matte veneer top coating for daily office use | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| executive private office | Designed for C-suite/CEO private office spaces, conveying premium professional status | |
|---|---|---|
| corporate headquarters setting | Suitable for high-end corporate headquarters and premium commercial office environments | |
| high-end home office | Applicable for luxury residential home office spaces for executive remote work | |

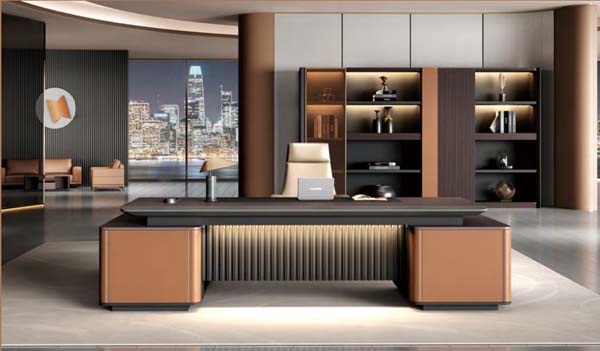

| matching office suite | Pairs with matching leather office chairs and wall-mounted display bookcases visible in render | |
| single user configuration | Sized for single executive user use with sufficient desktop space for monitors and work materials | |
| formal meeting workspace | Supports small in-office meetings across the desk for 2visiting colleagues |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables, safety and strength requirements for desk structure and load performance | |
|---|---|---|
| EN 1335-2:2018 | Office furniture seating reference for matching desk ergonomic clearance dimensions | |
| EN 15186:2012 | Furniture upholstery leather abrasion resistance test standard for leather panel durability |
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for structural load, stability, and durability performance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for drawer performance and load rating for integrated pedestals | |
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and environmental performance |
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural performance and finish quality | |
|---|---|---|
| GB/T 16799-2008 | Leather for furniture, applicable to leather-upholstered pedestal panel material performance | |
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits for substrate materials |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural performance and finish quality; 2. GB/T 16799-2008: Leather for furniture, applicable to leather-upholstered pedestal panel material performance; 3. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits for substrate materials; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
