PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user capacity	1 person
Desktop distributed working load	80 kg
Pedestal top load	40 kg
Drawer/reference storage load	30 kg
Desktop point load	25 kg
Net weight	125 kg
Recommended daily users	1 to 2 users
Structural service target	10 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop and return substrate	18 mm engineered wood board with 50 mm built-up edge and light oak melamine surface
Storage cabinet panels	18 mm light oak-grain melamine-faced engineered wood panels
Modesty panel	18 mm light gray melamine-faced panel with horizontal groove detailing
Edge banding	2 mm PVC edge banding on exposed work-surface edges
Pedestal plinth	30 mm dark gray recessed kick plate, likely PVC-faced composite or metal
Drawer slides	45 mm three-section steel ball-bearing side-mount slides with 450 mm nominal travel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage configuration	Left fixed return contains three mobile-style storage compartments, including one file-depth compartment
Cable management	80 mm desktop port feeds cables behind the modesty panel and toward the rear wall clearance
Seated work position	Center knee bay provides 900 mm width, 650 mm depth, and 650 mm height for an executive chair
Privacy screening	Rear modesty panel shields the under-desk zone and visually separates the user from behind

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Largest carton dimensions	2250 x 950 x 160 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Suits a manager or director office where the 2200 mm top and side return support computing, paperwork, and short meetings

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-LO-2200-LR

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-LO-2200-LR

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-LO-2200-LROpen Export Tool

Quick Actions

Post an RFQ

Product Description

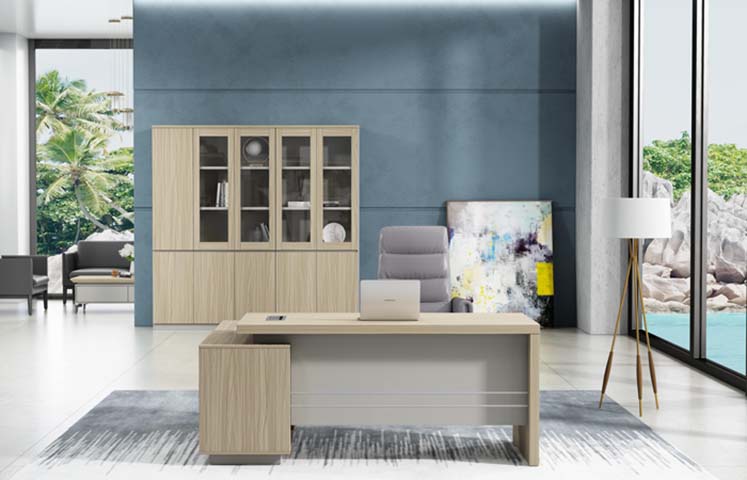

The Light Oak Executive Desk with Left Storage Return is a modern L-shaped workstation designed for focused individual work with integrated side support. Its light oak-grain finish gives the desk a warm, professional appearance, while the light gray rear modesty panel introduces a restrained contrast and horizontal groove detailing. The layout combines a broad main work surface with a fixed left return, creating a clear executive work zone with storage within easy reach. The central knee bay keeps the primary seating position open, and the rear panel screens the under-desk area from view. Panel construction contributes to the clean, linear look, with a substantial built-up desktop edge and a recessed dark gray plinth grounding the storage pedestal visually. The desktop and return are made from 18 mm engineered wood board with a light oak melamine surface and a 50 mm built-up edge. Exposed work-surface edges use 2 mm PVC edge banding, while storage cabinet panels are formed from 18 mm light oak-grain melamine-faced engineered wood. The modesty panel is an 18 mm light gray melamine-faced panel. The support section uses an 80 mm main section with a 2 mm metal wall, and the drawers run on 45 mm three-section steel ball-bearing side-mount slides with 450 mm nominal travel. A 30 mm dark gray recessed kick plate finishes the pedestal base. Functionally, the left fixed return contains three mobile-style storage compartments, including one file-depth compartment suited to office paperwork and personal or operational storage. The desk is rated for one primary user, while the reference figure allows up to two daily users. Load guidance supports an 80 kg distributed desktop working load, a 25 kg desktop point load, a 40 kg pedestal top load, and a 30 kg drawer or reference storage load. The 80 mm cable opening directs cables behind the modesty panel and toward the rear wall clearance, supported by a cable tray with 120 mm depth. The main seat position offers 900 mm width, 650 mm depth, and 650 mm height, with listed effective knee clearance of 680 mm high and 900 mm wide. This workstation is best suited to a private executive, manager, or director office. Its 2200 mm top and side return provide space for computing, paperwork, and short in-room discussions, and it can also fit premium home offices where a coordinated, desk-and-storage layout is preferred. Procurement planning should account for a 125 kg net product weight, multi-carton delivery, and assembly time referenced at 40 minutes per set. Packaging details vary in the supplied records, including a two-carton set reference and separate freight information listing four cartons, 180 kg packaged gross weight, and 1 cubic meter per set, so shipment configuration should be confirmed before ordering. Access, floor protection, and placement should be planned in advance, particularly for upper-floor or corridor-restricted installations.

Light Oak Executive Desk with Left Storage Return Specifications
