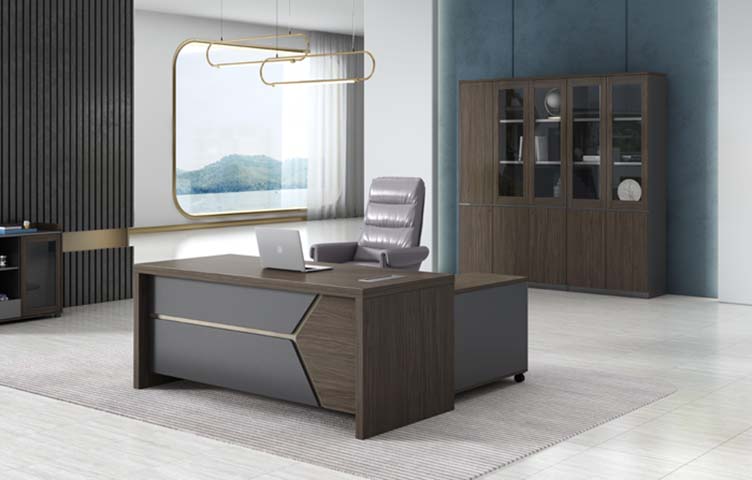

Product supplierExecutive Office Desk with Mobile Side Return, 50 mm particleboard core with wood-grain melamine face and 2 mm matching PVC edge band
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop distributed load capacity | 120 kg | |
|---|---|---|
| Desktop distributed static load | 120 kg | |
| Concentrated desktop point load | 40 kg at 200 x 200 mm | |
| Side return distributed static load | 60 kg | |
| Drawer slide load rating | 35 kg per drawer | |
| Drawer slide durability | 50,000 open/close cycles | |
| Door hinge durability | 100,000 open/close cycles | |
| Caster load rating | 40 kg per caster | |
| Caster mobility resistance | Smooth movement under 120 kg total cabinet load on level hard floors | |
| Worktop surface impact resistance | 30 N drop-weight acceptance without through-surface fracture |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop | 50 mm particleboard core with wood-grain melamine face and 2 mm matching PVC edge band | |
|---|---|---|
| Front modesty panel | 25 mm E1-class particleboard substrate with matte grey lacquered or melamine face | |
| Side support panels | 25 mm wood-grain melamine-faced panel with sealed exposed edges | |
| Mobile return cabinet | 25 mm composite wood panels with grey side faces and wood-grain top/border | |
| Decorative inlay | 20 mm bronze-effect aluminum or ABS trim recessed into front panel | |
| Internal drawer boxes | 18 mm melamine-faced particleboard or MDF with metal slide rails |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| L-shaped work layout | Main 2000 mm desk and 1400 mm return form a left/right handed executive workstation with 600 mm seated knee clearance | |
|---|---|---|
| Mobile side storage | Return moves on four 50 mm swivel casters and supports 120 kg total cabinet load, with two braked wheels | |
| Drawer storage | Three full-extension drawers provide 35 kg load capacity each and 50,000-cycle slides | |
| Cable management | One 80 mm desktop grommet routes laptop and monitor cables to a 10 kg under-top cable tray |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office | Supports a director or manager using a laptop, documents, and monitor at a 750 mm seated work height with mobile reference storage beside the desk. | |
|---|---|---|
| Open-plan management pod | Mobile return allows the 2400 x 1950 mm footprint to be repositioned during floor-plan changes without lifting the main pedestal. |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
