PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 1000 × 1180 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight range	155 kg; published value 155 kg
Maximum dynamic lifting load	120 kg
Static desktop load	180 kg
Side cabinet top load	50 kg
Drawer/shelf uniform load	25 kg per storage level
Seating capacity	1 user
Adjustment cycle target	10,000 up/down cycles
Lifting speed	35 mm/s
Stability lateral sway target	20 mm at full height
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	Dark matte wood-based panel with 50 mm thick edge banding
Lifting columns	Powder-coated steel telescopic columns, 80 mm outer section
Storage cabinet	Charcoal wood-based cabinet body with segmented flat front faces
Left support base	Rounded charcoal panel base with vertical fluted front detailing
Modesty panel	Dark soft-covered or fabric-look privacy panel with shaped lower edge
Support frame	Steel underside rails and vertical posts connecting top to both bases

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Electric height adjustment	Telescopic lift changes the complete desktop between 720 mm and 1180 mm for seated and standing work
Cable management	Rear recessed port routes power, network, and monitor cables through the worktop
Privacy screening	Central modesty panel shields the seated user's leg area without blocking side storage
Integrated storage support	Right floor-standing cabinet stabilizes the desk and provides enclosed under-surface storage

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Main carton dimensions	2480 x 1080 x 160 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suitable for a manager office where one user needs sit-stand work, privacy screening, and integrated storage
Managerial workstation	Appropriate for laptop, monitor, telephone, and document tasks with rear cable routing and concealed under-desk storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-HA-2400-DK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-HA-2400-DK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-HA-2400-DKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

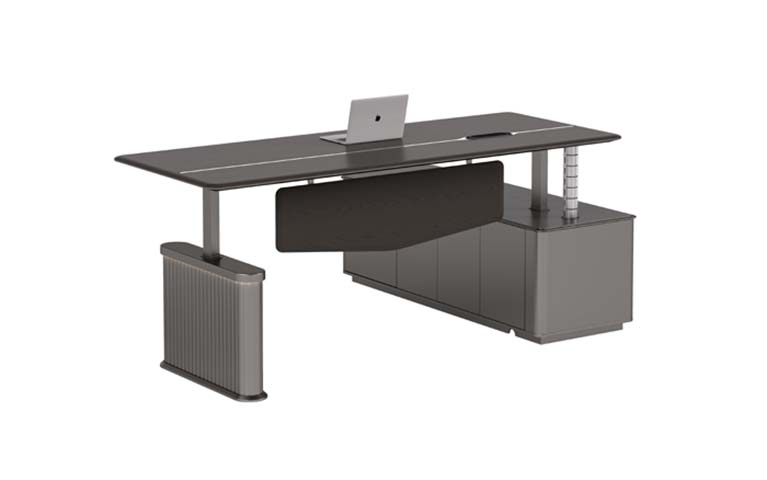

The Dark Height-Adjustable Executive Desk with Side Storage Cabinet, model ED-HA-2400-DK, presents a substantial executive silhouette with a broad dark matte worktop, charcoal storage, and a coordinated side support layout. Its segmented flat-front cabinet sits to the right, while the left support uses a rounded charcoal panel base with vertical fluted front detailing. A central dark fabric-look modesty panel with a shaped lower edge provides privacy under the desk, and powder-coated steel telescopic columns give the design a structured commercial appearance. The overall desk measures 2400 x 1000 x 1180 mm, with a 50 mm thick edge-banded wood-based worktop and effective knee clearance of 680 mm high and 900 mm wide for the main seat. Its unbranded format makes it suitable for projects where a consistent dark interior scheme is preferred over visible manufacturer labeling. Construction combines a dark wood-based top, charcoal wood-based cabinetry, steel underside rails and vertical posts, and steel lifting columns with an 80 mm main section and 2 mm metal wall. The right floor-standing cabinet helps stabilize the desk and provides enclosed under-surface storage, while the support frame connects the top to both bases. The desk weighs 155 kg net and is supplied as a set; reference packaging information indicates a 180 kg packaged gross weight, 1 cubic meter per set, and four cartons, including a separately packed return or pedestal. A reference assembly time of 40 minutes per set should be planned around site access and installation resources. Electric telescopic adjustment moves the complete desktop from 720 mm to 1180 mm, allowing the single user to switch between seated and standing tasks. The system is rated for a 120 kg maximum dynamic lifting load, an 180 kg static desktop load, a 50 kg side cabinet top load, and 25 kg uniform load per drawer or shelf level, with a target adjustment cycle life of 10,000 up/down cycles. A rear recessed 80 mm diameter cable opening routes power, network, and monitor cables through the worktop, supported by a cable tray with 120 mm depth. The central privacy panel shields the user’s leg area without obstructing access to the side storage. This desk is well suited to a manager office or managerial workstation used for laptop, monitor, telephone, and document work. It is particularly appropriate where one user needs sit-stand adjustment, rear cable management, privacy screening, and concealed storage in a single coordinated installation. Procurement teams should verify delivery access for the large 2500 x 1050 x 350 mm top package, confirm assembly provision, and match intended equipment weight with the stated load limits.

Dark Height-Adjustable Executive Desk with Side Storage Cabinet Specifications
