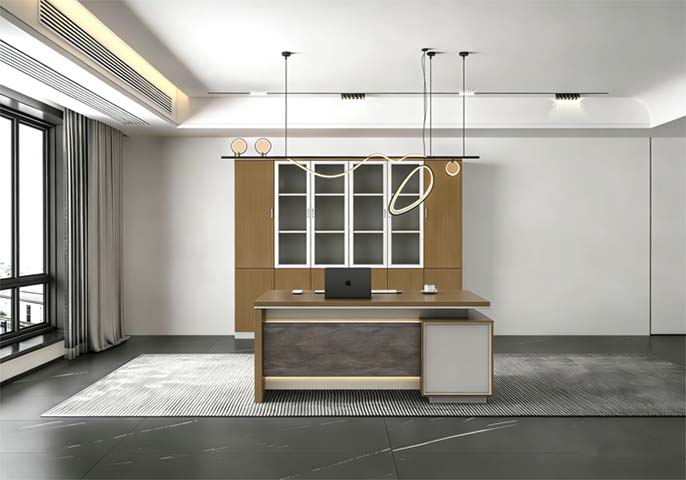

Executive Desk with Right Storage Pedestal and Wall Hutch Cabinet (model ED-WALNUT-2400-RP-HUTCH) is listed under CEO Executive Desk. Dimensions: 2400 × 1800 × 750 mm. Materials: 25 mm wood-composite substrate with a 50 mm finished edge profile and walnut-grain melamine surface. Load capacity: 100 kg. Product Features: modern,executive,style,right-return,pedestal,wall,hutch,storage,wood-grain,finish,enclosed,glass,cabinet. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | XIANGSHI | Model | ED-WALNUT-2400-RP-HUTCH |
| Overall dimensions (W × D × H) | 2400 × 1800 × 750 mm | Finished Top Thickness | 50 mm |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | Leg / Support Section | 80 mm main section with 2 mm metal wall |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm | Total product net weight | 210 kg |
| Main desktop distributed load | 100 kg | Pedestal top load | 60 kg |
| Drawer and shelf per-level load | 25 kg | Single-user work capacity | 1 person |
| Hutch file and display capacity | 12 compartments | Panel-board density for weight takeoff | 680 kg/m3 |
| Edge impact service target | 45 kg drop at 100 mm, 10 cycles | Hardware cyclic service target | 50,000 drawer and door cycles |
| Top Static Load Reference | 150 kg uniformly distributed | Desktop substrate and finish | 25 mm wood-composite substrate with a 50 mm finished edge profile and walnut-grain melamine surface |
| Edge banding and trim | 2 mm PVC edge banding with bronze or champagne metallic accent strips | Modesty panel | 25 mm matte dark-grey wood-composite panel with a smooth stone-look laminate face |
| Right pedestal construction | 25 mm light-grey melamine cabinet box with a matching wood-grain top and recessed plinth | Wall hutch cabinet body | 18 mm walnut-grain melamine panels with white aluminum-framed tempered-glass doors |
| Hardware and supports | Metal vertical cabinet handles, concealed hinges, adjustable leveling feet and rectangular panel legs | Executive work layout | L-shaped desktop provides a 2400 mm main work zone and a 900 mm right return for printer, documents or visitor-side consultation. |
| Storage configuration | Right pedestal supports enclosed office storage while the wall hutch provides solid side cabinets and a 12-compartment glazed display section. | Cable management provision | Desktop grommet and rear cable channel should be specified at 60 mm diameter to support the visible laptop, keyboard and desk-lamp power layout. |
| Installation method | Flat-panel knock-down assembly using cam-fix connectors, hinges, adjustable feet and wall anchoring for the tall hutch unit. | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Executive office | Suits a private manager office where the L-shaped worktop supports computer work, signing documents and side-return printing or filing. | Premium meeting or consultation room | Pairs with visitor seating for brief consultations, while the full-wall hutch displays credentials, books and secured office materials. |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 1800 × 750 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product net weight | 210 kg | |
|---|---|---|
| Main desktop distributed load | 100 kg | |
| Pedestal top load | 60 kg | |
| Drawer and shelf per-level load | 25 kg | |
| Single-user work capacity | 1 person | |
| Hutch file and display capacity | 12 compartments | |
| Panel-board density for weight takeoff | 680 kg/m3 | |
| Edge impact service target | 45 kg drop at 100 mm, 10 cycles | |
| Hardware cyclic service target | 50,000 drawer and door cycles | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate and finish | 25 mm wood-composite substrate with a 50 mm finished edge profile and walnut-grain melamine surface | |
|---|---|---|
| Edge banding and trim | 2 mm PVC edge banding with bronze or champagne metallic accent strips | |
| Modesty panel | 25 mm matte dark-grey wood-composite panel with a smooth stone-look laminate face | |
| Right pedestal construction | 25 mm light-grey melamine cabinet box with a matching wood-grain top and recessed plinth | |
| Wall hutch cabinet body | 18 mm walnut-grain melamine panels with white aluminum-framed tempered-glass doors | |
| Hardware and supports | Metal vertical cabinet handles, concealed hinges, adjustable leveling feet and rectangular panel legs |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Executive work layout | L-shaped desktop provides a 2400 mm main work zone and a 900 mm right return for printer, documents or visitor-side consultation. | |
|---|---|---|
| Storage configuration | Right pedestal supports enclosed office storage while the wall hutch provides solid side cabinets and a 12-compartment glazed display section. | |
| Cable management provision | Desktop grommet and rear cable channel should be specified at 60 mm diameter to support the visible laptop, keyboard and desk-lamp power layout. | |
| Installation method | Flat-panel knock-down assembly using cam-fix connectors, hinges, adjustable feet and wall anchoring for the tall hutch unit. |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office | Suits a private manager office where the L-shaped worktop supports computer work, signing documents and side-return printing or filing. | |
|---|---|---|
| Premium meeting or consultation room | Pairs with visitor seating for brief consultations, while the full-wall hutch displays credentials, books and secured office materials. |
EU Market Access Requirements* EN Standards
| EN 527-1 office desk suitability | Apply safety, dimensional and structural requirements for office work surfaces before purchase acceptance. | |
|---|---|---|
| EN 527-2 mechanical safety recommendation | Specify desk strength, durability and stability tests for the desktop, legs and storage-supported return. | |
| EN 16121 storage furniture recommendation | Use strength, durability and stability requirements for the tall wall hutch and pedestal cabinet. | |
| EN 16122 storage test method recommendation | Use as the laboratory method for shelf, door, drawer and structural loading verification. | |
| EN 13986 panel material recommendation | Specify wood-based panel performance, dimensional characteristics and conformity documentation. |
Standards applicable to China-market projects
| GB/T 3324 dimensional and structural suitability | Applicable procurement reference for wooden office furniture dimensions, tolerances and workmanship inspection. | |
|---|---|---|
| GB/T 3325 metal furniture fitment suitability | Applicable where metal handles, supports, trim or pedestal hardware are included in the final BOM. | |
| GB 18584 emission test recommendation | Specify interior-decoration wood-furniture formaldehyde emission limits as a factory acceptance item. | |
| GB/T 10357.6 structural strength recommendation | Use wooden furniture cabinet static-load and stability tests for the hutch shelves and tall storage body. | |
| GB/T 4893 surface durability recommendation | Use resistance tests for wear, dry heat, pollution and impact on melamine desktop and cabinet surfaces. |
This product must meet the following technical requirements: 1. GB/T 3324 dimensional and structural suitability: Applicable procurement reference for wooden office furniture dimensions, tolerances and workmanship inspection.; 2. GB/T 3325 metal furniture fitment suitability: Applicable where metal handles, supports, trim or pedestal hardware are included in the final BOM.; 3. GB 18584 emission test recommendation: Specify interior-decoration wood-furniture formaldehyde emission limits as a factory acceptance item.; 4. GB/T 10357.6 structural strength recommendation: Use wooden furniture cabinet static-load and stability tests for the hutch shelves and tall storage body.; 5. GB/T 4893 surface durability recommendation: Use resistance tests for wear, dry heat, pollution and impact on melamine desktop and cabinet surfaces.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
