PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3200 × 2400 × 760 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total desk net weight	280 kg
Desk top uniform static load capacity	150 kg
Recommended maximum user weight for seated use	150 kg
Surface abrasion resistance rating	2000 cycles
Edge impact resistance rating	30 N
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desk top substrate	18mm thick high-density particleboard
Desk top finish	Light oak woodgrain melamine laminate with matte texture
Storage cabinet exterior	Warm light grey matte PET laminate finish
Desk base support frame	1.2mm thick rectangular steel tube with powder coating
Modesty panel substrate	18mm thick medium-density fiberboard
Edge banding	2mm thick matching color PVC edge trim
Hardware components	Cold-rolled steel drawer slides and cabinet hinges
Leveling feet	15mm diameter nylon adjustable glides
Backwall shelf panels	25mm thick melamine-faced particleboard
Backwall LED strip channel	Aluminum extrusion with diffused polycarbonate cover
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Left storage cabinet configuration	2 lockable file drawers and 1 stationery drawer, full extension slides
Right storage cabinet configuration	1 lockable cabinet door with adjustable interior shelf
Cable management system	1 desktop grommet and under-desk cable routing channel
Desk height adjustment	Fixed 760mm work surface height, no electric lift mechanism
Backwall storage layout	8 open display shelves, 4 closed upper cabinet doors, integrated LED strip lighting
Leveling adjustment	10mm vertical adjustment range per foot for uneven office flooring
Modesty panel function	Full front coverage to block under-desk view from seated visitor perspective
Work surface layout	Left main work zone, right visitor/auxiliary work zone across L-shaped configuration
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive private office	Primary use for senior management, provides large work surface and dedicated document storage
Corporate boardroom auxiliary station	Serves as a presenter or meeting host work surface adjacent to conference seating
High-end home office	Suitable for residential executive workspaces with matching storage wall system
Corporate reception manager office	Provides professional impression for visitor meetings with visible front modesty panel
Recommended matching furniture	Pair with high-back executive chair, 3-seat visitor sofa and matching backwall bookshelf
Maximum occupancy	1 primary seated user plus 2 visitor seating positions across the desk width

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office desk safety standard	EN 527:2011
Office storage cabinet standard	EN 14073:2004
Surface durability standard	EN 12721:2009
Furniture formaldehyde emission standard	EN 13986:2004+A1:2015

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Desk load test standard	ANSI/BIFMA X2021
Storage cabinet test standard	ANSI/BIFMA X2019
Office furniture stability standard	ANSI/BIFMA X2017

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Desk surface dimension standard	GB/T 3326
Surface material performance standard	GB/T 17657
Furniture formaldehyde emission standard	GB 18580
Hardware durability standard	GB/T 10357.5

Standardized tender description text

This product must meet the following technical requirements:
1. Desk surface dimension standard: GB/T 3326;
2. Surface material performance standard: GB/T 17657;
3. Furniture formaldehyde emission standard: GB 18580;
4. Hardware durability standard: GB/T 10357.5;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXD-L3200-LGT-WB

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXD-L3200-LGT-WB

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXD-L3200-LGT-WBOpen Export Tool

Quick Actions

Post an RFQ

Product Description

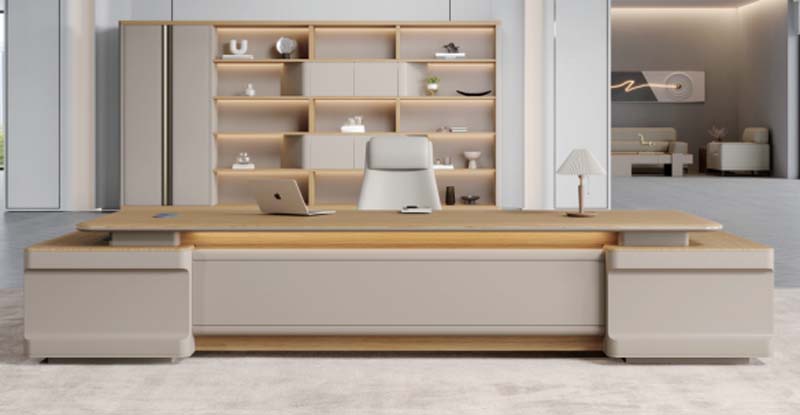

This large L-shaped executive office desk, model EXD-L3200-LGT-WB, presents a polished modern executive aesthetic defined by clean, structured lines and a coordinated integrated storage layout. Its light oak woodgrain matte desktop pairs seamlessly with matte warm grey storage cabinetry, accented by refined aluminum hardware, with a matching integrated backwall unit that combines open display space and closed storage topped with built-in LED strip lighting. The L-configuration creates a spacious, segmented work zone while maintaining a streamlined, cohesive visual profile suitable for professional settings. Built for long-term commercial use, the desk is constructed from durable melamine-faced engineered wood. The 50mm thick desktop features an 18mm high-density particleboard substrate, finished in scratch-resistant light oak melamine, with 2mm color-matched PVC edge trim to guard against daily impact. Storage components feature a warm light grey matte PET laminate exterior, while the support frame uses 1.2mm powder-coated rectangular steel tube for stable, rigid support. Cold-rolled steel hardware powers full-extension drawer slides and cabinet hinges, and 15mm diameter nylon adjustable leveling feet deliver 10mm of vertical adjustment to accommodate uneven flooring. A full modesty panel made from 18mm medium-density fiberboard blocks under-desk visibility from visitor sightlines. Functionality is tailored to executive work needs: left-side storage holds two lockable file drawers and one stationery drawer on full-extension slides, while the right-side unit includes one lockable cabinet with an adjustable interior shelf. The integrated backwall provides eight open display shelves, four closed upper cabinets, and integrated LED lighting. An 80mm diameter desktop grommet paired with a 120mm deep under-desk cable tray keeps wiring organized, and the fixed 760mm work surface offers 680mm of vertical knee clearance and 900mm of width for the main seat. The desktop supports 150kg of uniformly distributed static load, while drawer slides are rated for 45kg per pair. The desk supports one primary seated user and two visitor positions across its width. This desk is ideal for senior management private offices, corporate boardroom presenter stations, high-end home executive workspaces, and reception manager offices, where its polished profile creates a professional impression for visitor meetings. It pairs cohesively with high-back executive chairs, 3-seat visitor sofas, and its matching backwall bookshelf for a fully coordinated space. For procurement, note that each unit ships across multiple cartons, requires 40 minutes of assembly time, and has no electric height adjustment mechanism; coordinate delivery and on-site installation support to align with office furnishing timelines.

Large L-Shaped Executive Office Desk with Integrated Storage and LED Backwall Bookshelf Specifications
