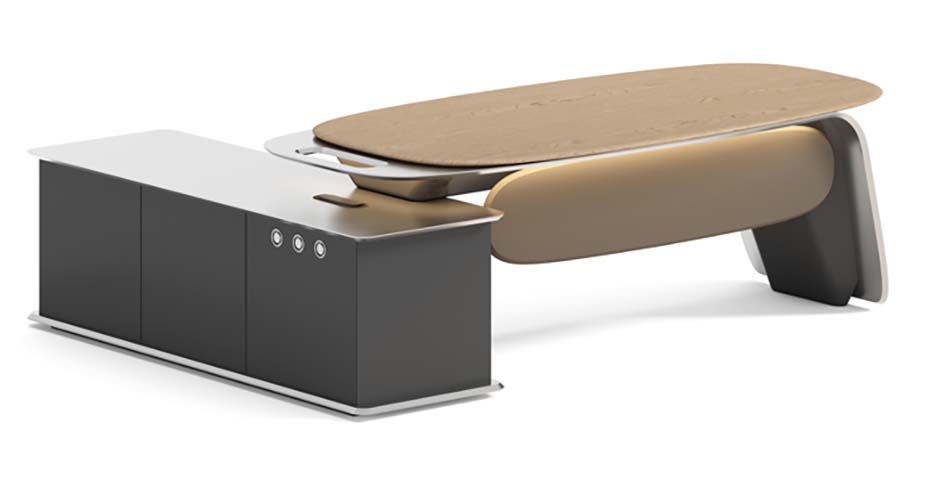

Product supplierHeight-Adjustable Executive Desk with Integrated Storage Credenza, 38 mm wood-grain high-pressure laminate board with rounded edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 1800 × 1200 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 100 kg | |
|---|---|---|
| Storage credenza top load | 40 kg | |
| Drawer or shelf per-bay load | 25 kg | |
| Net weight | 145 kg | |
| Lifting speed | 38 mm/s | |
| Height adjustment positions | 3 stored positions | |
| Duty cycle | 10 percent operating time, maximum 2 minutes continuous | |
| Recommended user capacity | 1 person | |
| Anti-collision reaction target | Stop and reverse within 30 mm of resistance | |
| Top Static Load Reference | 150 kg uniformly distributed |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 38 mm wood-grain high-pressure laminate board with rounded edge banding | |
|---|---|---|
| Storage cabinet | Matte charcoal melamine-faced particleboard or MDF case, 18 mm front panels | |
| Credenza top | Smoked bronze-tinted glass or matte laminate shelf with polished silver edge | |
| Privacy panel | Taupe upholstered panel over rigid board with 30 mm soft padding | |
| Lifting and side supports | Powder-coated dark gray steel column and sculpted steel end leg with silver outer trim | |
| Hardware and cable fittings | Steel ball-bearing slides, three-button controller, plastic cable grommet and adjustable glides |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Electric height adjustment | Motorized desktop moves between 720 mm and 1200 mm through a 480 mm stroke for seated and standing work | |
|---|---|---|
| Memory controller | Three-button panel provides three user height presets and continuous up-down operation | |
| Integrated storage | Three front-access bays provide filing, stationery and personal storage beside the knee opening | |
| Cable management | Desk grommet, under-top cable channel and credenza pass-through route monitor and power cables |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total carton gross weight | 165 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive or management office | Provides one seated-to-standing workstation plus side storage for a private office with meeting-side presentation space | |
|---|---|---|
| Hybrid workstation and credenza zone | Suits laptop, monitor, documents and personal storage while preserving a clear knee bay and cable route |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Use for office desk safety, strength and durability design requirements | |
|---|---|---|
| EN 527-2:2002 | Use for dimensional, safety and functional verification of office work surfaces | |
| EN 1730:2000 | Applicable standards and test results require confirmation |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Use for desk static load, fatigue, stability and dimensional acceptance tests | |
|---|---|---|
| BIFMA E3-2023 level | Use as an optional multi-attribute sustainability verification framework, including material and energy criteria |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3326-2016 | Use this standard for desk dimensional measurement and published size verification | |
|---|---|---|
| GB/T 3327-2018 | Use for desk mechanical stability, strength and durability acceptance testing |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3326-2016: Use this standard for desk dimensional measurement and published size verification; 2. GB/T 3327-2018: Use for desk mechanical stability, strength and durability acceptance testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
