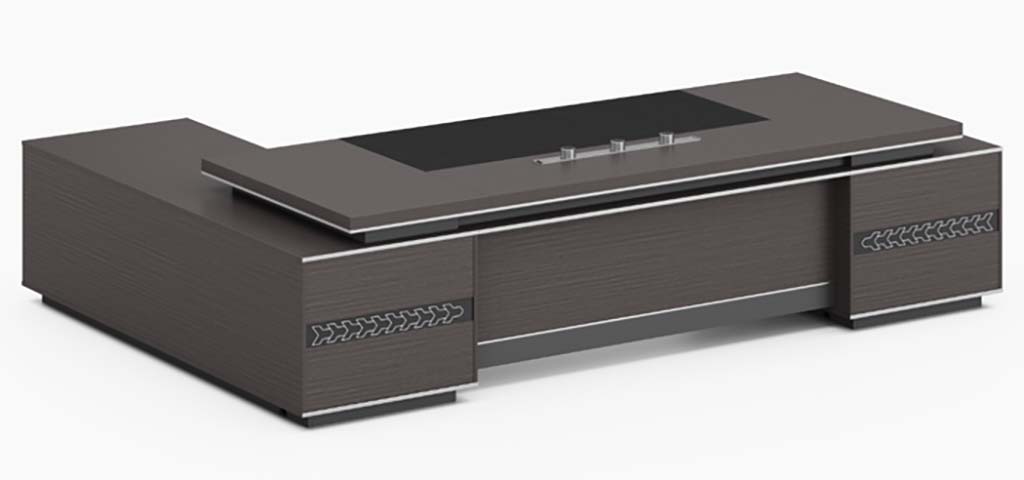

Dark Grey L-Shaped Executive Office Desk with Integrated Storage (model LSH-EXEC-DG-2260) is listed under CEO Executive Desk, with overall dimensions of 2260 × 1780 × 760 mm and main material of Particle‑board (PB). Load capacity: 68 kg. Certifications: modern,style,L-shaped,layout,plinth,base,drawer,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2260 x 1780 x 760 mm | |
|---|---|---|
| Desktop panel thickness | 25 mm | |
| Edge band thickness | 2 mm | |
| Main desktop width | 1800 mm | |
| Main desktop depth | 800 mm | |
| Side return length | 1200 mm | |
| Side return depth | 600 mm | |
| Seated knee clearance height | 660 mm | |
| Knee clearance depth | 500 mm | |
| Plinth base height | 100 mm | |
| Drawer front height | 180 mm | |
| Inset control panel size | 800 x 300 mm | |
| Cable grommet diameter | 60 mm | |
| Decorative trim width | 10 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Assembled product weight | 82 kg | |
|---|---|---|
| Desktop static load capacity | 68 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Hinge cycle rating | 100000 cycles | |
| Cable tray static load | 5 kg | |
| Recommended user weight for seated use | 136 kg | |
| Finish abrasion resistance | 2000 cycles | |
| Surface heat resistance | 120 °C | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop and cabinet body | 25mm P2-grade engineered wood with dark grey woodgrain laminate | |
|---|---|---|
| Edge trim | Polished silver PVC/ABS linear edge banding | |
| Drawer fronts | Engineered wood with etched chevron decorative inlay panels | |
| Plinth base | Black impact-resistant PVC base with small leveling feet | |
| Inset control panel | Black matte laminated recessed panel with metal control dials | |
| Drawer slides and hardware | Zinc-plated steel ball-bearing full-extension slides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | 2 end utility drawers, 1 central closed storage compartment with soft-close slides | |
|---|---|---|
| Integrated control panel | Recessed desktop panel with 3 metal adjustment dials and 1 connectivity port | |
| Cable management | Concealed under-desk routing channels and 60mm desktop grommet for wire organization | |
| Leveling adjustment | Small adjustable feet on plinth base for uneven floor compensation |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Suitable for C-suite and management private offices with L-shaped workflow layout | |
|---|---|---|
| Home office workspace | Appropriate for dedicated home executive workspaces requiring integrated storage |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables and desks - Part 1: Dimensions, applicable for seated work surface sizing | |
|---|---|---|
| EN 527-2:2016 | Office work tables and desks - Part 2: Mechanical safety requirements, structural stability verification | |
| EN 13722:2004 | Furniture - strength and durability of storage units, drawer and cabinet performance verification |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products - safety and performance standard for commercial office desks | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage Units - performance standard for integrated drawer and cabinet storage |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for desk structural performance | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for engineered wood panel structural grade | |
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of harmful substances for wood furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for desk structural performance; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable for engineered wood panel structural grade; 3. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances for wood furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
