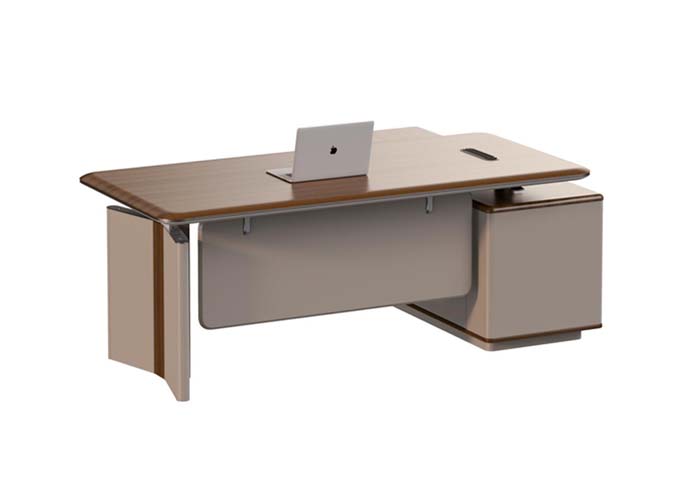

Product supplierL-Shaped Executive Office Desk with Integrated Side Pedestal and Cable Grommet, Engineered wood with walnut wood grain laminate, matte finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2000 x 1800 x 750 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 150 kg | |
|---|---|---|
| Net product weight | 115 kg | |
| Recommended seated user capacity | 1 person | |
| Surface abrasion resistance | 2000 cycles | |
| Edge impact resistance | 10 J | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop surface | Engineered wood with walnut wood grain laminate, matte finish | |
|---|---|---|
| Modesty panel and pedestal body | Medium density fiberboard with matte warm taupe paint finish | |
| Edge trim | PVC edge banding matching walnut wood tone with rounded profile | |
| Support brackets | Powder-coated die-cast metal corner brackets | |
| Cable grommet | Black ABS plastic recessed cable slot | |
| Pedestal plinth | Engineered wood with matching taupe paint and walnut trim strip |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Recessed desktop cable grommet routes power and data cables from work surface to under-desk area | |
|---|---|---|
| Modesty panel privacy | Suspended front modesty panel blocks view of under-desk leg area from front approach | |
| Integrated storage support | Fixed side pedestal provides structural support for return work surface and enclosed storage space | |
| Stable dual-support structure | Solid left vertical support and right pedestal base eliminate wobble during regular office use |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Suitable for senior management offices, providing generous work surface and professional aesthetic | |
|---|---|---|
| Open office manager workstation | Can be deployed as a dedicated manager station in open plan offices, with integrated storage for documents |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable for structural performance validation | |
|---|---|---|
| EN 527-2:2016 | Office work tables dimensional requirements for seated workstations, applicable for ergonomic clearance checks | |
| EN 13722:2004 | Furniture surface performance requirements for office desks, applicable for finish durability testing |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel structural integrity and finish quality | |
|---|---|---|
| GB/T 3327-2017 | Performance requirements for office desks, applicable for desk load capacity and dimensional stability | |
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable for formaldehyde emission verification |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel structural integrity and finish quality; 2. GB/T 3327-2017: Performance requirements for office desks, applicable for desk load capacity and dimensional stability; 3. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for formaldehyde emission verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
