PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 1800 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop uniform load capacity	80 kg
Concentrated monitor-and-equipment load	40 kg
Adjustable shelf load per shelf	20 kg
Product net weight	135 kg
Seating capacity	1 person
Storage bay capacity	4 front bays
Door and hinge durability target	100000 opening cycles
Warranty duration	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop construction	Wood-grain melamine-faced particleboard or MDF substrate, 50 mm nominal thickness, with rounded front edge
Credenza panels	Dark grey melamine-faced engineered board with straight edge banding and matching side panels
End support	Black rigid panel support finished in matte dark laminate or painted board
Outer end panel	Oak-tone laminate curved side panel with matching wood-grain face and edge
Privacy panel	Taupe or greige laminated modesty panel fixed below the rear work surface
Cabinet hardware	Three 35 mm circular metal-front fittings, concealed hinges or locks, and recessed plinth trim

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Principal work surface	2000 x 900 mm executive top supports a monitor, laptop, writing area, and task lighting while retaining 750 mm seated height
Integrated side storage	1800 mm credenza provides four front storage bays for files, CPU equipment, stationery, or concealed shelving
Cable management	160 x 80 mm desktop grommet routes monitor and power cables into the rear modesty-panel zone
Seated leg clearance	900 mm wide central knee opening gives one-person access between the credenza and right support

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packed volume	0.72 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Suits director or manager offices where a 2400 mm L-shaped worktop and 1800 mm concealed credenza support computer work and file storage
Administrative or consultancy workstation	Supports dual monitors, paperwork, printer storage, and visitor consultation across the side surface

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 office desk safety and dimensions	Applicable standards and test results require confirmation
EN 527-2 mechanical safety requirements	Recommended strength and durability acceptance basis for the office work surface
EN 16139 contract seating does not apply	Excluded because the product is a desk and storage system rather than seating
EN 14073-2 storage furniture safety	Recommended reference for the fixed office storage credenza and its doors or shelves
EN 14073-3 storage stability and strength	Recommended test basis for loaded shelves, doors, and anti-tip stability

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5 desk and table products	Recommended commercial desk performance reference for load, stability, and durability tests
BIFMA E1 level furniture sustainability	Optional procurement criterion if low-emission materials and recycled content are required
ANSI/BIFMA X5.9 storage units	Recommended performance reference for the integrated credenza doors, shelves, locks, and stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimensional and structural acceptance	Applicable procurement reference for wooden office furniture dimensions, tolerances, and workmanship
GB/T 3325 metallic furniture acceptance	Applicable if metal hinges, supports, plates, or frame components are supplied
GB 18580 formaldehyde control	Recommended acceptance basis for engineered-wood substrate emission documentation
GB/T 10357 furniture structural testing	Recommended desk and cabinet strength, stability, and durability test reference
GB/T 28204 hardware acceptance	Applicable specification reference for drawer slides, hinges, locks, and connecting hardware

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimensional and structural acceptance: Applicable procurement reference for wooden office furniture dimensions, tolerances, and workmanship;
2. GB/T 3325 metallic furniture acceptance: Applicable if metal hinges, supports, plates, or frame components are supplied;
3. GB 18580 formaldehyde control: Recommended acceptance basis for engineered-wood substrate emission documentation;
4. GB/T 10357 furniture structural testing: Recommended desk and cabinet strength, stability, and durability test reference;
5. GB/T 28204 hardware acceptance: Applicable specification reference for drawer slides, hinges, locks, and connecting hardware;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EDU-L2400-EXEC-CREDENZA

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EDU-L2400-EXEC-CREDENZA

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EDU-L2400-EXEC-CREDENZAOpen Export Tool

Quick Actions

Post an RFQ

Product Description

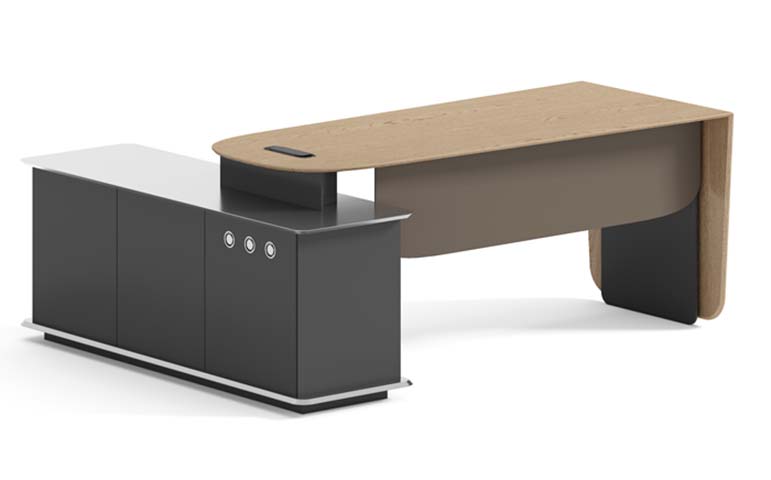

The EDU-L2400-EXEC-CREDENZA is an unbranded executive L-shaped office desk designed for single-user work that combines a substantial main work surface with full side storage. Its modern, two-tone presentation pairs a wood-grain worktop and matching curved outer end panel with dark grey laminated credenza panels, a black support panel, and a taupe or greige modesty panel set beneath the rear work surface. The rounded front edge softens the substantial executive top, while straight edge banding, recessed plinth trim, and the curved oak-tone end panel give the layout a structured commercial appearance. The workstation is arranged around a 2000 by 900 mm principal top, with an L-shaped 2400 mm overall worktop configuration and an 1800 mm side credenza. The central knee opening provides 900 mm of width between the credenza and right support, with 680 mm of clearance height at the main seat, supporting a comfortable seated position at the listed 750 mm working height. Four front storage bays run through the credenza, offering space for files, CPU equipment, stationery, and concealed shelving. Adjustable shelves are included for flexible storage, while concealed hinges or locks and circular metal-front fittings preserve the clean exterior. Construction uses a 50 mm wood-grain melamine-faced particleboard or MDF desktop, dark grey melamine-faced engineered board for the storage cabinetry, and a rigid black end support finished in matte dark laminate or painted board. The main support section is 80 mm with a 2 mm metal wall. The desk is rated for an 80 kg uniform desktop load and a 40 kg concentrated monitor-and-equipment load; each adjustable shelf is rated for 20 kg. The door and hinge durability target is 100000 opening cycles, and the product net weight is 135 kg. Integrated cable management helps maintain a tidy executive setup. A 160 by 80 mm desktop grommet, also specified as an 80 mm cable opening, routes monitor and power cables toward the rear modesty-panel zone, where cable-management hardware and a 120 mm-deep cable tray guide cabling out of sight. The main top can accommodate a monitor, laptop, writing materials, and task lighting, while the side surface supports consultation or additional equipment. This desk is well suited to private director or manager offices, administrative rooms, and consultancy workplaces that require computer work, paperwork handling, printer or CPU storage, and file organization in one coordinated footprint. Procurement teams should plan for assembly and access rather than treating the item as a compact flat-pack desk: it is supplied as a set, with reference assembly time of 40 minutes, and packaging details should be confirmed against the delivery method and site facilities. The storage configuration, single-user knee opening, cable outlet location, dark cabinet finish, and weighted load limits should be checked against intended equipment and office layout before purchase.

L-Shaped Executive Desk with Full Side Storage Credenza and Cable Port Specifications
