Automatic mm / inch conversion · Core engineering specifications

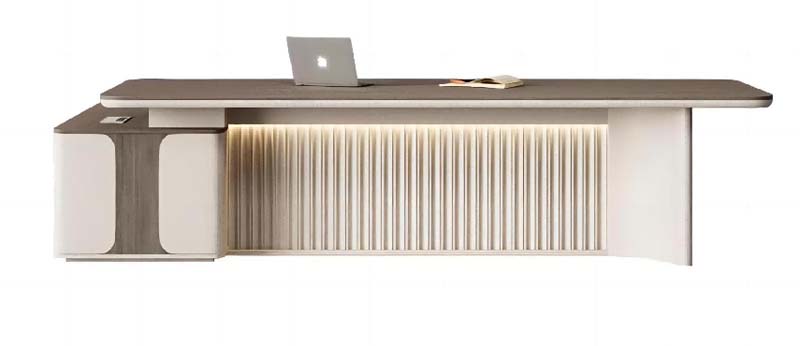

| Overall dimensions (L-shaped footprint) | 2800 x 2150 x 760 mm | |
|---|---|---|
| Desktop thickness | 80 mm | |
| Main work surface depth | 900 mm | |
| Left return credenza depth | 600 mm | |
| Left return credenza height | 650 mm | |
| Knee clearance height under main desk | 620 mm | |
| Knee clearance width (central open well) | 1600 mm | |
| Desktop edge overhang on right side | 100 mm | |
| Fluted front panel height | 580 mm | |
| Embedded cable grommet diameter | 80 mm | |
| Edge banding thickness | 2 mm | |
| Metal support leg wall thickness | 2 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Desktop static load capacity | 150 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 cycles | |
| Hinge cycle rating | 80000 cycles | |
| Product net weight | 260 kg | |
| Recommended user weight capacity (seated use) | 136 kg | |
| Surface scratch resistance rating | 2000 cycles | |
| Standard warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Desktop substrate | E0-grade high-density fiberboard | |
|---|---|---|
| Desktop surface finish | Painted wood veneer | |
| Decorative front panel | Fluted MDF with matte paint finish | |
| Left return cabinet exterior panels | Two-tone MDF with matte paint finish | |
| Internal cabinet frames | E0-grade melamine-faced chipboard | |
| Structural support legs | 1.5mm cold-rolled steel with powder-coated finish | |
| Edge banding | 2mm painted wood veneer edge treatment | |
| Drawer slides | 3-section full-extension cold-rolled steel slides | |
| Cabinet hinges | Cold-rolled steel soft-close hydraulic hinges | |
| Ambient lighting components | 24V recessed LED strip with diffused cover | |
| Integrated power unit | Embedded AC outlet + 2 USB-A charging ports | |
| Foot glides | Adjustable nylon foot glides |
Adjustment / rotation / tilt / mobility / storage features
| Front ambient LED lighting | Touch-controlled dimmable warm white strip | |
|---|---|---|
| Cable management system | Internal routing channels + 80mm lift cable port | |
| Left return storage cabinet | Enclosed hinged door storage compartment | |
| Drawer locking mechanism | Digital combination lock for lower storage drawers | |
| Return cabinet LED lighting | Recessed interior LED strip | |
| Desktop rounded edge design | Soft rounded front and side edges | |
| Adjustable foot glides | 15mm height adjustment range | |
| Power access on return top | Embedded charging port unit | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| Executive private office | Primary use for president, CEO or senior management daily work and meetings | |
|---|---|---|
| Senior manager workspace | Mid-to-large size office for department directors and senior supervisors | |
| High-end home office | Premium home workspace for remote executives and professionals | |
| Small boardroom auxiliary work surface | Side work area for meeting material preparation and device placement | |
| Reception area manager workspace | Back-of-house work surface for front office management staff | |
| Recommended pairing | Match with high-back ergonomic executive chair and matching filing cabinet |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to structural performance verification | |
|---|---|---|
| EN 13722:2004 | Furniture storage units strength and durability requirements, applicable to return cabinet |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, recommended for load and durability validation | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, recommended for cabinet and drawer hardware testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural stability and finish quality | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, E0 grade compliance for indoor office use | |
| GB/T 4897.3-2015 | Particleboard specification for furniture use, applicable to internal cabinet substrates |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural stability and finish quality; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, E0 grade compliance for indoor office use; 3. GB/T 4897.3-2015: Particleboard specification for furniture use, applicable to internal cabinet substrates; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
