Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

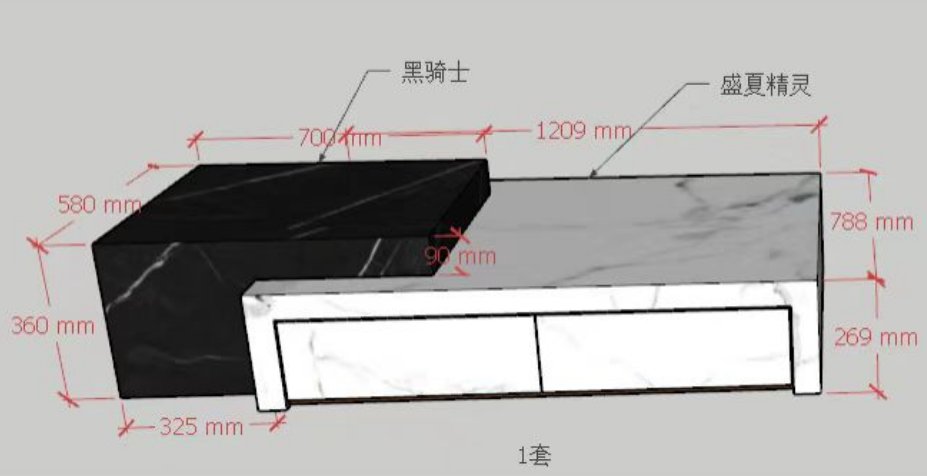

| Overall dimensions (W × D × H) | 1909 × 788 × 360 mm | |
|---|---|---|
| Black raised section dimensions | 700 x 580 x 360 mm | |
| White lower section dimensions | 1209 x 788 x 269 mm | |
| Height difference between sections | 90 mm | |
| Black section forward protrusion | 325 mm | |
| Drawer face height | 269 mm | |
| Stone top thickness | 12 mm | |
| Drawer internal depth | 400 mm | |
| Plinth base toe kick recess | 50 mm | |
| Total surface usable area | 1.19 sqm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop static distributed load | 100 kg | |
|---|---|---|
| Per-drawer static load capacity | 15 kg | |
| Sintered stone surface Mohs hardness | 6 | |
| Sintered stone water absorption rate | 0.05% | |
| Sintered stone flexural strength | 45 MPa | |
| Product net weight | 180 kg | |
| Sealed surface stain resistance rating | Grade 5 | |
| Manufacturer warranty period | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Black raised section top and body | Polished black sintered stone (Black Knight finish) | |
|---|---|---|
| White lower section top and drawer fronts | Polished white-vein sintered stone (Summer Elf finish) | |
| Internal support frame | E0 grade multi-layer solid wood substrate | |
| Drawer slide hardware | Cold-rolled steel soft-close full-extension slides | |
| Plinth base structure | Reinforced solid wood frame with sintered stone cladding | |
| Surface finish treatment | Nano sealed polished coating | |
| Drawer internal lining | Soft anti-scratch velvet flocking | |
| Structural adhesive | Low-VOC stone-specific structural adhesive | |
| Edge treatment | 45-degree mitered polished stone edges | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Front storage drawers | 2 equal-width soft-close drawers for hidden living room item storage | |
|---|---|---|
| Stepped display surfaces | Two tiered flat top surfaces for layered display of decor and tabletop items | |
| Plinth base design | Recessed toe kick for close foot placement without scuffing the cabinet base | |
| Heat-resistant worktop | Sintered stone surface supports placement of hot items up to 1200°C | |
| Scratch-resistant surface | Hard polished finish supports direct placement of hard objects without permanent marking | |
| Pre-assembled delivery | Fully assembled unit requiring no on-site structural assembly | |
| Stain-resistant surface | Sealed polished surface allows wipe-clean removal of common household spills | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary application space | Contemporary style living room as a center coffee table in front of sofas | |
|---|---|---|
| Suitable user group | Design-focused residential users and high-end commercial lounge spaces | |
| Functional use case | Display decorative objects, store remote controls and small living room accessories | |
| Applicable room size | Living rooms with minimum 3000mm width sofa wall space | |
| Recommended placement | Center position with 450mm minimum clearance around all sides for easy circulation |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Furniture formaldehyde emission | EN 13986:2004 E1 class | |
|---|---|---|
| Stone surface heat resistance | EN 438:2016 180°C 20min no damage | |
| Load bearing structural stability | EN 15372:2016 Level 2 |
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Wood-based panel formaldehyde emission | GB 18580E0 grade | |
|---|---|---|
| Sintered stone flexural strength | GB/T 35160≥45MPa | |
| Furniture surface abrasion resistance | GB/T 4893.8Grade 2 |
This product must meet the following technical requirements: 1. Wood-based panel formaldehyde emission: GB 18580E0 grade; 2. Sintered stone flexural strength: GB/T 35160≥45MPa; 3. Furniture surface abrasion resistance: GB/T 4893.8Grade 2; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
