Automatic mm / inch conversion · Core engineering specifications

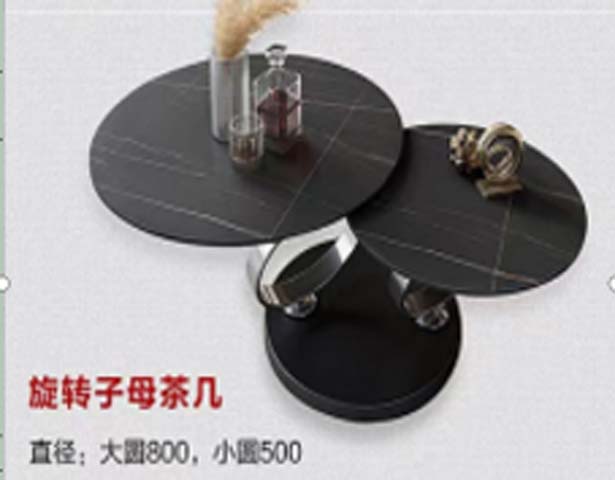

| Overall dimensions (nested) | 800 x 800 x 500 mm | |
|---|---|---|
| Large round table top diameter | 800 mm | |
| Small round table top diameter | 500 mm | |
| Table top thickness | 20 mm | |
| Extended overall length (fully rotated) | 1130 mm | |
| Base diameter | 600 mm | |
| Support arm wall thickness | 2 mm | |
| Floor clearance under base | 20 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Total static load capacity | 150 kg | |
|---|---|---|
| Net weight | 45 kg | |
| Rotating mechanism cycle life | 100000 rotations | |
| Top surface heat resistance | 1200 ℃ | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Large table top | 20mm black marble-veined sintered stone, polished finish | |
|---|---|---|
| Small table top | 20mm black marble-veined sintered stone, polished finish | |
| Rotating support arms | Chrome-plated carbon steel, polished mirror finish | |
| Central rotating hardware | Dual-ball-bearing chrome-plated steel swivel plate | |
| Lower base | Round black powder-coated carbon steel, matte finish | |
| Surface edge treatment | Smooth polished rounded edge on stone tops | |
| Connector hardware | Zinc-plated steel bolts and locking nuts | |
| Base anti-slip pads | 3mm thick EVA rubber floor protection pads | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
Adjustment / rotation / tilt / mobility / storage features
| Top rotation function | 360° smooth swivel of small top around central pivot, lockable at any angle | |
|---|---|---|
| Layout adjustability | Converts between compact nested layout and extended dual-surface layout | |
| Surface utility | Heat-resistant, scratch-resistant non-porous top for drink and decor placement | |
| Assembly structure | Knock-down assembly with included hardware, no permanent on-site welding needed | |
| Floor protection | Anti-slip EVA pads prevent floor scratches and table sliding | |
| Cleaning requirement | Non-porous polished surface wipes clean with damp cloth, no sealing required | |
| Load stability | Wide round low center of gravity base prevents tipping when fully extended | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
| Living room placement | Positioned in front of 3seat sofas for drink, snack and decor display | |
|---|---|---|
| Small apartment use | Compact nested layout saves floor space for units under 90sqm | |
| Modern interior styles | Matches light luxury, minimalist, wabi-sabi and contemporary decor schemes | |
| Light commercial use | Suitable for lounge areas, boutique waiting rooms and studio reception spaces | |
| Recommended pairing | Coordinates with black/neutral upholstered sofas, metal frame living room furniture | |
| Surface use restriction | Not intended for cutting directly or placing hot cookware over 280℃ without insulation |
EU Market Access Requirements* EN Standards
| Decorative high-pressure laminate resistance | EN 438:2019 | |
|---|---|---|
| Furniture mechanical safety for tables | EN 15372:2016 | |
| Top surface abrasion resistance | Recommended references: EN 438 |
Standards applicable to China-market projects
| Indoor furniture harmful emission limit | GB 18584 | |
|---|---|---|
| Furniture mechanical performance test for tables | GB/T 10357.1 |
This product must meet the following technical requirements: 1. Indoor furniture harmful emission limit: GB 18584; 2. Furniture mechanical performance test for tables: GB/T 10357.1; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
