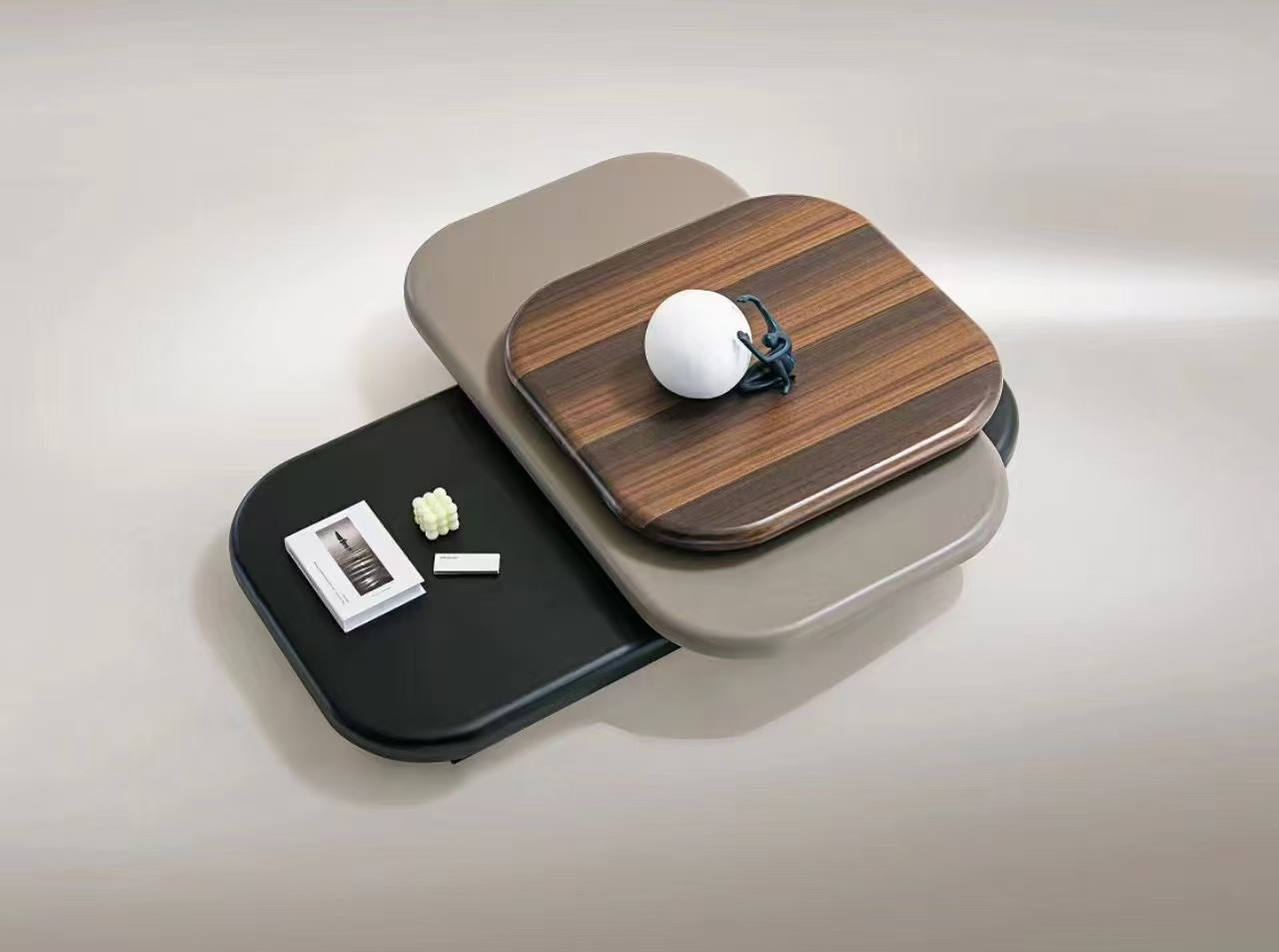

Product supplier3-Tier Rotating Nested Rounded Corner Coffee Table Mixed Finish, 18mm E1-grade MDF
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 800 × 350 mm | |
|---|---|---|
| Overall footprint (fully extended) | 1200 x 800 x 350 mm | |
| Nested compact footprint | 800 x 800 x 350 mm | |
| Black lower tier tabletop size | 1000 x 600 mm | |
| Taupe middle tier tabletop size | 900 x 700 mm | |
| Walnut top tier tabletop size | 700 x 600 mm | |
| Tabletop thickness | 25 mm | |
| Corner radius on all edges | 50 mm | |
| Floor clearance under base | 10 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed load per tabletop tier | 30 kg | |
|---|---|---|
| Net product weight | 58 kg | |
| Swivel mechanism load rating | 50 kg | |
| Surface wear resistance (paint/veneer) | 2000 cycles | |
| Maximum number of users for concurrent use | 4 | |
| Edge impact resistance rating | 10 J | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Black lower tier substrate | 18mm E1-grade MDF | |
|---|---|---|
| Black lower tier finish | Matte black PU paint | |
| Taupe middle tier substrate | 18mm E1-grade MDF | |
| Taupe middle tier finish | Matte taupe PU paint | |
| Walnut top tier substrate | 18mm E1-grade MDF | |
| Walnut top tier finish | Book-matched natural walnut wood veneer | |
| Rotating hardware | Carbon steel ball-bearing swivel mechanism | |
| Edge banding | PVC soft edge trim matched to finish | |
| Bottom foot pads | Non-slip felt pads | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Tier rotation function | 360-degree horizontal swivel for upper two tiers | |
|---|---|---|
| Nested storage function | All tiers retract to compact square footprint | |
| Surface safety function | Fully rounded soft edges on all tiers | |
| Multi-surface zoning | Three independent display surfaces at staggered heights | |
| Floor protection function | Felt bottom glides under base | |
| Stability design | Reinforced central steel support column | |
| Swivel tier rotation radius | 350 mm | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary residential application | Central placement in modern minimalist living rooms, positioned before sofas | |
|---|---|---|
| Small space suitability | Studio apartments and compact urban living rooms | |
| Commercial application | Lounge areas in boutique offices or high-end hotel lobbies | |
| Recommended use case | Display of small decor items, art books, table lamps, and beverage service | |
| Floor type compatibility | Hardwood, tile, laminate, and low-pile carpet floors | |
| Style matching | Complements wabi-sabi, minimalist, contemporary, and Italian light luxury interiors |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Formaldehyde emission requirement | EN 13986:2004+A1:2015 E1 class | |
|---|---|---|
| Surface abrasion requirement | EN 15186:2012 Class B |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Formaldehyde emission requirement | GB/T 18580E1 grade | |
|---|---|---|
| Surface coating durability requirement | GB/T 4893.1Class 2 | |
| Structural stability requirement | GB/T 3324General technical requirements for wooden furniture |
Standardized tender description text
This product must meet the following technical requirements: 1. Formaldehyde emission requirement: GB/T 18580E1 grade; 2. Surface coating durability requirement: GB/T 4893.1Class 2; 3. Structural stability requirement: GB/T 3324General technical requirements for wooden furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
