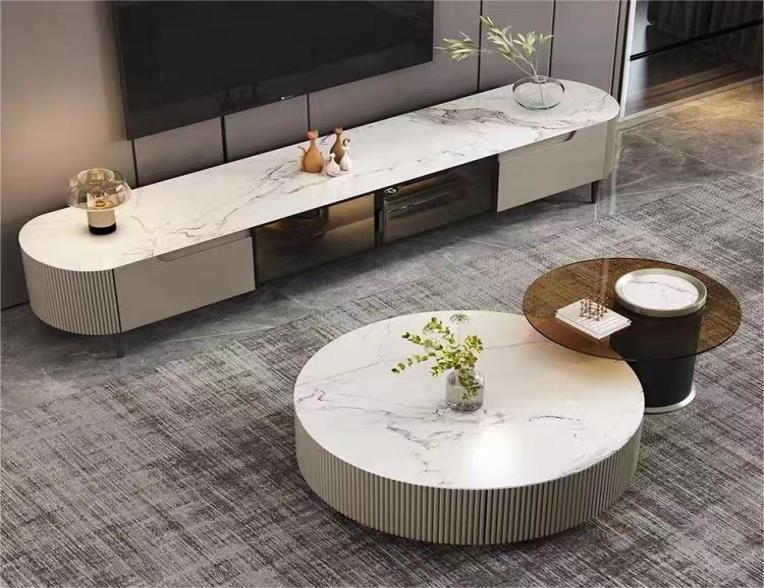

Product supplierModern Light Luxury Rounded End Fluted Base TV Media Console with Sintered Stone Top, 15mm white sintered stone with natural marble veining, polished finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 400 × 460 mm | |
|---|---|---|
| tabletop thickness | 15 mm | |
| floor clearance under base | 60 mm | |
| left fluted end panel width | 350 mm | |
| left storage drawer internal dimensions | 600 x 340 x 120 mm | |
| central bronze glass media bay internal dimensions | 800 x 340 x 180 mm | |
| right storage drawer internal dimensions | 600 x 340 x 120 mm | |
| cable management opening diameter | 60 mm | |
| rounded end radius | 200 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| tabletop static load capacity | 100 kg | |
|---|---|---|
| supported maximum TV size | 98 inches | |
| unit net weight | 68 kg | |
| drawer slide cycle rating | 50000 open/close cycles | |
| surface scratch resistance rating | 3H | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| tabletop | 15mm white sintered stone with natural marble veining, polished finish | |
|---|---|---|
| carcass framework | 18mm thick E0 grade engineered wood with matte light beige paint finish | |
| left end base panel | Vertical fluted MDF with matte light beige paint finish | |
| drawer fronts (non-glass) | Flat matte light beige MDF panel, push-to-open design | |
| central media compartment front | 5mm bronze-tinted tempered glass, semi-transparent finish | |
| support legs | 15mm diameter dark powder-coated carbon steel, cylindrical shape | |
| back panel | 3mm thick hardboard with pre-punched cable openings | |
| drawer slides | Cold-rolled steel full-extension ball-bearing slides | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| left storage drawer | Push-to-open operation, fully extends for full access to stored media items | |
|---|---|---|
| right storage drawer | Push-to-open operation, soft-close mechanism to prevent slamming | |
| central media compartment | Bronze tinted glass front conceals equipment while allowing IR remote signal pass-through | |
| cable management | Rear pre-punched openings with rubber grommets route power and AV cables neatly | |
| floor level adjustment | Threaded feet on leg bases adjust up to 10mm to compensate for uneven floors | |
| ventilation design | Rear ventilation slots in central media bay prevent AV equipment overheating | |
| Cable / Vent Opening Reference | 80 mm diameter; recommend 4rear cable/vent openings |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| residential living room | Positioned against wall under wall-mounted TV for media storage and display | |
|---|---|---|
| open-plan apartment lounge | Low profile and rounded edges suit soft modern interior design schemes | |
| home media room | Central vented bay supports AV receiver and streaming equipment storage | |
| matching set use | Pairs with matching fluted sintered stone round nesting coffee tables for cohesive decor | |
| households with children | Rounded end caps eliminate sharp corner impact hazards |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 312:2010 | Particleboard performance requirements for furniture structural use | |
|---|---|---|
| EN 12150-1:2015 | Tempered soda lime silicate glass safety standard for media compartment panel | |
| EN 14749:2016 | Safety and strength requirements for domestic storage furniture including TV stands |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to carcass and panel construction | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to engineered wood structural components | |
| GB 6566-2010 | Radionuclide limits for building materials, applicable to sintered stone top material | |
| GB/T 15102-2017 | Surface decorated wood-based panels, applicable to finished cabinet panels |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to carcass and panel construction; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable to engineered wood structural components; 3. GB 6566-2010: Radionuclide limits for building materials, applicable to sintered stone top material; 4. GB/T 15102-2017: Surface decorated wood-based panels, applicable to finished cabinet panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
