| Submitted | Field | Original | Note / Status | |
|---|---|---|---|---|
No corrections yet. Use the flag at the end of a row to report an issue. | ||||
Automatic mm / inch conversion · Core engineering specifications
| Overall nested footprint (side by side) | 900 x 800 x 450 mm | |
|---|---|---|
| Large white tabletop diameter | 800 mm | |
| Small dark tabletop diameter | 600 mm | |
| Tabletop thickness | 20 mm | |
| Table height (both tables) | 450 mm | |
| Metal frame tube diameter | 30 mm | |
| Frame wall thickness | 1.5 mm | |
| Under-table floor clearance | 100 mm | |
| Frame base ring diameter (large table) | 700 mm | |
| Frame base ring diameter (small table) | 520 mm | |
| Table edge radius | 10 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Set total net weight | 28 kg | |
|---|---|---|
| Static distributed load per tabletop | 73 kg | |
| Surface scratch resistance rating | 3000 abrasion cycles | |
| Surface heat resistance | 180 °C | |
| Frame static load capacity | 150 kg | |
| Recommended maximum users for simultaneous use | 4 | |
| Frame rust protection durability | 5 years indoor use | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery

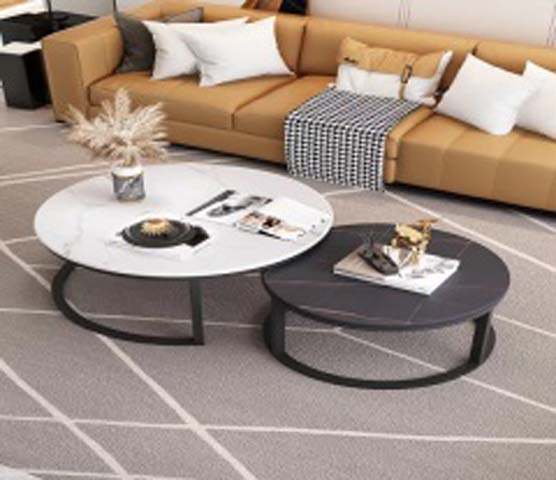

| Large tabletop | White marble-vein sintered stone, polished smooth finish | |
|---|---|---|
| Small tabletop | Dark matte black sintered stone, low-sheen textured finish | |
| Support frames | Matte black powder-coated carbon steel, C-shaped open ring base | |
| Frame joints | TIG welded steel connections, ground smooth at seams | |
| Tabletop backing | 12mm high-density MDF reinforcement layer | |
| Tabletop to frame connectors | M6 zinc-plated steel screws with rubber washers | |
| Frame surface treatment | Electrostatic powder coat, 60μm thickness, anti-rust phosphate pre-treatment | |
| Foot pads | 5mm thick non-slip PVC pads at frame base contact points | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
Adjustment / rotation / tilt / mobility / storage features
| Nesting storage function | Small table slides fully under large table to reduce footprint to 0.5㎡ | |
|---|---|---|
| Flexible layout function | Tables can be separated for extra serving surface, or arranged in staggered formation | |
| Surface maintenance function | Non-porous sintered stone surface resists stains, wipes clean with damp cloth | |
| Knock-down assembly function | Frames attach to tabletops with included hex key and hardware, no special tools required | |
| Anti-slip function | PVC foot pads grip hard flooring and carpet, prevent unwanted movement during use | |
| Edge safety function | Fully rounded table edges eliminate sharp corners to reduce impact injury | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
| Small apartment living room | Suitable for 90㎡ compact living spaces, nests to save floor space when not in use | |
|---|---|---|
| Open-plan lounge area | Pairs with 4seater sofas for serving drinks, magazines and decorative display | |
| Modern minimalist interior schemes | Matches monochrome, light luxury, Scandinavian and industrial decor styles | |
| Home office reception area | Functions as a guest refreshment table in casual meeting or reception zones | |
| Rental property furnishing | Durable, easy-clean finish and flexible layout suit short-term and long-term rental fit-outs | |
| Studio apartment multi-use space | Can be repositioned for use as a temporary laptop table or light dining surface |
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Furniture – Strength, durability and safety for domestic tables, applicable to structural load requirements | |
|---|---|---|
| EN 15187:2006 | Furniture – Assessment of surface resistance to cold liquids, applicable to tabletop stain resistance | |
| EN 1022:2018 | Furniture – Seating stability, referenced for adjacent use with domestic living room seating |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to tabletop backing and structural performance | |
|---|---|---|
| GB/T 4893.1-2021 | Surface wear resistance test method for furniture surfaces, applicable to tabletop finish durability | |
| GB/T 17657-2013 | Test methods for wood-based panels, applicable to MDF backing mechanical performance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to tabletop backing and structural performance; 2. GB/T 4893.1-2021: Surface wear resistance test method for furniture surfaces, applicable to tabletop finish durability; 3. GB/T 17657-2013: Test methods for wood-based panels, applicable to MDF backing mechanical performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
