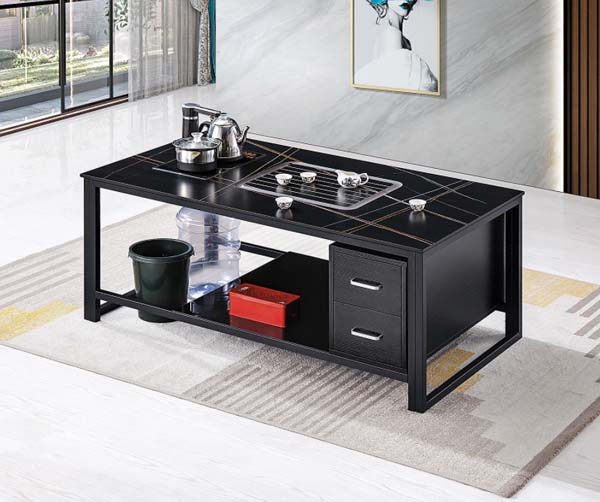

Product supplierModern Black Glass Top Tea Coffee Table with Integrated Tea Set Mount and Storage Drawers, 12mm black tempered glass with gold geometric line print
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 600 × 550 mm | |
|---|---|---|
| Tabletop thickness | 12 mm | |
| Integrated stainless steel tea tray dimensions | 600 x 400 mm | |
| Electric kettle heating zone cutout dimensions | 350 x 250 mm | |
| Lower open shelf height clearance | 300 mm | |
| Storage drawer unit width (right side) | 400 mm | |
| Single drawer internal dimensions | 360 x 480 x 120 mm | |
| Frame tube cross-section | 40 x 20 mm | |
| Floor clearance under lower shelf | 50 mm | |
| Frame tube wall thickness | 1.2 mm | |
| Drawer handle length | 120 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop uniform static load capacity | 80 kg | |
|---|---|---|
| Product net weight range | 38 kg | |
| Recommended maximum user capacity for seated tea service | 4 people | |
| Tempered glass tabletop impact resistance | 1 kg steel ball drop from 1000 mm | |
| Powder coat finish abrasion resistance | 2000 cycles without substrate exposure | |
| Adjustable foot vertical adjustment range | 10 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop surface | 12mm black tempered glass with gold geometric line print | |
|---|---|---|
| Support frame | Powder-coated matte black carbon steel rectangular tubing | |
| Lower open shelf surface | Black tempered glass matching tabletop finish | |
| Drawer cabinet body | 15mm thick particleboard with black melamine finish | |
| Drawer fronts | Black melamine-faced engineered board with polished chrome bar pulls | |
| Integrated tea tray | 304 grade brushed stainless steel slatted drain tray | |
| Drawer slides | Side-mounted cold-rolled steel 3-section ball bearing slides | |
| Foot pads | Injection-molded non-slip PP plastic adjustable feet | |
| Frame connectors | M6 carbon steel hex bolts with lock washers, 24 total fasteners | |
| Drawer stops | Nylon integrated drawer limit stops to prevent full pull-out during use | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated tea preparation station | Recessed heating zone supports electric kettle and tea sterilizer pot with routed cable management under tabletop | |
|---|---|---|
| Built-in drain tea tray | Stainless steel slatted tray collects excess tea water with drain connection to waste bucket positioned on lower shelf | |
| Two stacked right-side drawers | Smooth ball-bearing slide drawers provide enclosed storage for tea accessories, cups and supplies | |
| Open lower storage shelf | Full-width open shelf under tabletop holds 18.9L bottled water, waste bin and loose storage items | |
| Frame structural bracing | Horizontal cross bars between leg assemblies prevent lateral wobble and reinforce shelf support | |
| Adjustable leveling feet | Rotating feet at each leg base compensate for uneven floor surfaces to keep tabletop stable | |
| Surface spill resistance | Smooth sealed glass and powder-coated surfaces prevent liquid absorption, allowing full wipe cleaning within 30 seconds of tea spills | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping packages | 2 | |
|---|---|---|
| Largest carton dimensions (tabletop) | 1260 x 660 x 120 mm | |
| Second carton dimensions (frame/cabinet) | 1240 x 640 x 220 mm | |
| Total shipping gross weight | 45 kg | |
| Total shipping volume (CBM) | 0.28 cbm | |
| On-site assembly time | 40 minutes | |
| 20ft GP container loading quantity | 205 units | |
| 40ft HQ container loading quantity | 500 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office reception area use | Installed in executive reception rooms or lounge areas to serve tea to visiting guests, matching modern minimalist office decor | |
|---|---|---|
| Tea room and dedicated tea space use | Used in dedicated home or commercial tea rooms as a dedicated tea preparation and serving surface, with integrated tray and kettle mount eliminating separate tea cart needs | |
| Balcony casual lounge use | Placed on covered balconies paired with low casual seating for small group tea sessions | |
| Recommended pairing | Matches with low-back fabric or leather reception sofas with 450 mm seat height for ergonomic seated access to tabletop items | |
| Residential living room use | Positioned in front of three-seater sofas in modern residential living rooms as a combined tea serving and general coffee table, with lower storage for daily supplies | |
| Recommended seating pairing | Matches with low-back fabric or leather reception sofas with 450 mm seat height for ergonomic seated access to tabletop items |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12521:2015 Furniture - Strength, durability and safety - Requirements for domestic tables | Specifies minimum static load, impact and stability requirements for residential use coffee tables, recommended for export order acceptance | |
|---|---|---|
| EN 14073-2:2004 Office furniture - Storage furniture Part 2: Safety requirements | Applies to the drawer storage component, specifies drawer slide strength and anti-tip requirements for office reception use | |
| EN 12150-1:2015 Glass in building - Thermally toughened soda lime silicate safety glass | Applies to all glass components, specifies safety and performance requirements for tempered glass used in furniture |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for wooden furniture | Applies to the engineered board drawer cabinet components, specifies dimensional tolerance, edge banding and structural strength requirements for acceptance | |
|---|---|---|
| GB 15763.2-2005 Safety glazing materials in building Part 2: Tempered glass | Applies to all glass tabletops and shelves, requires mandatory tempering marks, impact resistance and breakage safety performance | |
| GB/T 10357.1-2013 Test of mechanical properties of furniture Part 1: Table static load and stability | Applies to overall table structural performance, specifies static load testing methods and stability criteria for acceptance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for wooden furniture: Applies to the engineered board drawer cabinet components, specifies dimensional tolerance, edge banding and structural strength requirements for acceptance; 2. GB 15763.2-2005 Safety glazing materials in building Part 2: Tempered glass: Applies to all glass tabletops and shelves, requires mandatory tempering marks, impact resistance and breakage safety performance; 3. GB/T 10357.1-2013 Test of mechanical properties of furniture Part 1: Table static load and stability: Applies to overall table structural performance, specifies static load testing methods and stability criteria for acceptance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
