Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 900 x 900 x 450 mm | |
|---|---|---|
| Tabletop thickness | 12 mm | |
| Central open cutout diameter | 400 mm | |
| Base outer arc width | 600 mm | |
| Base wall thickness | 2 mm | |
| Floor clearance under base | 120 mm | |
| Exterior black support height | 430 mm | |
| Interior brass liner height | 120 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Product net weight | 50 kg | |
|---|---|---|
| Distributed tabletop static load | 30 kg | |
| Vertical static load per base leg | 15 kg | |
| Recommended maximum placement items | 8 | |
| Surface finish abrasion resistance | 2000 cycles | |
| Tempered glass impact resistance | 1 kg drop from 1 m | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery

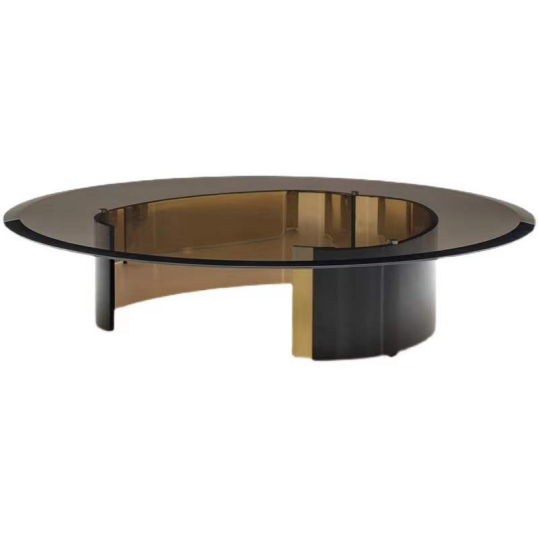

| Tabletop | 12 mm tempered smoked grey glass with polished edge | |
|---|---|---|
| Exterior base supports | Powder-coated matte black cold-rolled steel | |
| Interior cutout surround | Brushed brass-finish plated steel liner | |
| Glass-to-base connectors | Stainless steel clamping fasteners | |
| Base floor glides | Non-marking rubber pads | |
| Exterior base finish | Epoxy polyester powder coating, 60 um thickness | |
| Interior brass finish | Brushed PVD plated finish, 10 um thickness | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support | |
| Reference Finish / Color Count | Recommended 6top finishes and 3frame colors |
Adjustment / rotation / tilt / mobility / storage features
| Mobility | Fixed non-caster design with rubber floor glides | |
|---|---|---|
| Storage | No enclosed storage compartments, open hollow center design | |
| Surface use | Smooth non-porous glass top for drink and decor placement | |
| Assembly requirement | Knock-down assembly connecting glass top to pre-built base | |
| Floor protection | Non-marking glides prevent scuffing on hard flooring and low-pile carpet | |
| Design feature | Central open cutout creates decorative void for curated display objects | |
| Stability | Curved split-base design provides three-point floor contact for level placement | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
| Residential living room | Centered in front of sofas for drink, book and decorative display | |
|---|---|---|
| Hotel lounge areas | Used in public lobby seating zones as a modern accent piece | |
| Showroom and model home staging | Highlighted as a luxury contemporary design statement piece | |
| Executive lounge spaces | Placed in informal office reception waiting areas for guest use | |
| Modern apartment interiors | Suited for open-plan living spaces with minimalist decor schemes |
EU Market Access Requirements* EN Standards
| EN 12150-1:2015 | Applicable to thermally toughened soda lime silicate safety glass for furniture | |
|---|---|---|
| EN 15372:2008 | Applicable to strength, durability and safety requirements for domestic tables |
Standards applicable to China-market projects
| GB/T 32487-2016 | Applicable to glass furniture general technical requirements for home use | |
|---|---|---|
| GB/T 3324-2017 | Applicable to general technical requirements for wooden/metal furniture | |
| GB 15763.2-2005 | Applicable to safety glass requirements for tempered glass used in furniture |
This product must meet the following technical requirements: 1. GB/T 32487-2016: Applicable to glass furniture general technical requirements for home use; 2. GB/T 3324-2017: Applicable to general technical requirements for wooden/metal furniture; 3. GB 15763.2-2005: Applicable to safety glass requirements for tempered glass used in furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
