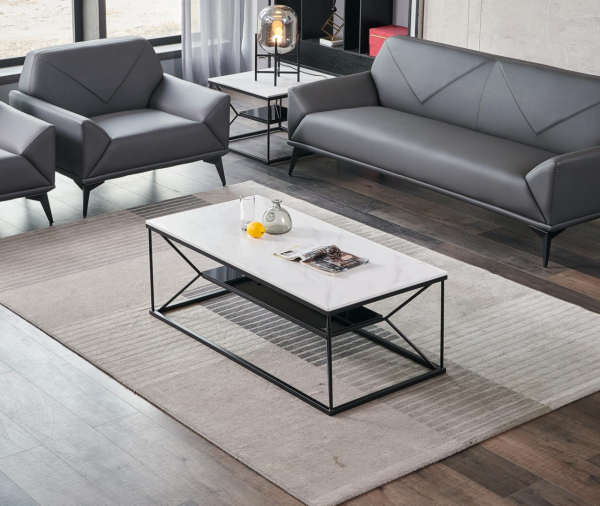

Modern Rectangular Coffee Table with White Veined Top, Black Metal X-Brace Frame and Lower Storage Shelf (model CT-MWX1200) is listed under Coffee Table. Dimensions: 1200 × 600 × 450 mm. Materials: White grey-veined sintered stone or faux marble engineered panel. Load capacity: 100 kg. Product Features: industrial,modern,style,2-tier,open,storage,metal,support,frame. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | JUESHANGDA | Model | CT-MWX1200 |
| Overall dimensions (W × D × H) | 1200 × 600 × 450 mm | Overall assembled dimensions | 1200 x 600 x 450 mm |
| Tabletop thickness | 25 mm | Lower shelf dimensions | 1120 x 520 mm |
| Frame tube diameter | 20 mm | Frame tube wall thickness | 1.2 mm |
| X-brace support angle | 45 degrees | Vertical leg height | 425 mm |
| Floor clearance under lower shelf | 100 mm | Lower shelf clearance from tabletop underside | 275 mm |
| Tabletop edge overhang past frame | 40 mm | Base frame footprint | 1180 x 580 mm |
| Adjustable foot height | 10 mm | Carcass Panel Thickness | 25 mm |
| Back Panel Thickness | 9 mm | Door / Drawer Front Thickness | 22 mm |
| Shelf Thickness | 25 mm | Tabletop static distributed load capacity | 100 kg |
| Net product weight | 25 kg | Surface water resistance rating | Level 1, wipeable non-porous finish |
| Frame corrosion resistance | 500 hours salt spray resistance | Surface scratch resistance | Level 3, resistant to daily household abrasion |
| Recommended maximum place setting count | 4 users | Structural frame static load test weight | 150 kg |
| Shelf Distributed Load | 30 kg/shelf | Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
| Hinge Opening Angle / Life | 165°; 80000 cycles | Tabletop surface | White grey-veined sintered stone or faux marble engineered panel |
| Tabletop core | High-density MDF or fiber cement backing | Frame structure | Matte black powder-coated carbon steel square tubing |
| Lower storage shelf | Black tempered glass or black matte laminated engineered panel | Frame joinery | Welded steel joints with zinc-plated bolted connectors |
| Adjustable feet | Nylon polymer non-marking leveler feet | Frame finish coating | Epoxy-polyester matte black powder coating |
| Edge treatment | Pencil-polished smooth tabletop edges | X-brace components | Same 20mm square steel tubing as main frame |
| Edge Band Thickness | 2 mm | Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
| Reference Finish / Color Count | Recommended 6finish options | Lower shelf open storage | Open fixed shelf for magazines, remotes and small living room items |
| Floor leveling adjustment | Individual adjustable feet rotate 10mm to correct uneven floor surfaces | Surface cleaning function | Non-porous tabletop wipes clean with damp soft cloth, no sealing required |
| Structural stability bracing | Dual side X-braces prevent frame racking during regular use | Knockdown flat-pack assembly | Frame sections bolt together without specialized tools |
| Floor protection feature | Nylon feet prevent scratching of hardwood, tile and polished floor surfaces | Static non-adjustable height | Fixed 450mm height optimized for use with standard sofas and armchairs |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | Reference Packaging Volume | 0.65 m³/set |
| Residential living room central placement | Position between sofa and armchairs for holding drinks, reading materials and decor | Office reception lounge use | Suitable for visitor waiting areas paired with upholstered reception seating |
| Apartment open-plan living space | Compact 1200mm length fits small to medium living areas without excessive footprint | Casual lounge break room use | Suitable for staff break areas to hold beverages, reading material and personal items |
| Recommended pairing furniture | Matches with dark grey/black leather or fabric sofas with black metal legs | Surface use suitability | Supports light decorative items, drinkware, magazines and small portable objects |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 600 × 450 mm | |
|---|---|---|
| Overall assembled dimensions | 1200 x 600 x 450 mm | |
| Tabletop thickness | 25 mm | |
| Lower shelf dimensions | 1120 x 520 mm | |
| Frame tube diameter | 20 mm | |
| Frame tube wall thickness | 1.2 mm | |
| X-brace support angle | 45 degrees | |
| Vertical leg height | 425 mm | |
| Floor clearance under lower shelf | 100 mm | |
| Lower shelf clearance from tabletop underside | 275 mm | |
| Tabletop edge overhang past frame | 40 mm | |
| Base frame footprint | 1180 x 580 mm | |
| Adjustable foot height | 10 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop static distributed load capacity | 100 kg | |
|---|---|---|
| Net product weight | 25 kg | |
| Surface water resistance rating | Level 1, wipeable non-porous finish | |
| Frame corrosion resistance | 500 hours salt spray resistance | |
| Surface scratch resistance | Level 3, resistant to daily household abrasion | |
| Recommended maximum place setting count | 4 users | |
| Structural frame static load test weight | 150 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop surface | White grey-veined sintered stone or faux marble engineered panel | |
|---|---|---|
| Tabletop core | High-density MDF or fiber cement backing | |
| Frame structure | Matte black powder-coated carbon steel square tubing | |
| Lower storage shelf | Black tempered glass or black matte laminated engineered panel | |
| Frame joinery | Welded steel joints with zinc-plated bolted connectors | |
| Adjustable feet | Nylon polymer non-marking leveler feet | |
| Frame finish coating | Epoxy-polyester matte black powder coating | |
| Edge treatment | Pencil-polished smooth tabletop edges | |
| X-brace components | Same 20mm square steel tubing as main frame | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Lower shelf open storage | Open fixed shelf for magazines, remotes and small living room items | |
|---|---|---|
| Floor leveling adjustment | Individual adjustable feet rotate 10mm to correct uneven floor surfaces | |
| Surface cleaning function | Non-porous tabletop wipes clean with damp soft cloth, no sealing required | |
| Structural stability bracing | Dual side X-braces prevent frame racking during regular use | |
| Knockdown flat-pack assembly | Frame sections bolt together without specialized tools | |
| Floor protection feature | Nylon feet prevent scratching of hardwood, tile and polished floor surfaces | |
| Static non-adjustable height | Fixed 450mm height optimized for use with standard sofas and armchairs | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential living room central placement | Position between sofa and armchairs for holding drinks, reading materials and decor | |
|---|---|---|
| Office reception lounge use | Suitable for visitor waiting areas paired with upholstered reception seating | |
| Apartment open-plan living space | Compact 1200mm length fits small to medium living areas without excessive footprint | |
| Casual lounge break room use | Suitable for staff break areas to hold beverages, reading material and personal items | |
| Recommended pairing furniture | Matches with dark grey/black leather or fabric sofas with black metal legs | |
| Surface use suitability | Supports light decorative items, drinkware, magazines and small portable objects |
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Furniture for domestic use, tables: safety, strength and durability requirements | |
|---|---|---|
| EN 1022:2018 | Furniture seating and tables, determination of stability | |
| EN 15185:2011 | Furniture assessment of surface resistance to abrasion for table tops | |
| EN 15186:2011 | Furniture assessment of surface resistance to scratching for hard table tops |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable if top uses engineered wood core | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel frame structural performance | |
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable for engineered wood components | |
| GB/T 4893.8-2013 | Furniture surface film abrasion resistance test method, applicable to tabletop finish |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable if top uses engineered wood core; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel frame structural performance; 3. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for engineered wood components; 4. GB/T 4893.8-2013: Furniture surface film abrasion resistance test method, applicable to tabletop finish; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
