Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 800 × 800 × 450 mm | |
|---|---|---|
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Large table total weight | 22 kg | |
|---|---|---|
| Small table total weight | 16 kg | |
| Large table top static load capacity | 80 kg | |
| Base stability tilt angle | 15 degrees | |
| Floor load per table | 0.05 MPa | |
| Recommended set weight capacity for distributed items | 100 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Large table tabletop | White engineered stone with grey marble veining, polished smooth finish | |
|---|---|---|
| Small table tabletop | White engineered stone with grey marble veining, polished smooth finish | |
| Large table support base | 1.5mm thick cold-rolled steel, matte black powder-coated finish | |
| Small table support base | 1.5mm thick cold-rolled steel, matte black powder-coated finish | |
| Tabletop to base connection | M8 steel mounting bolts with rubber anti-slip gaskets | |
| Base bottom floor protector | 3mm thick non-woven felt pad adhered along full contact edge | |
| Tabletop edge finish | Bullnose rounded edge with 5mm radius, polished to match top surface | |
| Base surface treatment | Electrostatic matte black powder coating, scratch-resistant grade 3H | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

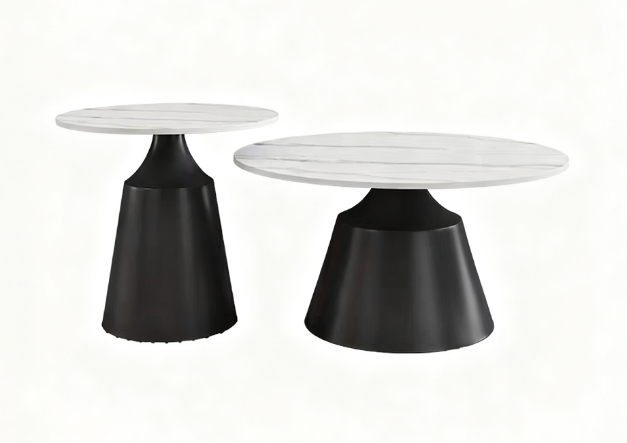

| Nesting storage function | Small table slides partially under large table to reduce occupied floor space by 40% when not in use | |
|---|---|---|
| Separate use function | Two tables can be placed independently as separate coffee table and side table for flexible seating arrangements | |
| Surface anti-stain function | Polished non-porous tabletop surface resists liquid spills from common beverages, requires only wipe cleaning | |
| Anti-tip stability function | Wide flared conical base lowers center of gravity to prevent tipping when items are placed on table edges | |
| Floor protection function | Full perimeter felt pads on base bottoms eliminate metal-to-floor contact to prevent scratches and reduce movement noise | |
| Assembly requirement | Minimal assembly required, only attaching tabletops to pre-built bases with included hardware, no complex joining needed | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Modern living room application | Placed in front of sofas in small to medium apartments to provide dual-level surfaces for drinks, books and decor | |
|---|---|---|
| Lounge seating area application | Used in hotel or office lounge waiting areas for flexible surface access for guests | |
| Staggered layout configuration | Arranged in offset positions to create layered visual interest instead of a single monolithic table | |
| Side table supplementary use | Smaller unit can be pulled out for use as an extra side table next to armchairs during gatherings | |
| Hard floor suitability | Recommended for use on hardwood, tile, or laminate flooring with felt base pads to prevent surface damage | |
| Residential rental furnishing | Suitable for furnished rental properties due to durable low-maintenance surfaces and stable construction |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Residential table safety requirement | EN 12521:2015 | |
|---|---|---|
| Surface wear resistance test | EN 15185:2011 |
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Table stability test | GB/T 10357.2 | |
|---|---|---|
| Table surface durability test | GB/T 4893.1 | |
| Metal coating adhesion test | GB/T 9286 | |
| Formaldehyde emission limit | GB 18584 |
This product must meet the following technical requirements: 1. Table stability test: GB/T 10357.2; 2. Table surface durability test: GB/T 4893.1; 3. Metal coating adhesion test: GB/T 9286; 4. Formaldehyde emission limit: GB 18584; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
