Automatic mm / inch conversion · Core engineering specifications
| overall dimensions | 1200 x 610 x 480 mm | |
|---|---|---|
| tabletop thickness | 19 mm | |
| frame tube wall thickness | 1.5 mm | |
| vertical side slat spacing | 60 mm | |
| underframe clearance height | 410 mm | |
| frame tube cross-section size | 25 x 25 mm | |
| corner leg section width | 25 mm | |
| bottom frame rail height above floor | 15 mm | |
| tabletop edge overhang beyond frame | 10 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| tabletop static distributed load | 100 kg | |
|---|---|---|
| product net weight | 18 kg | |
| surface scratch resistance rating | 3000 cycles | |
| frame finish rust resistance | Grade 3 (neutral salt spray 48h) | |
| floor protection static friction coefficient | 0.6 | |
| recommended maximum point load on center | 30 kg | |
| color option count | 3 | |
| warranty period | 1 year | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery

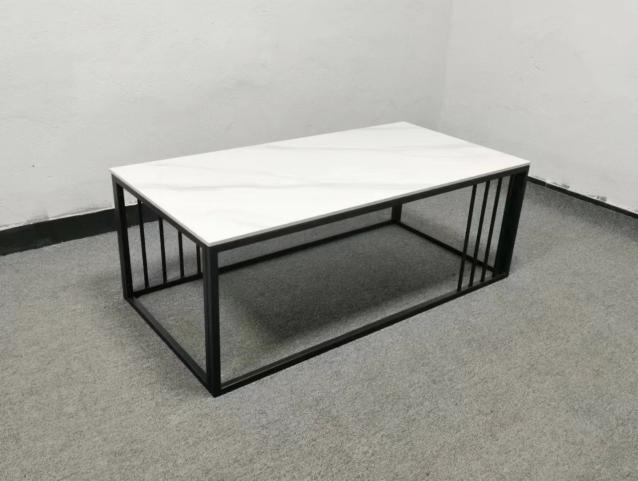

| tabletop | White veined sintered stone surface over MDF core | |
|---|---|---|
| frame structure | Black powder-coated square steel tubing | |
| vertical side slats | Black powder-coated steel bars matching frame tubing | |
| frame connectors | Zinc-plated steel allen bolts and lock nuts | |
| foot pads | Non-slip TPE rubber pads on each frame corner | |
| frame finish | Matte black epoxy powder coating | |
| tabletop edge banding | Matching thin PVC edge trim to seal core material | |
| bottom perimeter rail | Same square steel tubing as corner legs | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
Adjustment / rotation / tilt / mobility / storage features
| structure type | Fixed non-folding rigid open cage frame | |
|---|---|---|
| floor protection | Adjustable TPE foot pads to compensate for uneven floors | |
| surface maintenance | Wipe-clean non-porous tabletop resistant to common beverage spills | |
| assembly method | Knock-down construction requiring bolted frame-to-top attachment | |
| underframe utility | Full open hollow under-space without shelves or partitions | |
| load distribution | Four corner support points transferring weight evenly to floor | |
| edge safety | Softened tabletop corners with no sharp exposed metal edges | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
| residential living room use | Positioned in front of sofas for beverage, book and decor placement | |
|---|---|---|
| reception lounge areas | Used in office waiting rooms or guest areas for a minimal modern aesthetic | |
| studio apartment open-plan spaces | Compact open-frame design reduces visual bulk in small living areas | |
| complementary furniture pairing | Matched with low-profile fabric or leather sofas with 450 mm seat height | |
| light commercial hospitality spaces | Suitable for boutique cafe lounge seating zones | |
| modern interior design schemes | Complements industrial, minimalist and contemporary decor styles |
EU Market Access Requirements* EN Standards
| domestic furniture table safety requirements | EN 12521:2015 strength and stability | |
|---|---|---|
| surface resistance to cold liquids | EN 12720:2009 +A1:2013 Level 3 |
Standards applicable to China-market projects
| tabletop formaldehyde emission | GB/T 39600E1 grade | |
|---|---|---|
| metal frame coating adhesion | GB/T 9286Grade 1 | |
| furniture stability for tables | GB/T 10357.1static load test |
This product must meet the following technical requirements: 1. tabletop formaldehyde emission: GB/T 39600E1 grade; 2. metal frame coating adhesion: GB/T 9286Grade 1; 3. furniture stability for tables: GB/T 10357.1static load test; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
