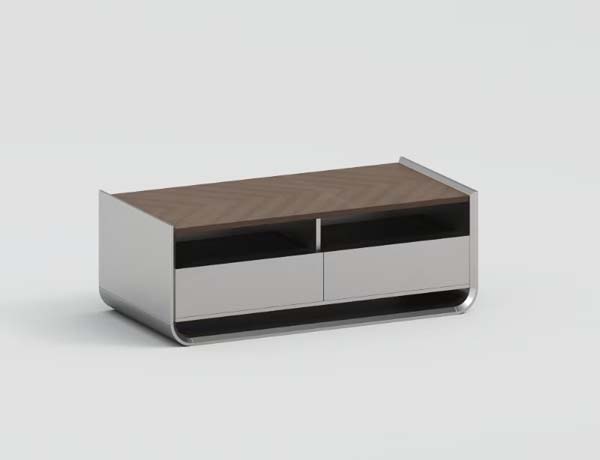

Product supplierCurved Polished Metal Frame Walnut Top Low Profile TV Media Console, Walnut wood veneer over 18mm MDF core, sealed with matte polyurethane
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2000 × 450 × 450 mm | |
|---|---|---|
| top panel thickness | 25 mm | |
| base recessed kickspace height | 120 mm | |
| upper drawer compartment height | 100 mm | |
| lower drawer compartment height | 150 mm | |
| single drawer front width | 950 mm | |
| central vertical divider width | 20 mm | |
| side frame metal thickness | 12 mm | |
| tinted glass drawer front thickness | 8 mm | |
| internal shelf depth in drawer compartments | 400 mm | |
| rear cable opening diameter | 60 mm | |
| maximum supported TV base width | 1800 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| top surface static load capacity | 159 kg | |
|---|---|---|
| maximum supported TV screen size | 75 in | |
| unit net weight | 70 kg | |
| drawer slide cycle rating | 50000 cycles | |
| anti-tip kit load rating | 50 kg | |
| finish scratch resistance | 3H pencil hardness | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| top surface | Walnut wood veneer over 18mm MDF core, sealed with matte polyurethane | |
|---|---|---|
| wraparound end frame | Polished 304 stainless steel, 1.2mm wall thickness, radius 60mm curved ends | |
| upper drawer fronts | Smoked black tempered tinted glass, IR-transparent for remote control use | |
| lower drawer fronts | Matte light gray lacquered MDF, scratch-resistant topcoat | |
| carcass internal structure | 15mm P2-grade particleboard, laminated in matte black for internal compartments | |
| drawer slides | Full-extension soft-close cold-rolled steel slides, zinc-plated corrosion protection | |
| rear panel | 3mm hardboard with pre-cut ventilation slots and cable routing openings | |
| base recess liner | Black matte laminated MDF forming the open kick channel along full unit length | |
| leveling feet | 8mm diameter adjustable nylon feet, 10mm adjustment range for uneven floors | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| upper glass-fronted drawers | Push-to-open full extension access for media components, IR signal permeable for remote operation | |
|---|---|---|
| lower lacquered drawers | Push-to-open full extension storage for media accessories, remotes and cables | |
| rear cable management | Two 60mm diameter grommet openings aligned with each storage bay for cable routing | |
| rear ventilation slots | Continuous 10mm wide slots along rear panel to dissipate heat from active AV equipment | |
| adjustable leveling | Four hidden adjustable feet at corners to compensate for uneven floor surfaces | |
| wall anchoring compatibility | Pre-drilled anti-tip anchor points on rear frame to secure unit to wall for child safety | |
| base open channel | Full-width recessed open kickspace to allow floor cleaning access and visual lightness | |
| Cable / Vent Opening Reference | 80 mm diameter; recommend 4rear cable/vent openings |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| living room main media wall | Positioned below wall-mounted flat screen TVs up to 75 inches for AV equipment storage | |
|---|---|---|
| modern minimalist residential interiors | Matches polished metal and walnut finishes for contemporary, luxury living spaces | |
| office reception lounge areas | Suitable for displaying screens and storing reception media equipment in high-end offices | |
| home theater setups | Enclosed, ventilated storage protects AV receivers, game consoles and media players | |
| condominium and small apartment spaces | Compact depth and streamlined form suits smaller living spaces without excessive bulk |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Applicable safety and strength requirements for domestic storage furniture and kitchen worktops | |
|---|---|---|
| EN 1022:2018 | Applicable stability test standard for seating and storage furniture to prevent tipping | |
| EN 13722:2004 | Applicable surface resistance test for furniture finishes to cold liquids and abrasion |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable general technical requirements for wooden furniture, including dimensional tolerances and finish quality | |
|---|---|---|
| GB 18580-2017 | Applicable formaldehyde emission limit (E1 ≤0.124mg/m³) for wood-based panel components | |
| GB/T 4893.4-2013 | Applicable surface wear resistance test standard for furniture finishes and veneer surfaces | |
| GB/T 10357.5-2011 | Applicable mechanical performance test for storage unit strength and stability |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable general technical requirements for wooden furniture, including dimensional tolerances and finish quality; 2. GB 18580-2017: Applicable formaldehyde emission limit (E1 ≤0.124mg/m³) for wood-based panel components; 3. GB/T 4893.4-2013: Applicable surface wear resistance test standard for furniture finishes and veneer surfaces; 4. GB/T 10357.5-2011: Applicable mechanical performance test for storage unit strength and stability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
