PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

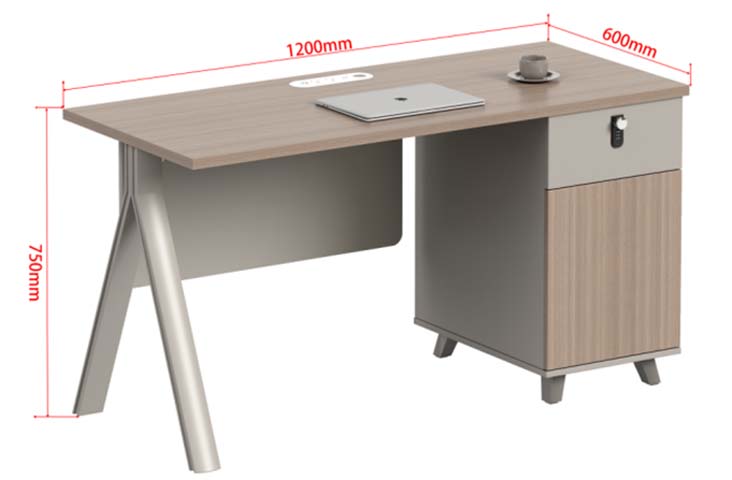

Overall dimensions (W × D × H)	1200 × 600 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop distributed static load	80 kg
Pedestal drawer static load	15 kg
Lower cabinet shelf load	20 kg
Recommended seated user capacity	1 person
Product net weight	38 kg
Work surface horizontal tolerance	2 mm per 1200 mm
Drawer slide durability	50000 open-close cycles
Warranty period	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm wood-grain melamine-faced particleboard with matching edge banding
Pedestal panels	18 mm laminated board in light oak and matte grey two-tone faces
Modesty panel	18 mm grey laminate privacy panel fixed beneath the rear work surface
Left support frame	Powder-coated steel twin legs in a splayed A-shaped configuration
Pedestal feet	Four grey molded polymer or die-cast support feet with floor contact pads
Hardware and lock	Steel drawer slides, combination lock and reinforced attachment screws

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed-height workstation	750 mm work surface paired with a standard task chair for seated laptop or computer work
Right-hand lockable storage	One upper lockable drawer and one lower cabinet door secure documents and personal items
Cable management	Rear oval cable grommet routes monitor and power cords from the desktop toward the under-desk area
Mixed support structure	Right pedestal carries one side while the splayed steel leg frame stabilizes the open knee bay

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstation	Suitable for one employee in open offices because the 1200 mm top, cable grommet and lockable pedestal support daily computer work.
Small private office or study room	Fits compact executive or home-office layouts where secure document storage is needed without a separate filing cabinet.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety and strength	EN 16139:2013+A1:2021 provides strength, durability and safety test methods for non-domestic seating-area furniture used as project reference.
Surface wear evaluation	EN 14355:2023 provides decorative laminate abrasion and surface-property test methods relevant to the desktop finish.
Office storage safety	EN 14073:2004 provides safety requirements applicable to the drawer and storage cabinet portion.
Office storage stability	EN 14073:2004 provides stability test methods relevant to the floor-standing pedestal.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Desk strength and durability	ANSI/BIFMA X2021provides load, fatigue and stability acceptance tests for desk products.
Storage pedestal performance	ANSI/BIFMA X2019provides strength, durability and stability tests for movable and fixed storage components.
Low-emission furniture materials	ANSI/BIFMA e2019provides furniture sustainability and material-emission credit criteria if specified by the buyer.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Dimensional and structural furniture standard	GB/T 3324applies to wooden furniture dimensions, workmanship and inspection of the desk assembly.
Furniture hardware acceptance	GB/T 3325applies to metal furniture components including the steel support frame and attachment hardware.
Formaldehyde emission control	GB 18580applies to formaldehyde emission from wood-based panels used in the laminated desk.
Fire safety for interior components	GB 20286applies only if the project specifies fire-performance classification for public-space furniture.

Standardized tender description text

This product must meet the following technical requirements:
1. Dimensional and structural furniture standard: GB/T 3324applies to wooden furniture dimensions, workmanship and inspection of the desk assembly.;
2. Furniture hardware acceptance: GB/T 3325applies to metal furniture components including the steel support frame and attachment hardware.;
3. Formaldehyde emission control: GB 18580applies to formaldehyde emission from wood-based panels used in the laminated desk.;
4. Fire safety for interior components: GB 20286applies only if the project specifies fire-performance classification for public-space furniture.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OD-SP1200-600-WL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OD-SP1200-600-WL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OD-SP1200-600-WLOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The OD-SP1200-WL is a 1200 mm single-pedestal office desk with a balanced two-tone appearance, suited to individual seated work. Its wood-grain work surface is paired with light oak and matte grey pedestal panels, while grey panel components and a splayed steel leg frame give the desk a structured commercial look. The layout places the storage pedestal on the right and leaves the left side as an open knee bay. A grey modesty panel is fixed beneath the rear edge of the work surface, helping to define the workstation and provide privacy in open settings. Construction combines panel-based storage with a steel support system. The top is made from 25 mm wood-grain melamine-faced particleboard with matching edge banding and has a finished top thickness of 50 mm. Pedestal panels use 18 mm laminated board, and the modesty panel is also 18 mm grey laminate. The open side is supported by a powder-coated steel twin-leg frame arranged in a splayed A shape; the main leg section is 80 mm with a 2 mm metal wall. The pedestal rests on four grey molded polymer or die-cast support feet with floor contact pads. Steel drawer slides, a combination lock and reinforced attachment screws complete the primary hardware. Functionally, the desk provides a fixed 750 mm work surface intended for use with a standard task chair. It is rated for one seated user and offers a main knee clearance area 680 mm high and 900 mm wide. The right-hand pedestal includes an upper lockable drawer and a lower cabinet door, providing secure storage for documents and personal items without requiring a separate filing cabinet. Cable management is integrated through a rear oval cable grommet with an 80 mm opening, routing monitor and power cords from the desktop toward the under-desk area, where a cable tray provides 120 mm of depth. This model is appropriate for open-plan office workstations, small private offices, study rooms and compact home-office layouts where one-person computer work, cable routing and lockable storage are priorities. The desktop is rated for an 80 kg distributed static load, the pedestal drawer for 15 kg, and the lower cabinet shelf for 20 kg. Drawer slide durability is rated for 50000 open-close cycles, and work surface horizontal tolerance is 2 mm per 1200 mm. For procurement and installation planning, note that the desk has a net weight of 38 kg and is supplied as a set requiring assembly, with a reference assembly time of 40 minutes per set. Packaging details in the supplied information vary between a two-carton reference and broader logistics data listing four cartons and 180 kg packaged gross weight, so shipment configuration should be confirmed at order placement.

1200 mm Single Pedestal Office Desk with Cable Port Specifications
