Automatic mm / inch conversion · Core engineering specifications

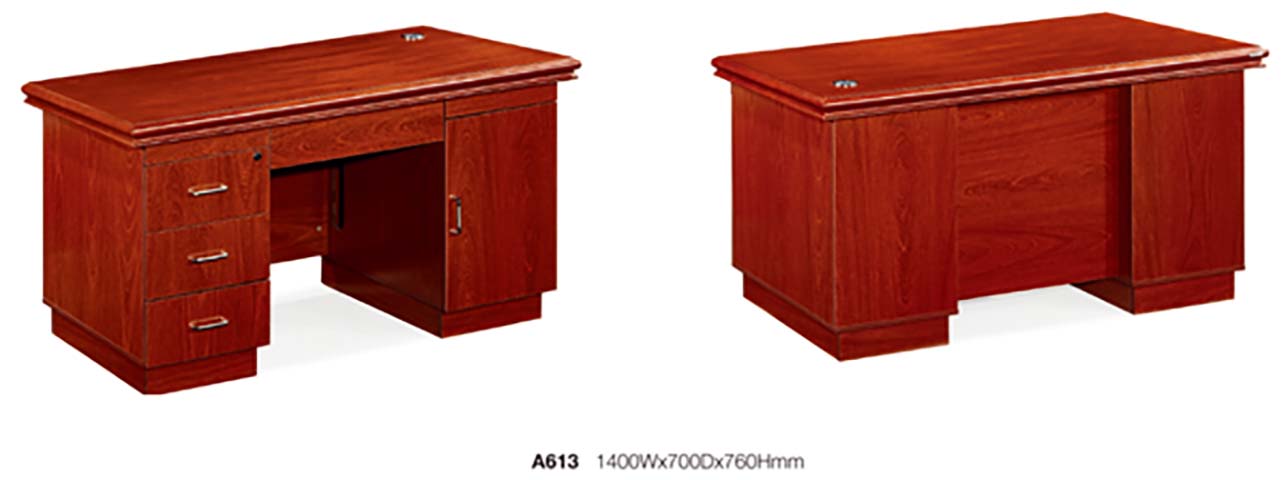

| Overall dimensions | 1400 x 700 x 760 mm | |
|---|---|---|
| Desktop thickness | 25 mm | |
| Molded edge trim thickness | 2 mm | |
| Knee well width (central opening) | 600 mm | |
| Knee well height (under-desk clearance) | 620 mm | |
| Knee well depth | 500 mm | |
| Left pedestal width (3-drawer section) | 450 mm | |
| Right pedestal width (door cabinet section) | 350 mm | |
| Pedestal plinth height | 80 mm | |
| Cable grommet diameter | 60 mm | |
| Drawer internal height (each of 3 left drawers) | 150 mm | |
| Right cabinet internal shelf height | 320 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Desktop static uniform load capacity | 100 kg | |
|---|---|---|
| Drawer slide cycle durability | 50000 open/close cycles | |
| Cabinet door hinge cycle durability | 80000 open/close cycles | |
| Recommended user capacity | 1 person | |
| Product net weight | 80 kg | |
| Finish abrasion resistance | 2000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
| Desktop substrate | E1-grade medium density fiberboard | |
|---|---|---|
| Desktop surface veneer | 0.6 mm thick red mahogany natural wood veneer | |
| Surface finish | UV-cured clear lacquer, hand-polished high-sheen finish | |
| Edge treatment | Molded solid wood edge banding with matching veneer wrap | |
| Drawer slides | 3-section full-extension cold-rolled steel ball-bearing slides | |
| Cabinet hinges | Cold-rolled steel soft-closing concealed hinges | |
| Pull handles | Polished zinc alloy bar pulls with chrome finish | |
| Drawer lock | Brass-keyed cam lock for top left drawer | |
| Cable grommet | ABS plastic round wire management grommet with brushed metal cover | |
| Pedestal plinth | Matching wood-veneer covered wood composite kickboard | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
Adjustment / rotation / tilt / mobility / storage features
| Drawer storage configuration | 3 vertically stacked drawers on left pedestal, top drawer lockable | |
|---|---|---|
| Cabinet storage configuration | Single hinged door cabinet on right pedestal with internal adjustable shelf | |
| Wire management | Single round desktop grommet for routing monitor and device power cables | |
| Drawer extension function | Drawers fully extend to 450mm for complete access to stored contents | |
| Cabinet door access | Hinged door opens 110 degrees to provide full access to cabinet storage | |
| Modesty panel function | Solid rear panel between pedestals blocks leg visibility and adds structural rigidity | |
| Foot support function | Closed plinth base distributes weight evenly and prevents floor scuffing | |
| Lock security function | Keyed lock secures top drawer for personal office supply storage | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| Private staff office workstation | Suitable for individual employee daily office work, document storage and computer use | |
|---|---|---|
| Home office study desk | Fits residential study rooms for remote work, writing and document organization | |
| Small meeting room side table | Can be used for meeting room document storage and supplementary work surface | |
| Administrative staff workstation | Suitable for reception or administrative staff use with lockable personal storage | |
| Government/enterprise standard workstation | Meets standard procurement size requirements for public sector office fitouts |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables - Part 1: Dimensions, for desk height and clearance dimensional requirements | |
|---|---|---|
| EN 13986:2004 | Wood-based panels for construction, E1 formaldehyde emission class for indoor use |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to wooden office desk structural and finish performance | |
|---|---|---|
| GB 18584-2001 | Limit of formaldehyde emission for wooden furniture, required E1 grade for indoor office use | |
| GB/T 4897.3-2003 | Particleboard/fiberboard specifications for furniture use, applicable to desk substrate |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wooden office desk structural and finish performance; 2. GB 18584-2001: Limit of formaldehyde emission for wooden furniture, required E1 grade for indoor office use; 3. GB/T 4897.3-2003: Particleboard/fiberboard specifications for furniture use, applicable to desk substrate; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
