| Submitted | Field | Original | Note / Status | |
|---|---|---|---|---|
No corrections yet. Use the flag at the end of a row to report an issue. | ||||
Automatic mm / inch conversion · Core engineering specifications

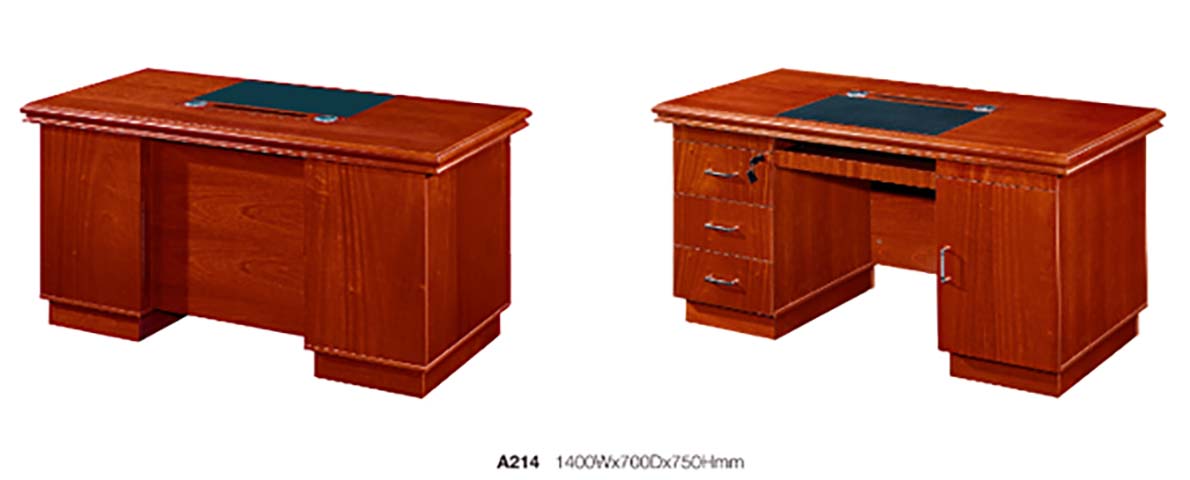

| overall dimensions | 1400 x 700 x 750 mm | |
|---|---|---|
| desktop thickness | 65 mm | |
| side and base panel thickness | 18 mm | |
| central seated knee clearance width | 520 mm | |
| knee clearance height (desktop to modesty panel bottom) | 600 mm | |
| left drawer pedestal width | 440 mm | |
| right storage cabinet pedestal width | 440 mm | |
| inset writing pad dimensions | 600 x 400 mm | |
| cable grommet diameter | 60 mm | |
| single drawer internal height | 160 mm | |
| right cabinet internal usable height | 560 mm | |
| decorative top edge overhang | 30 mm | |
| base plinth height | 80 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall |
Net weight / load capacity / users / durability
| desktop static uniform load capacity | 100 kg | |
|---|---|---|
| drawer slide cycle durability | 50000 cycles | |
| door hinge cycle durability | 80000 cycles | |
| net weight reference | 65 kg | |
| finish abrasion resistance | 2000 revolutions | |
| recommended maximum user weight for seated use | 120 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
| desktop substrate | E1-grade high-density fiberboard | |
|---|---|---|
| desktop surface finish | 0.6mm natural red-brown wood veneer with water-based polyurethane coating | |
| inset writing surface | 10mm thick black PU leather pad with stitched edge | |
| pedestal panels | 18mm thick particleboard with matching wood grain melamine backing | |
| edge trim | Solid wood molded edge profile with stained matching finish | |
| drawer and door hardware | Polished chrome-plated zinc alloy pulls and key lock | |
| drawer slides | Cold-rolled steel ball-bearing full-extension slides | |
| cabinet hinges | Cold-rolled steel soft-close concealed hinges | |
| cable grommets | Brushed metal desk grommets with plastic cable brushes | |
| base plinth construction | Engineered wood with matching veneer finish, anti-slip rubber foot pads | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
Adjustment / rotation / tilt / mobility / storage features
| left pedestal storage | 3 vertically stacked utility drawers, top drawer with keyed lock for secure document storage | |
|---|---|---|
| right pedestal storage | Single hinged door enclosing fixed shelf for bulk office supply and CPU storage | |
| cable management | Two 60mm diameter grommets in central writing area for monitor and peripheral cable routing | |
| drawer operation | Full-extension ball-bearing slides allow 100% drawer access with soft-close damping to prevent slamming | |
| seated access | Central open knee well with 600mm vertical clearance for ergonomic seated task work | |
| surface protection | Molded solid wood edge and scratch-resistant veneer finish resist impact damage from office equipment | |
| level adjustment | Adjustable foot pads under base plinths to compensate for uneven office flooring | |
| locking mechanism | Single key lock secures all three left drawers for confidential material storage | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| private executive office | Formal traditional design suitable for manager and director private offices, matches classic executive furniture aesthetic | |
|---|---|---|
| government and institutional workspace | Compliant with standard public procurement dimension and material requirements for official office use | |
| small meeting and interview room | 1.4m width supports dual-side seating for small 2-person meetings or candidate interviews | |
| home executive office | Compact footprint fits residential study spaces while providing formal professional appearance | |
| recommended pairing | Match with high-back executive leather office chair with 480 mm seat height for ergonomic alignment | |
| peripheral compatibility | Supports dual 24-inch monitor setup with remaining space for keyboard, documents and desk accessories |
EU Market Access Requirements* EN Standards
| EN 527-1:2011+A1:2019 | Office furniture - work tables and desks - part 1: dimensions, applicable to ergonomic dimension verification | |
|---|---|---|
| EN 527-2:2016+A1:2019 | Office furniture - work tables and desks - part 2: mechanical safety requirements, applicable to load and stability testing | |
| EN 13722:2004 | Furniture - assessment of surface resistance to cold liquids, applicable to veneer finish testing |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products - tests for general office desks, applicable to structural load and durability testing |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural and finish performance | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of formaldehyde emission for wooden furniture, applicable to substrate testing | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to structural panel performance verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural and finish performance; 2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of formaldehyde emission for wooden furniture, applicable to substrate testing; 3. GB/T 4897.3-2003: Particleboard for furniture use, applicable to structural panel performance verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
