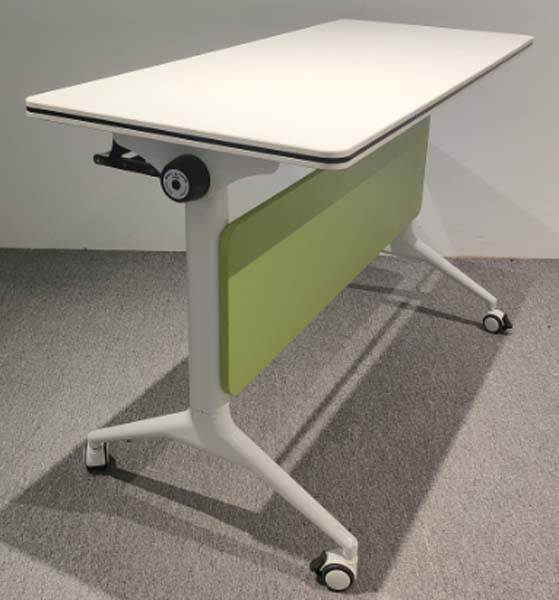

Product supplierMobile Flip-Top Nesting Training Table, E1-grade particleboard core
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 600 × 750 mm | |
|---|---|---|
| Tabletop thickness | 25 mm | |
| Edge band thickness | 2 mm | |
| Modesty panel dimensions (W×H) | 1100×400 mm | |
| Modesty panel thickness | 18 mm | |
| Leg splay base footprint | 650 mm | |
| Caster diameter | 50 mm | |
| Seated knee clearance height under tabletop | 680 mm | |
| Knee clearance depth under modesty panel | 450 mm | |
| Flipped tabletop storage height | 1100 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop static load capacity | 227 kg | |
|---|---|---|
| Product net weight | 31 kg | |
| Caster dynamic rolling load per wheel | 40 kg | |
| Maximum nesting stack depth per table | 150 mm | |
| Recommended number of users per table | 2 | |
| Tabletop surface abrasion resistance | 2000 cycles | |
| Flip mechanism cycle life | 10000 cycles | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | E1-grade particleboard core | |
|---|---|---|
| Tabletop surface | White thermal-fused melamine laminate | |
| Edge trim | Black PVC edge banding | |
| Support frame and legs | White powder-coated 1.2mm thick steel tubing | |
| Modesty panel | Light green thermofused laminate on particleboard | |
| Flip pivot mechanism | Black powder-coated stamped steel | |
| Height adjustment assembly | Steel inner/outer leg with nylon lock knob | |
| Casters | Dual-wheel nylon casters with brake lock | |
| Ganging connectors | Steel connecting brackets (included) | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Flip-top nesting function | Quick-release black lever rotates tabletop 90 degrees to vertical position for compact nested storage | |
|---|---|---|
| Height adjustment function | Manual knob lock adjusts table height between 760 mm for seated use | |
| Mobility function | Four 360-degree swivel casters allow easy repositioning between room layouts, two casters include brake locks to hold table in place during use | |
| Modesty privacy function | Full-width light green panel blocks view of seated users' legs from front for meeting/training privacy | |
| Row ganging function | Integrated connectors secure multiple tables end-to-end or side-by-side to create continuous conference or training room layouts | |
| Nesting storage function | Splayed cantilever leg design allows flipped tables to nest tightly together, reducing storage footprint by 75% compared to unfolded tables | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Shipping carton dimensions (L×W×H) | 1280×680×180 mm | |
|---|---|---|
| Gross shipping weight | 35 kg | |
| Packaged volume (CBM) | 0.157 | |
| Assembly time | 25 minutes | |
| 20ft container loading quantity | 170 units | |
| 40ft HQ container loading quantity | 420 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate training rooms | Nesting design allows quick reconfiguration between training sessions, exams and group work, with lockable casters for stable use during events | |
|---|---|---|
| Conference and meeting spaces | Tables can be ganged into long rows for large meetings, or separated into small group clusters, with integrated modesty panel for professional presentation | |
| Educational classrooms and lecture halls | Durable laminate surface withstands daily student use, adjustable height accommodates different seating types, compact storage for multi-use classroom spaces | |
| Temporary event and pop-up office spaces | Lightweight frame and casters allow fast deployment for temporary events, folding design minimizes storage space when not in use | |
| Co-working and flexible office spaces | Modular design supports individual work, small team collaboration or larger workshop events without requiring dedicated fixed furniture |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office furniture - Work tables and desks - Part 1: Dimensions, applicable for work surface height, depth and clearance ergonomic requirements | |
|---|---|---|
| EN 527-2:2002+A1:2003 | Office furniture - Work tables and desks - Part 2: Mechanical safety requirements, applicable for structural stability and load safety | |
| EN 13722:2004 | Furniture - Chairs and tables for educational institutions - Part 2: Safety requirements and test methods for tables, applicable for training/educational use durability |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.5 Desk and Table Products |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to tabletop and panel components for dimensional stability and surface finish quality | |
|---|---|---|
| GB/T 3325-2017 | General technical requirements for metal furniture, applicable to steel frame and leg structure for welding quality and coating adhesion | |
| GB 18584-2001 | Limit of harmful substances in indoor decorating and refurbishing materials - wood based furniture, applicable for formaldehyde emission limits on table and panel substrates | |
| GB/T 10357.1-1989 | Furniture mechanical performance test for tables - determination of strength and durability, applicable for static load and stability testing of the table structure |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to tabletop and panel components for dimensional stability and surface finish quality; 2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel frame and leg structure for welding quality and coating adhesion; 3. GB 18584-2001: Limit of harmful substances in indoor decorating and refurbishing materials - wood based furniture, applicable for formaldehyde emission limits on table and panel substrates; 4. GB/T 10357.1-1989: Furniture mechanical performance test for tables - determination of strength and durability, applicable for static load and stability testing of the table structure; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
