Automatic mm / inch conversion · Core engineering specifications
| Overall assembled dimensions | 1200 x 1200 x 750 mm | |
|---|---|---|
| Single table segment dimensions | 600 x 600 x 750 mm | |
| Tabletop thickness | 25 mm | |
| Central cable port dimensions | 300 x 80 mm | |
| Support leg outer diameter | 50 mm | |
| Caster diameter | 50 mm | |
| Under-table knee clearance height | 700 mm | |
| Under-table modesty panel height | 350 mm | |
| Frame cantilever leg spread | 550 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Single unit static tabletop load capacity | 120 kg | |
|---|---|---|
| Overall table weight (assembled) | 48 kg | |
| Recommended seating capacity | 4 people | |
| Caster rolling load rating per caster | 40 kg | |
| Folding mechanism cycle life | 5000 cycles | |
| Tabletop surface abrasion resistance | 2000 revolutions | |
| Frame static side load stability | 150 N | |
| Total assembled product weight | 48 kg | |
| Maximum recommended seated user capacity | 4 people | |
| Per-caster dynamic rolling load rating | 40 kg |
Core acceptance fields · Panels / hardware / frame / upholstery
| Tabletop substrate | 25mm thick E1-grade particleboard | |
|---|---|---|
| Tabletop surface finish | White matte melamine laminate | |
| Support frame and legs | 1.2mm thick cold-rolled steel with light gray powder coating | |
| Under-table modesty panels | 18mm thick particleboard with orange matte powder paint finish | |
| Casters | Black nylon twin-wheel swivel casters, 2 of 20 fitted with brake locks | |
| Folding hinge hardware | 2mm thick stamped steel brackets with zinc plating | |
| Edge banding | 2mm thick black PVC edge trim | |
| Central cable port grommet | Brushed ABS plastic trim | |
| Tabletop edge banding | 2 mm thick black PVC edge trim | |
| Segment connection hardware | M8 zinc-plated steel bolt and cam lock connectors | |
| Frame cross-brace supports | 1.0 mm thick cold-rolled steel with matching light gray powder coating | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up |
Adjustment / rotation / tilt / mobility / storage features

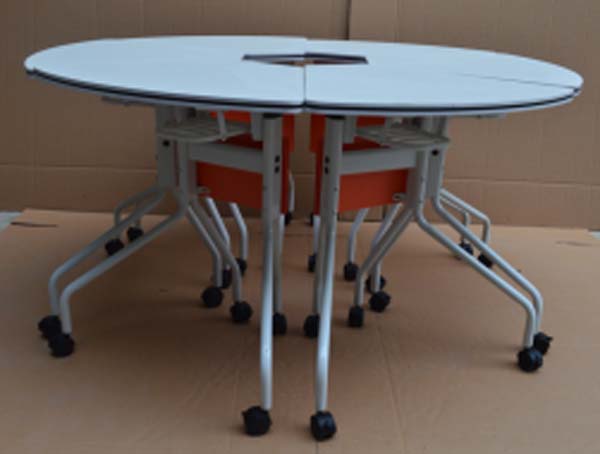

| Segment folding mechanism | Each 1/4 round segment flips vertically 90 degrees from flat working position to vertical nested position via steel release lever on each frame, allowing all segments to stack compactly for storage | |
|---|---|---|
| Mobile repositioning | All 20 legs are fitted with swivel casters, allowing the fully assembled table to be rolled across smooth flooring without disassembly; brake casters on front legs lock the table stationary during use | |
| Central cable management | Centered rectangular cable cutout at the joint of all four segments routes power, HDMI and network cables from floor outlets up to tabletop devices, eliminating loose cable runs across the work surface | |
| Modular configuration flexibility | Individual segments can be separated and recombined to form straight training rows, semicircular layouts or standalone 2-person work tables, in addition to the full round conference layout | |
| Nested storage function | When folded to vertical position, all four segments stack to a total footprint depth of 600mm, reducing storage space requirement by 75% compared to fully assembled flat position | |
| Edge impact protection | 2mm thick PVC edge banding around all tabletop edges absorbs impact from collisions during movement and protects panel edges from chipping with daily use | |
| Segment flip folding mechanism | Each 1/4 round segment flips vertically 90 degrees from horizontal working position to vertical nested position via frame-mounted steel release lever, allowing all segments to stack compactly for storage | |
| Perimeter edge impact protection | 2 mm thick PVC edge banding around all tabletop edges absorbs collision impact during movement and protects panel edges from chipping with daily use | |
| Static position locking | Perimeter brake casters engage with a foot-operated lever to lock wheel rotation, preventing unintended table movement during writing or device use | |
| Cable Management Capacity | Reference capacity 10 power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5 controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Number of shipping cartons | 4 cartons | |
|---|---|---|
| Single carton dimensions | 650 x 650 x 120 mm | |
| Total shipping gross weight | 55 kg | |
| Total shipping volume | 0.20 CBM | |
| Assembly time per full table | 15 minutes | |
| 20ft GP container loading quantity | 260 units | |
| 40ft HQ container loading quantity | 630 units | |
| Single carton external dimensions | 650 x 650 x 120 mm | |
| On-site assembly time per full table | 15 minutes | |
| Reference Package Count | 1 set / 2 cartons |
Recommended spaces / users / usage modes
| Corporate conference rooms | Suitable for small 4-person team meetings, department discussions and quick video conferences, with central cable port supporting shared monitor and laptop connections | |
|---|---|---|
| Training and education spaces | Folding modular design allows quick reconfiguration into group work clusters, straight rows or semicircular teaching layouts, with casters enabling staff to rearrange rooms between sessions in minutes | |
| Co-working and shared offices | Compact nesting storage enables the table to be stored away when open event space is needed, and deployed quickly for pop-up meetings, workshops or client consultations | |
| Temporary event and meeting setups | Mobile caster base allows on-site staff to move the fully assembled table without heavy lifting, supporting quick setup for temporary off-site meetings, job fairs or internal pop-up events | |
| Small collaborative work zones | Durable melamine surface resists coffee stains, pen marks and daily abrasion, supporting regular team brainstorming and collaborative project work | |
| Corporate training and education spaces | Folding modular design allows quick reconfiguration into group work clusters, straight training rows or semicircular teaching layouts, with casters enabling staff to rearrange rooms between sessions in minutes | |
| Co-working and shared office spaces | Compact nesting storage enables the table to be stored away when open event space is needed, and deployed quickly for pop-up meetings, workshops or client consultations |
EU Market Access Requirements* EN Standards
| Office furniture safety and strength requirement | EN 527:2002+A1:2019 | |
|---|---|---|
| Office furniture caster performance requirement | EN 12527:1998 | |
| Formaldehyde emission for wood panels | EN 312:2010 | |
| Office work table safety and strength requirement | EN 527:2002+A1:2019 | |
| Particleboard performance requirement | EN 312:2010 |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.5 Desk and Table Products |
|---|
Standards applicable to China-market projects
| Table dimensional and stability requirement | GB/T 3326 | |
|---|---|---|
| Wood-based panel formaldehyde emission limit | GB 18580 | |
| Surface coating harmful substance limit | GB 18581 | |
| Office table dimensional and stability requirement | GB/T 3326 |
This product must meet the following technical requirements: 1. Table dimensional and stability requirement: GB/T 3326; 2. Wood-based panel formaldehyde emission limit: GB 18580; 3. Surface coating harmful substance limit: GB 18581; 4. Office table dimensional and stability requirement: GB/T 3326; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
