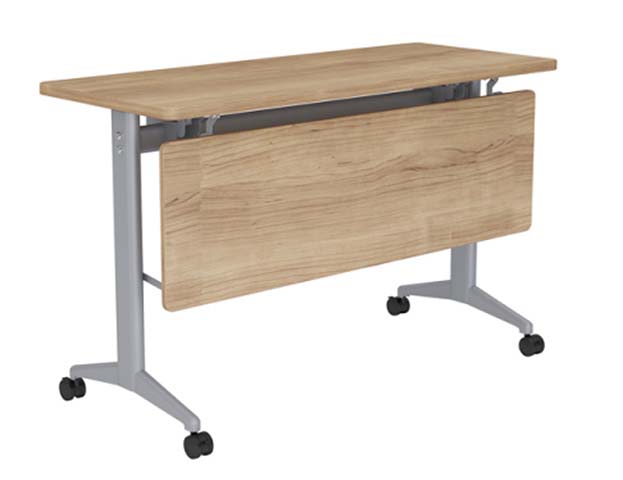

Light Oak Mobile Flip-Top Nesting Training Table with Gray T-Legs (model FTT-1260-LK) is listed under Flip Top Training Table, with overall dimensions of 1200 × 600 × 750 mm and main material of Particle‑board (PB). Load capacity: 136 kg. Certifications: Light,oak,finish,gray,metal,frame,flip-top,nesting,structure,lockable,caster,base. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1200 x 600 x 750 mm | |
|---|---|---|
| Tabletop thickness | 25 mm | |
| Edge banding thickness | 3 mm | |
| Under-table knee clearance height | 685 mm | |
| Modesty panel height | 400 mm | |
| Modesty panel thickness | 25 mm | |
| Steel leg tube thickness | 1.9 mm | |
| Caster diameter | 50 mm | |
| T-leg base foot spread | 580 mm | |
| Flipped vertical storage depth | 180 mm | |
| Table corner radius | 10 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static tabletop load capacity | 136 kg | |
|---|---|---|
| Surface scratch resistance | Grade 2 | |
| Surface stain resistance | Class 1 | |
| Net product weight | 25 kg | |
| Caster rolling load rating per caster | 40 kg | |
| Flip mechanism cycle life | 10000 cycles | |
| Nested storage capacity per linear meter | 5 tables | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop core | 25mm E1-grade particleboard | |
|---|---|---|
| Tabletop finish | Thermal-fused light oak melamine | |
| Frame and legs | Gray powder-coated carbon steel tube | |
| Modesty panel | 25mm melamine-faced particleboard | |
| Edge banding | 3mm PVC edge | |
| Casters | Black nylon double-wheel swivel casters |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Flip-top nesting function | Dual-lever release locks tabletop in horizontal use or vertical storage | |
|---|---|---|
| Mobile repositioning | Four swivel casters allow single-person movement without lifting | |
| Table linking capability | Pre-drilled connection points accept optional linking brackets | |
| Privacy modesty panel | Full-width panel blocks knee and leg visibility from opposite side |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate training rooms | Ideal for configurable multi-person training setups that require frequent reconfiguration | |
|---|---|---|
| Meeting and conference spaces | Suitable for temporary or permanent small meeting room seating arrangements |
EU Market Access Requirements* EN Standards
| EN 527-2:2002 | Office furniture work tables, safety and strength requirements for office work surfaces | |
|---|---|---|
| EN 527-3:2002 | Office furniture work tables, test methods for stability and structural durability | |
| EN 1729-2:2012 | Furniture for educational institutions, safety and strength requirements for tables |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Standard for desk products, structural performance and durability test requirements |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applies to tabletop and panel components | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applies to steel frame and leg structure | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, requires E1 grade compliance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applies to tabletop and panel components; 2. GB/T 3325-2017: Metal furniture general technical requirements, applies to steel frame and leg structure; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, requires E1 grade compliance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
