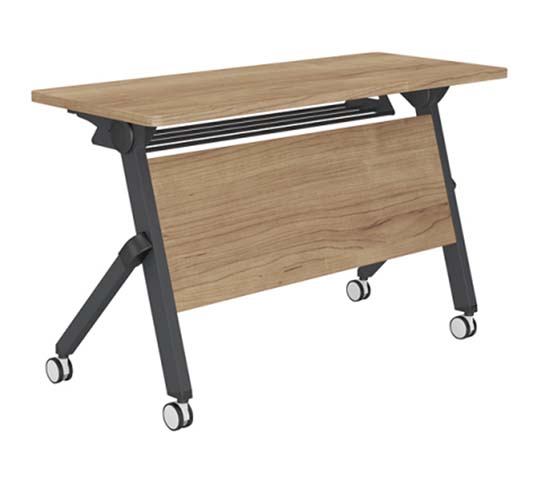

Light Oak Flip-Top Mobile Nesting Training Table with Wood Modesty Panel (model MFT-OAK1206-WMP-C) is listed under Flip Top Training Table, with overall dimensions of 1200 × 600 × 750 mm and main material of Particle‑board (PB). Load capacity: 150 kg. Certifications: light,oak,finish,black,metal,frame,flip-top,nesting,wheeled,mobility,matching,wood,modesty,panel. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall assembled dimensions | 1200 x 600 x 750 mm | |
|---|---|---|
| tabletop thickness | 25 mm | |
| modesty panel height | 400 mm | |
| modesty panel thickness | 18 mm | |
| steel frame tube thickness | 1.2 mm | |
| caster diameter | 50 mm | |
| seated under-table knee clearance height | 680 mm | |
| knee clearance width between legs | 1080 mm | |
| folded nesting depth per unit | 180 mm | |
| tabletop edge radius | 2 mm | |
| frame leg base spread width | 1140 mm | |
| frame leg base spread depth | 540 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| static tabletop load capacity | 150 kg | |
|---|---|---|
| product net weight | 27 kg | |
| caster rolling load rating per unit | 50 kg | |
| flip mechanism cycle rating | 10000 operations | |
| surface abrasion resistance | 2000 cycles | |
| warranty period | 5 years | |
| available finish options | 4 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| tabletop substrate | E1 grade MDF core | |
|---|---|---|
| tabletop surface | 0.6mm thermal-fused melamine laminate | |
| support frame | 1.2mm cold-rolled steel, matte black powder coat | |
| modesty panel | 18mm particleboard with matching oak melamine finish | |
| flip pivot hardware | Zinc-plated steel hinge with lock release | |
| casters | Dual-wheel TPU casters with brake locks |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| flip-top operation | Side lever release locks table in horizontal work or vertical nested position | |
|---|---|---|
| mobility system | Four 360° swivel casters with integrated brake locks for stationary use | |
| nesting storage | Vertical folded position allows multiple units to nest together for 70% storage space savings | |
| surface durability | Melamine surface resists scratches, stains, and incidental heat from office equipment |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| corporate training rooms | Configurable rows or group layouts for workshop and training sessions | |
|---|---|---|
| conference meeting spaces | Quick reconfiguration for variable meeting sizes and temporary events |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements for commercial training furniture | |
|---|---|---|
| EN 1335-2:2009 | Office furniture stability requirements for mobile wheeled tables | |
| EN 12521:2015 | Furniture strength durability safety for non-domestic seating-adjacent tables |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and performance standard for commercial office tables | |
|---|---|---|
| ANSI/BIFMA X5.11-2015 | Large occupancy office table structural load requirements |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to laminated table tops | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel support frames | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor office use |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to laminated table tops; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel support frames; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
