FT-MBL-1200-TBL

Code:1XPMWUV1
Request supplier quotes

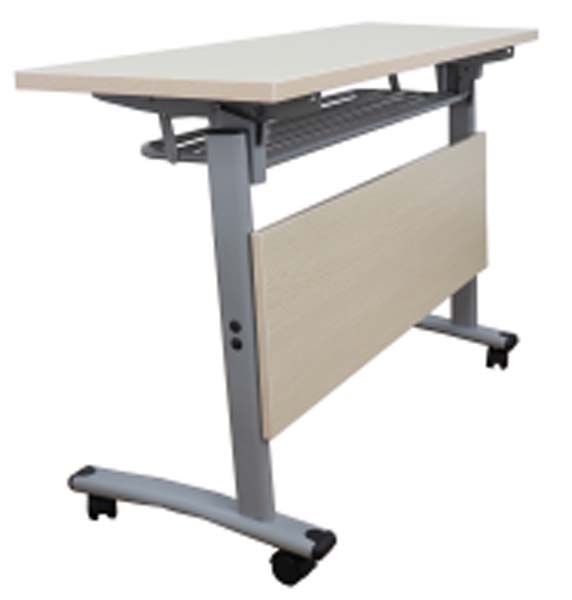

Mobile Flip-Top Nesting Training Table with Casters and Modesty Panel Key Specifications 2026-08-05 18:02

Popularity: 4
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

FT-MBL-1200-TBL

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions1200 x 500 x 750 mm
Tabletop thickness25 mm
Seated knee clearance height680 mm
Modesty panel dimensions1000 x 400 mm
T-shaped leg crossbar spread480 mm
Undertop cable tray width1050 mm
Caster diameter50 mm
Vertical steel leg column cross-section60 x 30 mm
Folded table storage depth180 mm
Finished Top Thickness45 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Static tabletop uniform load capacity150 kg
Product net weight22 kg
Recommended number of users1 person
Caster dynamic load rating per caster40 kg
Flip mechanism cycle rating10000 cycles
Tabletop surface abrasion resistance2000 revolutions
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Tabletop core and finish25mm E1-grade particleboard core with light wood grain melamine laminate, 2mm PVC edge banding
Leg frame material and finish1.5mm thick rectangular steel tubing, matte grey powder-coated finish
Modesty panel construction18mm melamine-faced particleboard matched to tabletop finish, fixed to steel frame brackets
Undertop cable tray1mm thick perforated black powder-coated steel, mounted with steel brackets to underside of tabletop
Flip hinge mechanism2.5mm thick cold-rolled steel with black powder coat, spring-assisted flip lever
Caster construction50mm black nylon dual-wheel casters, two lockable casters per T-base
Base crossbar end capsBlack impact-resistant PVC end caps fitted to all exposed steel crossbar ends
Frame fastenersZinc-plated steel M6/M8 assembly bolts and lock nuts
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Flip-top operationSpring-assisted side lever unlocks tabletop to rotate 90 degrees from horizontal use position to vertical nested storage position
Mobility and lockingFour dual-wheel casters allow omnidirectional movement; two casters per base include foot-operated brake locks to hold table fixed during use
Nesting storage capabilityVertical flipped orientation allows tables to nest closely together with 80mm gap between units, reducing storage footprint by 75% compared to unfolded configuration
Integrated cable managementFull-width perforated undertop steel tray routes power and data cables along the underside of the table, accessible from seated user position
Modesty panel privacyFull-height front modesty panel blocks view of seated user legs from front side, suitable for formal training and meeting spaces
Linking compatibilityFrame-mounted metal connection brackets on side of table allow adjacent tables to be linked in straight rows for classroom or conference layouts
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Shipping carton dimensions1260 x 560 x 210 mm
Gross shipping weight per unit26 kg
Shipping volume per unit (CBM)0.148 CBM
Assembly time on site10 minutes
20ft GP container loading quantity180 units
40ft HQ container loading quantity460 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 1100× 300 mm
Reference Packaged Gross Weight90 kg/set in 2 cartons
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Corporate training roomsIdeal for flexible training environments where room layout requires frequent reconfiguration between lecture, group work, and storage modes
Co-working and flexible office spacesSuitable for hot-desking, temporary meeting, and event setups that require easy repositioning and compact storage when not in use
Educational classrooms and seminar roomsAppropriate for higher education and corporate education settings, provides durable work surface for writing, laptops, and course materials
Temporary meeting and event spacesSuitable for pop-up meetings, conference breakout sessions, and temporary event workstations that can be quickly deployed and stored
Small meeting room configurationsCan be ganged in rows or grouped to form larger conference surfaces for 12person meetings as needed
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 527-1:2011 Office furniture - Work tables and desks - Part 1: DimensionsApplicable standards and test results require confirmation
EN 527-2:2016 Office furniture - Work tables and desks - Part 2: Mechanical safety requirementsApplies to structural stability, load capacity, and safety of moving parts for commercial use
EN 1335-1:2020 Office furniture - Office work chair - Part 1: DimensionsReference standard to confirm table seated clearance is compatible with standard office task chair dimensions
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021 Desk Products - TestsApplies to static load, stability, durability, and caster performance testing for commercial grade office tables
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017 General technical requirements for wooden furnitureApplies to tabletop and modesty panel dimensional stability, edge banding adhesion, and surface finish quality for acceptance testing
GB/T 3325-2017 General technical requirements for metal furnitureApplies to steel frame weld quality, powder coating adhesion, and structural load performance
GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furnitureSpecifies maximum formaldehyde emission limits for particleboard components, required for indoor office air quality compliance
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3324-2017 General technical requirements for wooden furniture: Applies to tabletop and modesty panel dimensional stability, edge banding adhesion, and surface finish quality for acceptance testing;
2. GB/T 3325-2017 General technical requirements for metal furniture: Applies to steel frame weld quality, powder coating adhesion, and structural load performance;
3. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture: Specifies maximum formaldehyde emission limits for particleboard components, required for indoor office air quality compliance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · FT-MBL-1200-TBL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · FT-MBL-1200-TBL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · FT-MBL-1200-TBLOpen Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

This unbranded mobile flip-top nesting training table (model FT-MBL-1200-TBL) is designed to balance flexible space utilization, commercial-grade durability, and user comfort for dynamic work and learning environments. Visually, it features a light wood-grain melamine tabletop paired with a matte grey powder-coated steel frame, accented by black hardware, casters, and a matching light wood modesty panel for a clean, professional aesthetic that blends seamlessly with most commercial interior palettes. Its T-shaped leg bases sit flush to the floor, with the modesty panel mounted centrally at seated knee height to mntn a streamlined, uncluttered profile during use. Constructed for heavy, repeated use, the table features a melamine-faced particleboard work surface with impact-resistant PVC edge banding, supported by a rectangular steel tube frame connected with corrosion-resistant zinc-plated fasteners. A cold-rolled steel spring-assisted flip hinge connects the top to the frame, while four black nylon dual-wheel casters mount to the base ends, two of which include foot-operated locks to hold the table steady during use. A perforated steel cable tray sits beneath the tabletop, and a steel-framed matching modesty panel attaches to the front leg assembly, with black PVC end caps fitted to all exposed crossbar ends to prevent floor damage. Core functional features support flexible space management: a side-mounted lever unlocks the tabletop to rotate 90 degrees from horizontal to vertical, allowing tables to nest closely together to cut unused storage footprint significantly. Side-mounted linking brackets let users connect multiple tables in strght rows or grouped layouts to suit different event formats, while the under-top cable tray routes power and data cords neatly to reduce worksurface clutter. The modesty panel provides full leg privacy for seated users, and the lockable casters enable smooth, omnidirectional repositioning without heavy lifting. When folded, the table sits in a slim profile for compact storage between uses. This table is well suited for corporate training rooms, co-working flexible offices, higher education seminar spaces, temporary conference breakout areas, and small meeting rooms that require frequent layout changes between lecture setups, group work sessions, and cleared floor space. The single-seat worksurface accommodates laptops, documents, and meeting materials comfortably, with ergonomic knee clearance compatible with standard office task chairs. For procurement teams, key considerations include noting that specified component material grades and finish specifications require supplier bill of materials confirmation prior to final order placement. On-site assembly is streamlined, requiring only caster installation and mechanism adjustment for rapid deployment. Bulk shipping quantities are optimized for standard freight contners, supporting large-scale furnishing projects for multi-room facilities. Buyers should also verify caster compatibility with specific facility floor types prior to installation to ensure smooth long-term operation.
