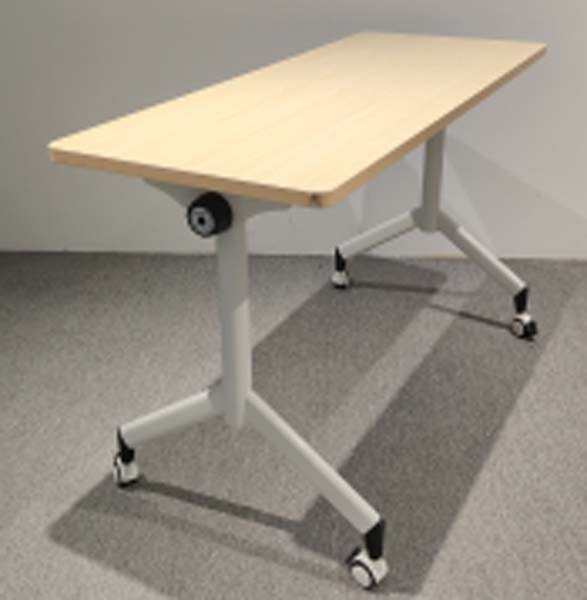

Product supplierHeight-Adjustable Mobile Training Table with Light Wood Laminate Top and Y-Shaped Steel Base, Particle board core
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 600 × 1090 mm | |
|---|---|---|
| Tabletop thickness | 25 mm | |
| Under-table knee clearance height (lowest position) | 680 mm | |
| Under-table knee clearance height (highest position) | 1020 mm | |
| Y-base outrigger spread per support | 700 mm | |
| Caster diameter | 50 mm | |
| Height adjustment range | 340 mm | |
| Tabletop edge radius | 30 mm | |
| Vertical leg tube diameter | 50 mm | |
| Distance between two vertical leg supports | 900 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static uniform load capacity | 160 kg | |
|---|---|---|
| Net product weight | 50 kg | |
| Recommended dynamic load during height adjustment | 23 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Caster rolling load rating per caster | 40 kg | |
| Seating capacity | 2 users | |
| Frame finish corrosion resistance | 48 hours | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | Particle board core | |
|---|---|---|
| Tabletop surface | Thermally fused melamine laminate, light oak finish | |
| Tabletop edge banding | 2mm thick impact-resistant PVC, rounded profile | |
| Support frame | 1.5mm thick cold-rolled steel tube | |
| Frame finish | Light gray powder coating | |
| Height adjustment mechanism | Steel telescoping inner/outer leg tubes with rotary lock knob | |
| Caster brackets | Black nylon reinforced plastic housing with steel mounting stems | |
| Caster wheels | White polypropylene wheel material, swivel design | |
| Adjustment knob | Black ABS plastic with metal lock insert | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment operation | Rotary knob lock releases telescoping legs for stepless height adjustment between seated and standing positions, knob re-engages to lock at desired height | |
|---|---|---|
| Mobility function | Four 360-degree swivel casters enable quick reconfiguration for training sessions, group meetings, or temporary work setups | |
| Stability lock note | Casters include integrated brake mechanisms to lock table in place during use | |
| Adjustment load restriction | Height adjustments must be made with no more than 23kg of load on the tabletop to prevent mechanism damage | |
| Seating access | Open under-table design without modesty panel or cross-brace obstruction allows flexible seating on both long sides of the table | |
| Nesting compatibility | Y-base leg profile allows tables to be nested closely together for compact storage when not in use | |
| Surface maintenance | Laminate surface resists common stains, spills, and scratches for easy cleaning in high-traffic training environments | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of packages | 1 carton per unit | |
|---|---|---|
| Export carton dimensions | 1270 x 670 x 130 mm | |
| Gross shipping weight | 55 kg | |
| Shipping volume per unit | 0.11 CBM | |
| 20ft GP container loading quantity | 240 units | |
| 40ft HQ container loading quantity | 580 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate training rooms | Ideal for flexible corporate training setups, enabling quick room reconfiguration between lecture, group work, and exam layouts via caster mobility | |
|---|---|---|
| Small meeting rooms | Suitable for huddle spaces and temporary meeting setups, with adjustable height to accommodate both seated meetings and standing presentation use | |
| Classroom and educational environments | Appropriate for vocational schools, university seminar rooms, and workshop spaces requiring durable, reconfigurable work surfaces | |
| Co-working spaces | Fits co-working and event spaces where work surfaces need to be repositioned for different event sizes and formats | |
| Temporary event workstations | Usable for pop-up events, trade show booths, and temporary project spaces where quick setup and compact storage are required |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office furniture - Work tables and desks - Part 1: Dimensions, applicable to height adjustment range and clearance requirements for office work surfaces | |
|---|---|---|
| EN 527-2:2002+A1:2006 | Office furniture - Work tables and desks - Part 2: Mechanical safety requirements, applicable to stability, load capacity, and mechanism safety testing | |
| EN 1335-3:2009 | Office furniture - Office work chairs - Part 3: Safety test methods (reference for caster rolling and durability, complementary for mobile furniture applications) |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Standard for Office Furnishings - Desks/Workstations, applicable to static load, durability, stability, and cycle testing for commercial training tables | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Standard for Office Furnishings - Storage, seating, and tables - Casters, applicable to caster load rating, rolling durability, and brake performance verification |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to tabletop structural performance, edge treatment, and dimensional tolerance verification | |
|---|---|---|
| GB/T 3325-2017 | General technical requirements for metal furniture, applicable to steel frame welding quality, powder coating adhesion, and structural load testing | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables, applicable to static load, durability, and stability verification for contract office use |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to tabletop structural performance, edge treatment, and dimensional tolerance verification; 2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel frame welding quality, powder coating adhesion, and structural load testing; 3. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to static load, durability, and stability verification for contract office use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
