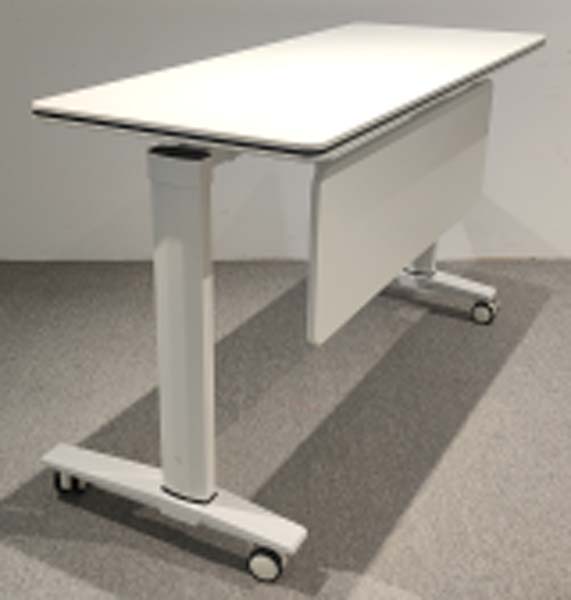

Product supplierMobile Height-Adjustable Fliptop Training Table, 18mm MDF substrate
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1400 × 600 × 750 mm | |
|---|---|---|
| Worktop thickness | 25 mm | |
| Adjustable height range lowest position | 680 mm | |
| Adjustable height range highest position | 1100 mm | |
| T-leg base length per side | 620 mm | |
| T-leg base width | 80 mm | |
| Caster diameter | 50 mm | |
| Modesty panel height | 350 mm | |
| Column outer diameter | 80 mm | |
| Edge trim thickness | 2 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static worktop load capacity | 120 kg | |
|---|---|---|
| Product net weight | 32 kg | |
| Recommended seated user capacity | 2 people | |
| Lift mechanism rated cycles | 5000 | |
| Caster dynamic load rating per wheel | 40 kg | |
| Worktop surface abrasion resistance | 2000 cycles | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop core | 18mm MDF substrate | |
|---|---|---|
| Worktop surface | 0.6mm high-pressure white matte laminate | |
| Lift columns | 1.5mm thick powder-coated cold-rolled steel | |
| T-shaped base feet | 2.0mm thick powder-coated steel | |
| Modesty panel | 18mm white melamine-faced particleboard | |
| Caster wheels | Hard nylon outer ring with soft polyurethane tread | |
| Worktop edge banding | 2mm thick PVC trim in matching white | |
| Lift release actuator | ABS plastic control lever | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Pneumatic height adjustment | Single-hand lever actuated, adjusts between 680mm and 1100mm height with 100N lifting force to support seated and standing use | |
|---|---|---|
| Tabletop fliptop mechanism | Worktop tilts 90 degrees to vertical position for compact nesting storage when not in use | |
| 360-degree mobility | Four dual-wheel casters allow full directional movement without lifting, enabling quick room reconfiguration | |
| Caster locking function | Two lockable casters on one base foot lock both wheel rotation and swivel to hold table in fixed position during use | |
| Nesting storage compatibility | Tables stack vertically when top is flipped, reducing storage footprint by 75% compared to unfolded configuration | |
| Integrated modesty privacy panel | Full-width rear panel blocks view of under-table space and user legs from seated eye level for meeting room privacy | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of packages | 1 unit | |
|---|---|---|
| Packed carton dimensions | 1480 x 680 x 180 mm | |
| Gross packaged weight | 37 kg | |
| Packaging volume (CBM) | 0.182 CBM | |
| Assembly time | 20 minutes | |
| 20ft GP container loading quantity | 160 units | |
| 40ft HQ container loading quantity | 400 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate training rooms | Suits multi-person training sessions, as it can be quickly repositioned and nested to change room layout between lectures, group work and exam setups | |
|---|---|---|
| Flexible co-working spaces | Ideal for hot-desking and temporary workstations, with height adjustment to accommodate different user preferences between seated and standing work | |
| Small meeting and huddle spaces | Provides a compact 2-person work surface for quick meetings, laptop work and collaborative sessions, with lockable casters to hold position during use | |
| Educational classrooms and seminar spaces | Durable laminate surface and mobile design support heavy daily use, and nestable storage reduces clutter when rooms are repurposed for events | |
| Temporary event and conference setups | Easy to move and store for pop-up events, registration desks and breakout sessions, requiring minimal setup time |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Applicable standards and test results require confirmation | |
|---|---|---|
| EN 527-2:2016 | Office furniture - Work tables and desks - Part 2: Mechanical safety requirements, applicable to verify structural stability, load capacity and tip resistance | |
| EN 1725-2:2010 | Furniture - Height-adjustable work tables - Part 2: Safety, strength and durability requirements for lifting mechanisms |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products - Tests for structural durability, load capacity, stability and cyclic wear for commercial office table use | |
|---|---|---|
| ANSI/BIFMA X5.11-2015 | Height-Adjustable Worksurfaces - Tests for lift mechanism durability, load support and safety during height adjustment |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for worktop and panel structural integrity, finish durability and dimensional stability verification | |
|---|---|---|
| GB/T 24821-2009 | Office desks and tables, applicable for worktop load rating, stability, leg strength and safety requirement validation | |
| GB 18584-2001 | Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture, applicable for formaldehyde emission verification for indoor office use |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for worktop and panel structural integrity, finish durability and dimensional stability verification; 2. GB/T 24821-2009: Office desks and tables, applicable for worktop load rating, stability, leg strength and safety requirement validation; 3. GB 18584-2001: Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture, applicable for formaldehyde emission verification for indoor office use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
