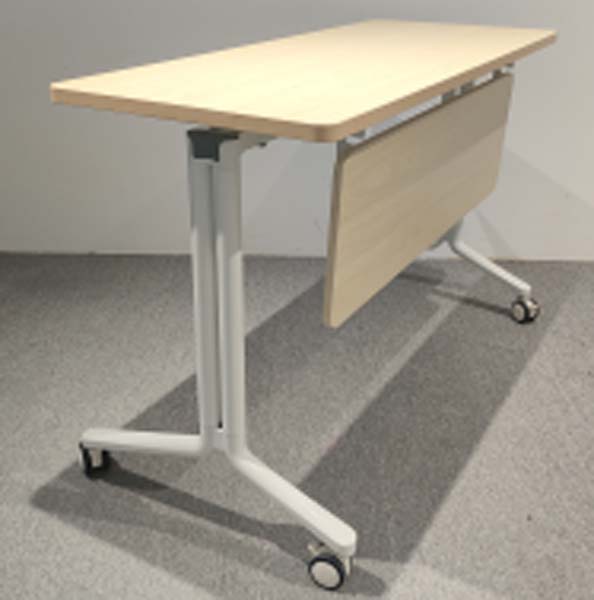

Name: Mobile Folding Nesting Training Table
Brand: YINGYAN
SKU: 89F4C9

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 600 × 750 mm
Tabletop thickness	25 mm
Fixed working height from floor to table surface	750 mm
Undertable knee clearance height	700 mm
Vertical leg column cross-section	60 x 30 mm
Caster diameter	50 mm
Folded profile depth when tabletop is flipped vertical	220 mm
Lower leg support foot length per frame	380 mm
Modesty panel height	350 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static vertical load capacity on tabletop	120 kg
Product net weight	24 kg
Caster dynamic rolling load rating per unit	30 kg
Recommended seating capacity per table	1 person
Flip mechanism cycle rating	10000 cycles
Nesting storage density per linear meter of wall space	4 tables
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Tabletop core	High density particleboard core
Tabletop surface	Light oak wood-grain high pressure laminate
Tabletop edge banding	2mm thick matching PVC edge
Frame and leg finish	Textured white powder coated steel
Flip mechanism hardware	Zinc plated steel hinge assembly
Caster wheels	Black TPU tire with white polypropylene hub
Integrated modesty panel	18mm thick matching laminate panel
Caster brake components	Glass filled nylon brake pad
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Flip-top operation	Spring-assisted single-lever tabletop fold, locks in 0 degree horizontal use and 90 degree vertical storage positions
Caster mobility	4 total casters, 2 front casters fitted with total lock brakes that prevent both rolling and swivelling
Nesting compatibility	Uniform leg offset allows tables to nest closely together when folded, no inter-table clearance required when stacked for storage
Integrated cable routing	Recessed gap between tabletop and modesty panel allows power and data cables to run along rear frame
Modesty screening	Full height rear modesty panel blocks leg visibility between seated users facing the same direction
Seamless alignment	Uniform frame geometry allows adjacent tables to be aligned flush to create extended continuous work surfaces for group activities
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Shipping carton dimensions	1260 x 660 x 140 mm
Gross shipping weight per carton	28 kg
Shipping volume per unit	0.117 CBM
Assembly time per unit	20 minutes
20ft GP container loading quantity	230 units
40ft HQ container loading quantity	560 units
Packaging materials	5-layer double wall corrugated carton, EPS foam corner protection, PE plastic wrap
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate training rooms	Suitable for frequent layout reconfiguration between lecture, group work and exam setups, with easy movement and compact storage between sessions
Co-working flexible event spaces	Allows space managers to quickly rearrange seating for workshops, meetings or open events, and store tables when open floor space is required
Educational classroom and seminar spaces	Provides standard ergonomic work height for student laptop and writing use, with durable surfaces that withstand regular daily use
Temporary meeting and pop-up work areas	Easy to deploy in underutilized spaces for short-term project work, with lockable casters to keep tables stable during use
Conference breakout areas	Enables fast setup of small group discussion stations, with matching finish to suit modern office interior palettes

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office furniture - Worktables and desks - Safety, strength and durability requirements, applies to structural load and stability testing
EN 1335-1:2020	Office furniture - Office work chair dimensions for coordination with fixed table height to ensure ergonomic seated clearance
EN 12529:2004	Castors and wheels for office furniture, applies to mobility, load capacity and braking performance of table casters

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk Products - Test standard for vertical static load, horizontal stability and cyclic durability of commercial tables
ANSI/BIFMA X5.9-2019	Storage/Casegood and Table Mobility - Performance standard for castered furniture rollability, brake strength and tip resistance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Office furniture: tables, desks and workstations - Standard dimension and dimensional tolerance requirements, applies to 750mm working height and clearances
GB/T 4897.3-2015	Particleboard for furniture use - Physical and mechanical property requirements for tabletop substrate load and stability
GB 18584-2001	Indoor decorating and refurbishing materials - Limit of harmful substances in wood based furniture, required for indoor air quality compliance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3326-2016: Office furniture: tables, desks and workstations - Standard dimension and dimensional tolerance requirements, applies to 750mm working height and clearances;
2. GB/T 4897.3-2015: Particleboard for furniture use - Physical and mechanical property requirements for tabletop substrate load and stability;
3. GB 18584-2001: Indoor decorating and refurbishing materials - Limit of harmful substances in wood based furniture, required for indoor air quality compliance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MFT-NEST-1260

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MFT-NEST-1260

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MFT-NEST-1260Open Export Tool

Quick Actions

Post an RFQ

Product Description

The YINGYAN MFT-NEST-1260 Mobile Folding Nesting Training Table is a purpose-built commercial seating solution designed for flexible, high-traffic shared spaces. Its streamlined visual profile pairs a light oak wood-grain high-pressure laminate tabletop with a textured white powder-coated steel frame, creating a clean, modern aesthetic that complements contemporary interior design palettes. A matching laminate modesty panel runs the full rear height under the tabletop, delivering a cohesive, uncluttered look while supporting consistent visual alignment when tables are arranged in rows or connected for group work. Constructed for long-term commercial use, the table features a high-density particleboard core with 2mm thick impact-resistant PVC edge banding to protect against chipping during movement and reconfiguration. The steel frame uses rectangular vertical leg columns and T-shaped lower support feet sized for tip-resistant stability, paired with 50mm twin-wheel non-marking TPU casters with glass-filled nylon brake components. The zinc-plated steel flip mechanism operates via a spring-assisted single lever, locking securely in both horizontal use and vertical folded positions without requiring tools. The table holds an evenly distributed static vertical load of 120kg, suitable for laptops, documents, and meeting materials, with a rated 10,000-cycle flip mechanism lifespan for regular daily reconfiguration. Functional design elements support flexible space use: when folded to its vertical position, the table nests tightly with identical units, allowing storage density to free open floor space when areas are not in use. Two front casters feature total lock brakes that prevent both rolling and swivelling for stable positioning during use, while a recessed gap between the tabletop and modesty panel routes power and data cables to eliminate surface tangling. Adjacent tables align flush to create extended continuous work surfaces, and the modesty panel blocks leg visibility between seated users for personal privacy. The 750mm fixed working height aligns with standard ergonomic seated positioning, with 700mm of undereatable knee clearance to accommodate standard office chairs. This table is well-suited for corporate training rooms requiring frequent layout shifts between lectures, group work, and exams; co-working flexible event spaces hosting workshops, meetings, or open gatherings; educational classrooms and seminar spaces supporting daily student writing and device use; temporary pop-up work areas for short-term projects; and conference breakout areas for small group discussions. For procurement, teams should note the product ships in flat-pack packaging with protective 5-layer double wall corrugated cartons and EPS foam corner protection, with assembly time at 20 minutes per unit using only the included hex key, no special tools required. Recommended warranty coverage aligns with 5 years for structural components and 3 years for hardware, and buyers should confirm final finish options and exact material specifications with suppliers prior to bulk orders, as multiple finish options are available to match existing interior schemes. The 24kg net weight allows single-person movement and repositioning, reducing staff labor for space turnover.

Mobile Folding Nesting Training Table Specifications
