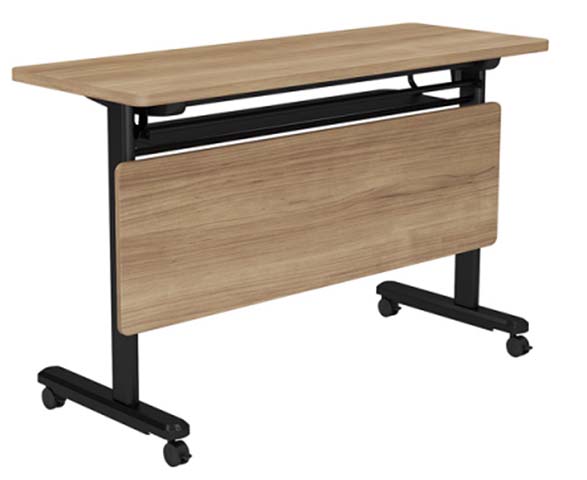

Light Oak Flip-Top Mobile Training Table with Modesty Panel and Locking Casters (model FT-MT1400-LBK) is listed under Flip Top Training Table, with overall dimensions of 1400 × 700 × 750 mm and main material of Particle‑board (PB). Load capacity: 136 kg. Certifications: light,wood,finish,black,metal,frame,mobile,nesting,structure,flip-top,mechanism,integrated,modesty,panel. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 1400 x 700 x 750 mm | |
|---|---|---|
| Tabletop thickness | 25 mm | |
| Edge banding thickness | 3 mm | |
| Modesty panel height | 350 mm | |
| Modesty panel width | 1200 mm | |
| Vertical leg post size | 60 x 30 mm | |
| Horizontal base foot length | 680 mm | |
| Caster diameter | 55 mm | |
| Under-table knee clearance height | 680 mm | |
| Under-table knee clearance depth | 620 mm | |
| Steel frame wall thickness | 1.2 mm | |
| Nested storage depth per unit | 150 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static tabletop load capacity | 136 kg | |
|---|---|---|
| Flip mechanism cycle rating | 10000 cycles | |
| Net product weight | 30 kg | |
| Single person seating capacity | 2 people | |
| Caster static load rating per caster | 40 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Warranty period (frame and top) | 10 years | |
| Available finish count | 6 colors | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop core and finish | 25mm E1-grade particleboard core with light oak melamine laminate | |
|---|---|---|
| Modesty panel construction | 18mm matching melamine particleboard, finished on exposed face | |
| Frame material and finish | 1.2mm thick steel tubing with black textured powder-coat finish | |
| Edge protection | 3mm thick black PVC edge banding on all tabletop perimeters | |
| Caster components | Nylon wheel with black polypropylene housing, steel swivel stem, locking brake | |
| Flip mechanism hardware | 3mm thick reinforced steel pivot brackets with zinc-plated fasteners |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Flip-top operation | Side lever release pivots tabletop 90 degrees vertical for nesting storage | |
|---|---|---|
| Mobility and locking | Four 360-degree swivel casters with total lock brakes on each foot | |
| Table linking capability | Optional steel connector brackets align multiple tables into continuous rows | |
| Surface maintenance | Melamine surface resists scratches, stains and minor scalds, wipes clean with standard cleaners |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary application space | Corporate training rooms, seminar spaces, and conference breakout areas | |
|---|---|---|
| Recommended user group | Corporate training coordinators, education facility managers, and co-working space operators |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| Applicable performance standard | ANSI/BIFMA X2021 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
