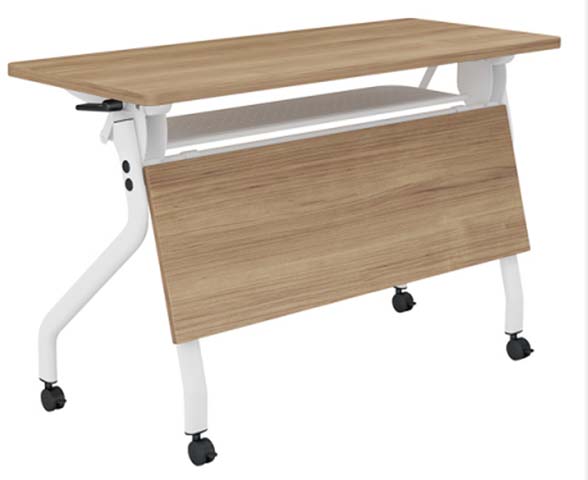

Light Oak Flip-Top Mobile Nesting Training Table with Modesty Panel (model FTM-TT-LO1524) is listed under Flip Top Training Table, with overall dimensions of 1524 × 610 × 750 mm and main material of Particle‑board (PB). Load capacity: 136 kg. Certifications: Light,oak,woodgrain,finish,white,metal,frame,mobile,nesting,design,flip-top,mechanism,lockable,casters,modesty,panel. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Primary Component Thickness | 40 mm according to load-bearing role | |
|---|---|---|
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static tabletop load capacity | 136 kg | |
|---|---|---|
| Product net weight | 33 kg | |
| Nesting density per linear meter | 5 tables | |
| Frame static load test rating | 227 kg | |
| Caster rolling durability cycles | 40000 | |
| Warranty period | 10 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | E0-grade particleboard core with light oak melamine laminate | |
|---|---|---|
| Support frame | 16-gauge steel tube with white powder-coated finish | |
| Modesty panel | Matching light oak laminate particleboard | |
| Casters | Black polyurethane tread with nylon housing, total-lock brake | |
| Flip mechanism hardware | Cold-rolled steel lever and pivot assembly with black plastic handle | |
| Edge protection | 2mm thick matching light oak PVC edge banding |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Flip-top operation | Side-mounted black lever unlocks tabletop to rotate 90 degrees to vertical for nesting | |
|---|---|---|
| Mobility and locking | Four total-lock casters allow easy repositioning; locks engage both wheel swivel and roll | |
| Table ganging compatibility | Built-in linking clips allow adjacent tables to connect in rows | |
| Nesting storage | Flipped tables nest tightly in straight rows to reduce storage footprint by 70% |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate training rooms | Configurable rows of tables support instructor-led training sessions with easy reconfiguration | |
|---|---|---|
| Multi-function meeting spaces | Nesting storage allows quick conversion between meeting and open event layouts |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| Applicable performance standard | ANSI/BIFMA X2020 | |
|---|---|---|
| Applicable durability standard | ANSI/BIFMA X2021 |
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
