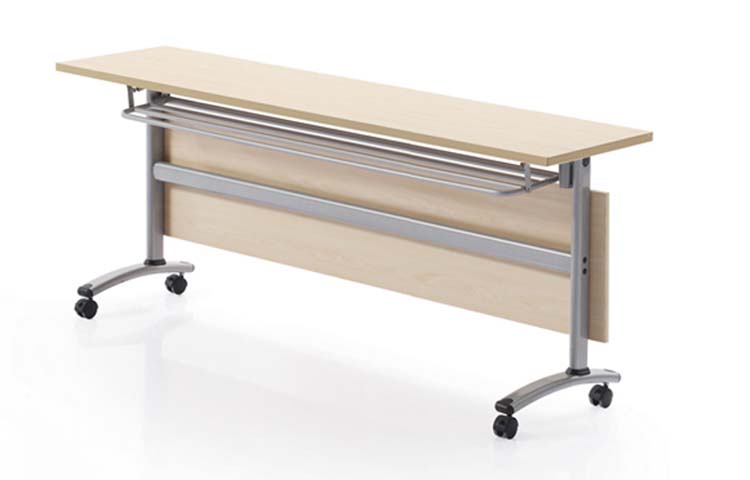

Mobile Flip-Top Nesting Training Table with Casters (model FT-MBL-1800-MAP) is listed under Flip Top Training Table, with overall dimensions of 1800 × 600 × 750 mm and main material of Particle‑board (PB). Load capacity: 318 kg. Certifications: Commercial,furniture,Flip-top,nesting,structure,Wheeled,mobile,base,Integrated,modesty,panel,Under-table,wire,shelf. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1800 x 600 x 750 mm | |
|---|---|---|
| Tabletop thickness | 25 mm | |
| Under-table knee clearance height | 680 mm | |
| Leg vertical column diameter | 50 mm | |
| Curved foot base length per leg | 480 mm | |
| Caster diameter | 75 mm | |
| Modesty panel height | 400 mm | |
| Modesty panel thickness | 18 mm | |
| Under-table wire shelf width | 1700 mm | |
| Under-table wire shelf depth | 150 mm | |
| Horizontal support crossbeam height | 250 mm from floor | |
| Nesting storage depth per table (flipped position) | 200 mm | |
| Edge banding thickness | 2 mm | |
| Steel frame tubing wall thickness | 1.2 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Uniform static tabletop load capacity | 318 kg | |
|---|---|---|
| Product net weight | 61 kg | |
| Recommended seating capacity | 3 persons | |
| Caster dynamic load rating per wheel | 40 kg | |
| Flip mechanism cycle rating | 10000 operations | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop surface | High-pressure light maple laminate over E1 particleboard core | |
|---|---|---|
| Frame and legs | Silver powder-coated 1.2mm wall thickness steel tubing | |
| Modesty panel | Light maple wood-composite panel matching tabletop finish | |
| Under-table shelf | Chrome-plated steel wire rack | |
| Casters | Black nylon swivel casters with rubber tread and dual-lock brakes | |
| Edge protection | Black 2mm thick T-mold PVC edge banding with rounded corners |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Flip-top mechanism | Tabletop tilts 90 degrees vertically to enable compact nested storage | |
|---|---|---|
| Caster locking function | 2 of 4 casters feature brake locks to secure table in fixed position | |
| Cable management support | Under-table wire shelf provides routing for power and data cables | |
| Modular layout compatibility | Tables can be nested or arranged in rows for training or meeting spaces |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate training rooms | Suitable for reconfigurable seating layouts with quick nesting storage between sessions | |
|---|---|---|
| Conference and seminar spaces | Supports temporary meeting setups that can be cleared for multi-purpose room use |
EU Market Access Requirements* EN Standards
| EN 15372:2016 | Furniture - Strength, durability and safety for non-domestic tables | |
|---|---|---|
| EN 12521:2015 | Furniture - Strength, durability and safety for domestic tables (reference for general use) |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | American National Standard for Desk Products - Tests for durability and safety | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units (reference for attached shelf load requirements) |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to tabletop and panel components | |
|---|---|---|
| GB/T 11718-2021 | Medium density fiberboard/particleboard, applicable to table core material requirements | |
| GB/T 5296.6-2004 | Instructions for use of furniture, applicable for commercial labeling requirements |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to tabletop and panel components; 2. GB/T 11718-2021: Medium density fiberboard/particleboard, applicable to table core material requirements; 3. GB/T 5296.6-2004: Instructions for use of furniture, applicable for commercial labeling requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
