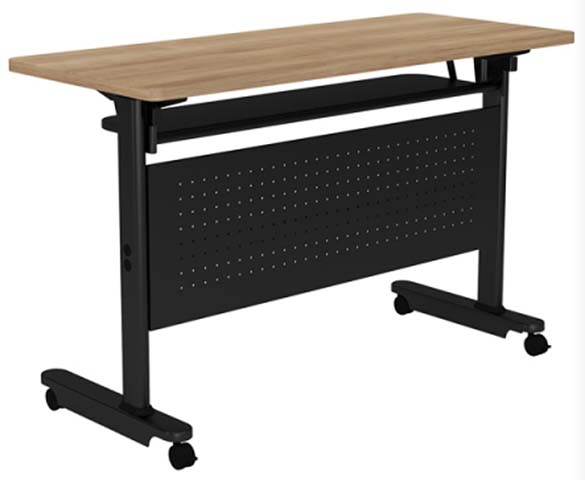

Mobile Nestable Flip-Top Training Table with Perforated Modesty Panel (model TRN-FLIP-1400-MBL) is listed under Flip Top Training Table, with overall dimensions of 1400 × 600 × 750 mm and main material of Particle‑board (PB). Load capacity: 120 kg. Certifications: Mobile,flip-top,nesting,perforated,modesty,panel,training,furniture. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Primary Component Thickness | 40 mm according to load-bearing role | |
|---|---|---|
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static tabletop load capacity | 120 kg | |
|---|---|---|
| Product net weight | 28 kg | |
| Seating capacity | 2 persons | |
| Caster dynamic load rating per caster | 40 kg | |
| Nesting storage depth per table | 180 mm | |
| Modesty panel cable pass-through capacity | 4 cables | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | High-density particleboard core, class E1 grade | |
|---|---|---|
| Tabletop surface finish | Light oak woodgrain high-pressure laminate, 0.8mm wear layer | |
| Frame and leg finish | Black matte powder-coated steel, 1.5mm wall thickness | |
| Modesty panel material | 1.2mm perforated cold-rolled steel, black powder-coated | |
| Caster material | Black nylon housing and wheel, hard-floor rated | |
| Flip mechanism hardware | Zinc-plated steel hinge and locking latch |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Tabletop flip mechanism | Spring-assisted manual flip with positive lock in horizontal and vertical positions | |
|---|---|---|
| Mobility feature | Four lockable swivel casters, two per T-base, for easy repositioning | |
| Nesting storage capability | Vertical flipped orientation allows side-by-side nesting to 180mm per unit depth | |
| Cable management | Open gap above modesty panel for routing power and data cables from table to floor |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate training rooms | Suitable for rearrangeable 2-person workstations during employee training sessions | |
|---|---|---|
| Educational classroom spaces | Ideal for higher education seminar rooms requiring flexible seating arrangements |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
