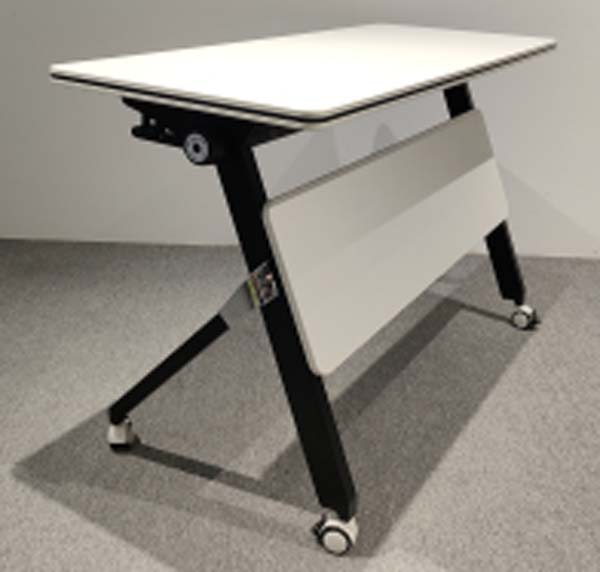

Product supplierMobile Foldable Flip-Top Training Table, 25mm thick MDF core
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 600 × 750 mm | |
|---|---|---|
| Tabletop thickness | 25 mm | |
| Knee clearance height under tabletop | 680 mm | |
| Knee clearance width between front legs | 520 mm | |
| Modesty panel dimensions | 900 x 400 mm | |
| Leg tube cross-section | 40 x 20 mm | |
| Caster diameter | 50 mm | |
| Tabletop overhang past frame | 50 mm | |
| Frame base spread (front to back) | 580 mm | |
| Collapsed storage thickness | 120 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net product weight | 22 kg | |
|---|---|---|
| Static tabletop load capacity | 150 kg | |
| Caster dynamic load rating per unit | 40 kg | |
| Maximum seated user capacity | 1 person | |
| Folding mechanism cycle life | 10000 cycles | |
| Caster rolling durability | 20000 cycles | |
| Tabletop impact resistance | ≥10 N·m | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | 25mm thick MDF core | |
|---|---|---|
| Tabletop surface | White melamine laminate wear layer | |
| Tabletop edge banding | Black PVC edge trim | |
| Support frame | Powder-coated matte black steel tubing | |
| Modesty panel | Dual-tone light gray and white MDF panel | |
| Flip hinge mechanism | Zinc-plated steel locking hinge | |
| Casters | Polyurethane wheel with plastic hub | |
| Fold release trigger | Steel lever with plastic end cap | |
| Cross bracing | 1.2mm thick steel cross bar | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Flip-top operation | Tabletop rotates 90 degrees from horizontal working position to vertical storage position via side-mounted hinge lock | |
|---|---|---|
| Position locking | Circular dial lock secures tabletop in horizontal work position; release trigger on leg unlocks for folding | |
| Mobile relocation | Four 360-degree swivel casters allow easy movement by one person; two casters include brake tabs to lock table in fixed use position | |
| Nested storage | Vertical folded profile allows tables to nest closely with 80mm gap between units | |
| Cable management | Rear gap between tabletop and modesty panel provides 50mm channel for power and data cables | |
| Linkable configuration | Matching side connection brackets allow multiple tables to be joined into continuous row layouts for classroom settings | |
| Floor protection | Soft polyurethane caster tread prevents scuffing on carpet, vinyl and wood office flooring | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of packages | 1 unit per carton | |
|---|---|---|
| Packaging carton dimensions | 1270 x 670 x 140 mm | |
| Packaged gross weight | 25 kg | |
| Per-unit shipping volume (CBM) | 0.12 CBM | |
| 20ft container loading quantity | 220 units | |
| 40ft HQ container loading quantity | 560 units | |
| On-site assembly time | 20 minutes | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate training rooms | Fits flexible layouts for up to 30 attendees in standard training spaces, with fast reconfiguration between sessions | |
|---|---|---|
| Co-working flexible spaces | Suitable for hot-desking and temporary workstations that can be moved or stored when floor space is needed for events | |
| Educational classrooms and seminar spaces | Supports both lecture-style rows and small group layouts for adult learning environments | |
| Temporary event and meeting setups | Ideal for pop-up meetings, workshops and conference breakout sessions requiring fast setup and teardown | |
| Small home office use | Compact 1200mm width fits home workspaces, with foldable storage to free space when not in use | |
| Exam and testing facilities | Stable flat surface with lockable casters for secure fixed positioning during assessments |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables and desks, safety and strength requirements for commercial workspace use | |
|---|---|---|
| EN 1335-2:2009 | Office furniture stability requirements, applicable to prevent tipping during movement and use | |
| EN 12529:1998 | Castors for office furniture, load and durability requirements for mobile table casters |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products standard, applicable for tabletop load, leg strength and durability performance benchmarks | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage/accessories caster standard, applicable for caster load and rolling durability |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to tabletop substrate and panel components for strength and dimensional stability | |
|---|---|---|
| GB/T 24821-2009 | Office tables, applicable for safety, load capacity and stability performance verification | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor air quality compliance for training space use | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables, applicable for static load and durability testing |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to tabletop substrate and panel components for strength and dimensional stability; 2. GB/T 24821-2009: Office tables, applicable for safety, load capacity and stability performance verification; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor air quality compliance for training space use; 4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable for static load and durability testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
