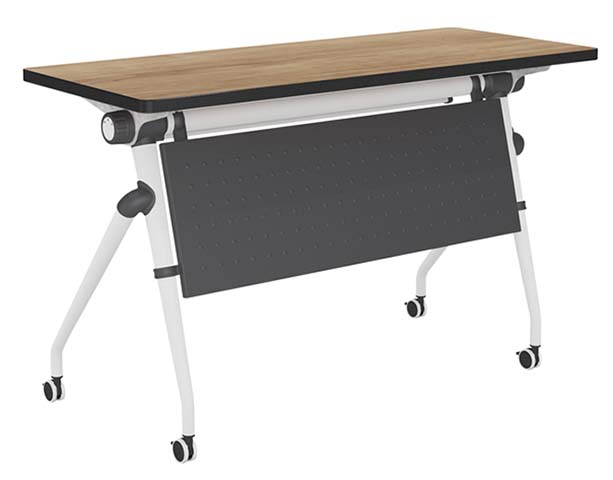

Flip-Top Mobile Nesting Training Table with Perforated Modesty Panel (model FTT-MOB-1206-PANEL) is listed under Flip Top Training Table, with overall dimensions of 1200 × 610 × 750 mm and main material of Particle‑board (PB). Load capacity: 136 kg. Certifications: Mobile,design,Flip-top,nesting,structure,Perforated,modesty,panel,Wood-effect,finish. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1200 x 610 x 750 mm | |
|---|---|---|
| Tabletop thickness | 25 mm | |
| Seated knee clearance height | 660 mm | |
| Steel leg tube diameter | 57 mm | |
| Steel frame wall thickness | 1.2 mm | |
| Perforated modesty panel size | 1050 x 320 mm | |
| Perforated modesty panel thickness | 1.2 mm | |
| Caster wheel diameter | 50 mm | |
| Edge banding thickness | 2 mm | |
| Nested table clearance gap | 111 mm | |
| Folded vertical profile depth | 120 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop static load capacity | 136 kg | |
|---|---|---|
| Product net weight | 25 kg | |
| Surface scratch resistance | 2 N | |
| Caster rolling load rating per wheel | 40 kg | |
| Recommended user capacity | 2 people | |
| Flip mechanism cycle life | 10000 cycles | |
| Warranty period | 10 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | 25mm thick particleboard core with thermal-fused melamine wood-effect finish | |
|---|---|---|
| Table edge protection | Black PVC T-mold edge banding with rounded corners | |
| Support frame | 1.2mm thick powder-coated white steel tubing | |
| Modesty panel | 1.2mm thick perforated black powder-coated steel panel | |
| Caster wheels | 50mm diameter nylon twin-wheel casters, 2 with foot-operated brakes | |
| Flip hinge hardware | Reinforced nylon and steel pivot hinges with release lever |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Flip-top storage function | Dual-side release lever flips tabletop to vertical position for compact nesting storage | |
|---|---|---|
| Mobile repositioning | Four swivel casters allow easy movement between room layouts | |
| Nesting compatibility | Tables nest together in rows with minimal gap for high-density storage | |
| Modesty privacy function | Full-width perforated steel panel blocks view of seated users' legs |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate training rooms | Suitable for rearrangeable multi-participant training sessions requiring quick layout changes | |
|---|---|---|
| Meeting and conference spaces | Used for temporary meeting setups that can be nested away when not needed |
EU Market Access Requirements* EN Standards
| EN 15372:2016 | Furniture - Strength, durability and safety for non-domestic tables | |
|---|---|---|
| EN 12521:2015 | Furniture - Strength, durability and safety for domestic tables |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Standard for desk products, applicable to strength and stability testing |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to tabletop and structural components | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel frame and hardware | |
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to tabletop and structural components; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel frame and hardware; 3. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
