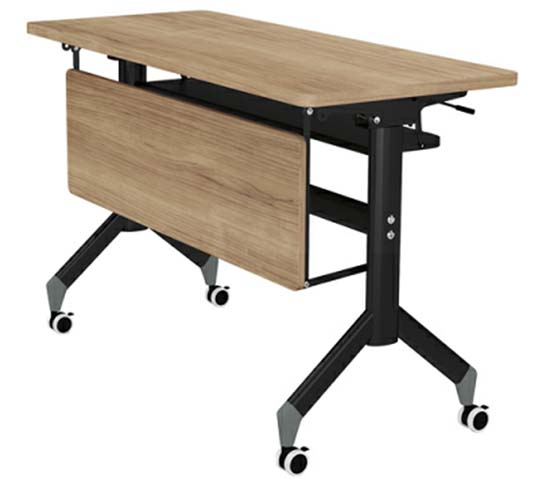

Light Oak Mobile Height-Adjustable Flip-Top Training Table (model TRN-MOB-ADJ-1200-OAK) is listed under Flip Top Training Table, with overall dimensions of 1200 × 600 × 1143 mm and main material of Particle‑board (PB). Load capacity: 136 kg. Certifications: Light,oak,wood,finish,black,metal,frame,flip-top,folding,structure,four-wheel,mobile,base,height-adjustable,column,integrated,modesty,panel. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1200 x 600 x 1143 mm | |
|---|---|---|
| Minimum tabletop height | 724 mm | |
| Tabletop thickness | 32 mm | |
| Modesty panel size | 1100 x 400 x 18 mm | |
| Support column tubing diameter | 60 mm | |
| Caster diameter | 75 mm | |
| Under-table seated knee clearance height | 680 mm | |
| Folded nesting depth (table vertical) | 200 mm | |
| Leg splay base width (per end) | 650 mm | |
| Edge banding thickness | 2 mm | |
| Adjustment lever length | 120 mm | |
| Cross-brace clearance height | 120 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net product weight | 74 kg | |
|---|---|---|
| Static tabletop load capacity | 136 kg | |
| Recommended seated user capacity | 2 users | |
| Caster rolling durability rating | 50000 cycles | |
| Flip mechanism cycle rating | 10000 operations | |
| Height adjustment cycle rating | 10000 operations | |
| Surface scratch resistance rating | 2 N | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop surface | Light oak-grain high-pressure laminate | |
|---|---|---|
| Tabletop core | 25mm thick high-density particleboard | |
| Edge banding | 2mm thick black PVC rounded edge trim | |
| Frame and support columns | 1.5mm thick powder-coated black steel tubing | |
| Modesty panel | 18mm thick melamine-faced particleboard, light oak finish | |
| Casters | 75mm diameter dual-wheel polyurethane swivel casters with locking brakes |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment | Side-lever actuated pneumatic adjustment with 419mm travel between seated and standing heights | |
|---|---|---|
| Flip-top storage | Quick-release pivot lock folds tabletop vertical for nesting with 130mm gap between nested units | |
| Mobility and locking | Four 360-degree swivel casters with individual brake locks for stable positioning during use | |
| Modular configuration | Integrated ganging bracket slots to connect multiple tables into straight or angled training layouts |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate training rooms | Flexible reconfiguration for daily classes, workshops and exams with quick storage between sessions | |
|---|---|---|
| Co-working flexible spaces | Easy repositioning for pop-up meetings, hot-desking zones and temporary event layouts |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
