Name: Mobile Height-Adjustable Office Training Desk
Brand: YINGYAN
SKU: V6DE9Q

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 600 × 850 mm
Desktop thickness	25 mm
Height adjustment range	850 mm
Seated knee clearance height under desktop (lowest position)	675 mm
Modesty panel dimensions	1100 x 400 x 1.2 mm
Vertical leg tube dimension	60 x 30 mm
T-base horizontal foot length	550 mm
Caster diameter	50 mm
Desktop edge chamfer radius	5 mm
Knee opening depth between legs	520 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Unit net weight	32 kg
Static desktop load capacity	160 kg
Recommended user capacity	2 people
Caster rolling load rating per wheel	40 kg
Height adjustment lock static load	160 kg
Laminate surface abrasion resistance	2000 cycles
Frame powder coating scratch resistance	1H pencil hardness
Wobble tolerance at maximum height	2 mm lateral deflection
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop core	18mm MDF/particleboard substrate
Desktop surface	0.6mm high-pressure reddish woodgrain laminate
Desktop edge banding	2mm PVC edge banding
Leg and frame construction	1.5mm thick cold-rolled steel tube
Frame finish	White electrostatic powder coating
Modesty panel	1.2mm thick perforated white steel plate
Height adjustment mechanism	Steel telescopic sleeve with manual lever lock
Caster wheels	50mm dual-wheel PU swivel casters with brake
Caster brake components	Nylon brake lever and steel axle
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Manual height adjustment	Lever-operated telescopic lock adjusts desktop between 700mm and 850mm height
360-degree swivel caster mobility	Four dual-wheel casters allow single-person repositioning on carpet or hard floors
Caster brake locking	Each caster includes a foot-operated brake that locks wheel rotation to fix desk position during use
Splicing compatibility	Flat rectangular profile allows edge-to-edge connection with identical desks to form extended conference or training layouts
Perforated modesty panel ventilation	Slotted perforations in the steel modesty panel allow air circulation for under-desk equipment and cable pass-through
Cantilever leg open access	T-base cantilever leg design leaves unobstructed knee space across the full desktop width
Stain-resistant work surface	Laminate desktop surface resists liquid spills and common office stains, allowing wipe-clean maintenance
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Number of shipping cartons	1 carton
Shipping carton dimensions	1270 x 670 x 150 mm
Gross shipping weight	36 kg
Shipping volume per unit	0.128 CBM
Assembly time	30 minutes
20ft GP container loading quantity	120 units
40ft HQ container loading quantity	290 units
Packaging materials	5-layer corrugated carton, EPS foam corner protection, PE bag wrap, hardware packet with assembly tool
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate training rooms	Movable, height-adjustable design supports flexible training layouts, adjustable height for seated activities or standing presentations
Meeting and conference spaces	Spliceable rectangular top connects with identical units to form larger conference surfaces for small to medium meetings
Classroom and education environments	Durable laminate surface and steel frame withstand daily high-use student activity, open knee space accommodates standard classroom seating
Open office collaborative zones	Mobile design enables quick arrangement for impromptu team work sessions, raised height position supports standing collaborative work
Temporary event and exhibition spaces	Lightweight wheeled construction allows fast setup and breakdown for pop-up events, trade shows or temporary workstations
Small office and home office secondary workstations	Compact 1200x600mm footprint fits smaller spaces, lockable wheels prevent movement during dedicated work use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011 Office furniture - Work tables and desks - Part 1: Dimensions	Applicable for desktop height, depth and knee clearance dimensional requirements for office work surfaces
EN 527-2:2016 Office furniture - Work tables and desks - Part 2: Mechanical safety requirements	Applicable for static load, stability and structural strength testing requirements for mobile office desks
EN 1335-3:2009 Office furniture - Office work chair - Part 3: Test methods	Reference standard for caster rolling durability and floor protection performance relevant to mobile furniture wheels

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021 Desk Products - Tests	Applicable reference for desktop static load, leg strength, stability and caster durability testing for commercial office desks
ANSI/BIFMA X5.11-2015 Large Occupant Office Chairs - Casters	Reference for caster load rating and rolling cycle durability requirements for mobile office furniture components

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017 General technical requirements for wooden furniture	Applicable for desktop substrate, laminate adhesion, edge banding and dimensional tolerance requirements for wooden office furniture components
GB/T 3325-2017 Metal furniture general technical requirements	Applicable for steel frame welding strength, powder coating adhesion, caster mounting and structural stability requirements
GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture	Applicable for formaldehyde emission limits from the engineered wood desktop core, required for indoor office air quality compliance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017 General technical requirements for wooden furniture: Applicable for desktop substrate, laminate adhesion, edge banding and dimensional tolerance requirements for wooden office furniture components;
2. GB/T 3325-2017 Metal furniture general technical requirements: Applicable for steel frame welding strength, powder coating adhesion, caster mounting and structural stability requirements;
3. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture: Applicable for formaldehyde emission limits from the engineered wood desktop core, required for indoor office air quality compliance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MHT-ADJ-12060-W

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MHT-ADJ-12060-W

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MHT-ADJ-12060-WOpen Export Tool

Quick Actions

Post an RFQ

Product Description

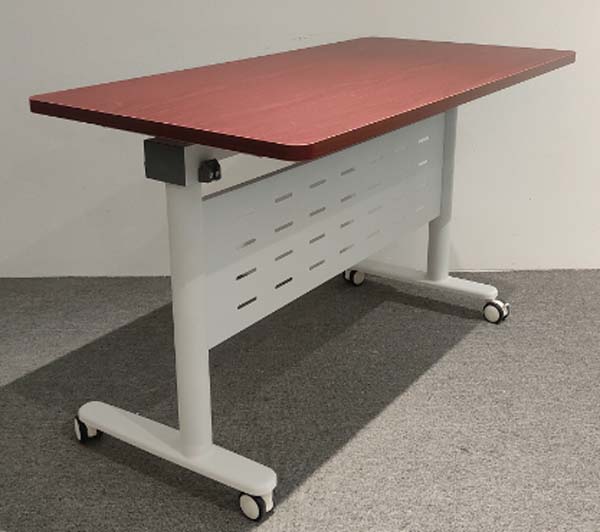

The YINGYAN MHT-ADJ-1206-W Mobile Height-Adjustable Office Training Desk features a clean, functional rectangular form finished with a warm reddish woodgrain laminate work surface and smooth white powder-coated steel framing. Its cantilever T-base design creates an open, unobstructed front profile, paired with a full-width perforated white steel modesty panel that balances sight privacy with airflow, and four dual-wheel casters mounted to the base feet for a stable, low-profile footprint. The desktop features softly rounded chamfered edges and dark PVC edge banding for a polished, durable finish. The desk’s work surface uses a particle board core topped with wear-resistant high-pressure laminate, supported by cold-rolled steel leg tubes and telescoping height adjustment components. A manual lever positioned under the front desktop edge locks the telescoping steel sleeves to hold the desktop at the selected height, with no motorized components required for operation. The 50mm dual-wheel PU swivel casters include foot-operated nylon brake levers to lock wheel rotation when the desk is in position. Practical functionality is designed for flexible workspace use: the lever-operated adjustment allows height positioning to support both seated work and raised standing activities, while the 360-degree swivel casters enable single-person repositioning across carpeted or hard flooring. Identical desks can be connected edge-to-edge to build linear, U-shaped or clustered layouts, and the perforated modesty panel supports cable pass-through and ventilation for under-desk equipment. The laminate surface resists common office stains and wipes clean easily, and the open cantilever frame provides full, unobstructed knee clearance for two users per desk, with no central support to restrict leg movement. This desk fits a wide range of commercial and residential settings, including corporate training rooms that require frequent layout changes between sessions, small to medium meeting spaces, K-12 and higher education classrooms, open office collaborative zones for impromptu team work, temporary event and exhibition spaces for fast setup and breakdown, and compact small office or home office secondary workstations, where its warm woodgrain finish complements modern interior design palettes. For procurement teams, key considerations include confirming final material specifications such as steel frame thickness and substrate composition prior to bulk order, as several construction details align with standard category configurations rather than final measured supplier data. The desk ships as a knockdown flat-pack in protective 5-layer corrugated packaging with foam corner protection, and assembly can be completed by a single person in roughly half an hour using the included hardware and tool. The flat-pack design supports efficient freight loading for large project orders, and a range of finish options is available to coordinate with existing space aesthetics. The caster load ratings and locking mechanism are engineered to support full static desktop loads for stable daily use across high-traffic environments.

Mobile Height-Adjustable Office Training Desk Specifications
