Automatic mm / inch conversion · Core engineering specifications
| Overall footprint | 3200 x 800 x 750 mm | |
|---|---|---|
| Single worktop thickness | 25 mm | |
| Leg column cross-section | 80 x 50 mm | |
| Horizontal support beam depth | 100 mm | |
| Seated knee clearance height | 680 mm | |
| Knee clearance depth per user | 740 mm | |
| Work surface edge banding thickness | 2 mm | |
| Adjustable levelling foot diameter | 50 mm | |
| Total height adjustment range | 650 mm | |
| Center gap between adjacent worktops | 0 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Per-workstation static load capacity | 120 kg | |
|---|---|---|
| Total product net weight | 150 kg | |
| Vertical lifting speed | 38 mm/s | |
| Height adjustment cycle rating | 10000 full cycles | |
| Maximum recommended user weight plus equipment per station | 136 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Work surface core | 18mm high density particleboard core | |
|---|---|---|
| Work surface finish | Light grey high-pressure laminate (HPL) wear layer | |
| Edge banding | 2mm matching light beige ABS edging | |
| Lifting leg columns | Cold-rolled steel powder coated white | |
| Support frame and cross beams | 2mm thick cold-rolled steel powder coated white | |
| Levelling glides | Injection-moulded black nylon non-marking pads | |
| Lifting actuator internal components | Steel lead screw with polymer bearing guides | |
| Control switch housing | Black ABS plastic | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
Adjustment / rotation / tilt / mobility / storage features
| Electric height adjustment | Dual-motor system per desk unit, travel 650mm from seated to standing height | |
|---|---|---|
| Anti-collision protection | Automatic stop and reverse on 3kg impact resistance | |
| Height memory presets | 4 programmable saved height positions per control unit | |
| Independent adjustment per workstation | Each 1600mm desk unit adjusts height separately, allowing sit/stand customization per user | |
| Adjustable floor levelling | 15mm vertical adjustment per foot to compensate for uneven carpet or hard flooring | |
| Integrated cable management | Under-desk cable tray channel routed along horizontal support beam | |
| Continuous benching configuration | Units can be linked side-by-side to create extended multi-user work rows without leg overlap | |
| Overheat protection | 2 minute continuous operation lockout after 1 minute of active lifting to protect motors | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Number of shipping cartons | 4 | |
|---|---|---|
| Individual worktop carton dimensions | 1650 x 850 x 80 mm | |
| Individual frame carton dimensions | 1000 x 300 x 200 mm | |
| Total gross shipping weight | 165 kg | |
| Total shipping volume | 0.38 CBM | |
| Required assembly time | 60 minutes | |
| 20ft GP container loading quantity | 52 units | |
| 40ft HQ container loading quantity | 128 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
Recommended spaces / users / usage modes

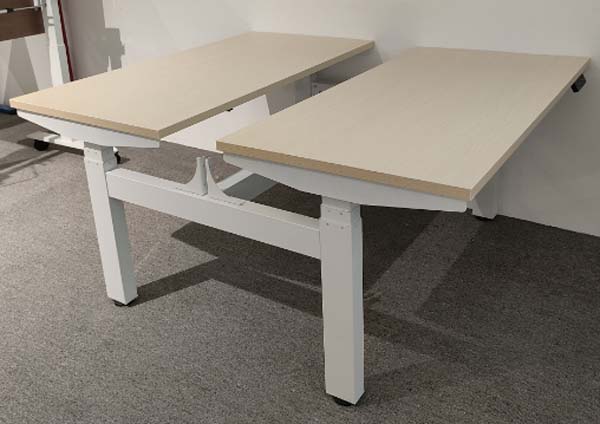

| Open plan office workstations | Ideal for 2-person back-to-back or side-by-side team benching layouts, supporting mixed seated and standing work styles | |
|---|---|---|
| Co-working flexible spaces | Suitable for flexible hot-desking environments where users require personalized height adjustment | |
| Project team work areas | Supports extended work sessions with equipment spread across 800mm deep work surfaces, with space for monitors, keyboards and documents | |
| Administrative and back office zones | Provides durable commercial-grade work surfaces for daily administrative tasks, with stable frame support for office equipment | |
| Home office dual-user setups | Fits dedicated home work rooms for two simultaneous users, with independent height control for personalized ergonomics | |
| Training room flexible layouts | Can be repositioned and linked into extended rows for training, workshop or collaborative event configurations |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Applies to dimensional and safety requirements for office work desks and workstations | |
|---|---|---|
| EN 527-2:2002 | Applies to mechanical stability and structural strength requirements for office desks | |
| EN 1335-2:2009 | Referenced for ergonomic clearance dimensions around seated work positions |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Applies to desk product safety, structural performance and durability testing for office desks | |
|---|---|---|
| ANSI/BIFMA G1-2013 | Applies to ergonomic guideline requirements for adjustable height work surfaces |
Standards applicable to China-market projects
| GB/T 3326-2016 | Applies to desk dimensional tolerance and stability requirements for office work surfaces | |
|---|---|---|
| GB/T 3327-2016 | Applies to mechanical performance requirements for office desks including static load and durability testing | |
| GB 18580-2017 | Applies to formaldehyde emission limits for wood-based panel materials, E1 grade maximum 0.124mg/m³ | |
| GB/T 24821-2009 | Applies to performance requirements for electric height-adjustable office desks including lifting mechanism safety |
This product must meet the following technical requirements: 1. GB/T 3326-2016: Applies to desk dimensional tolerance and stability requirements for office work surfaces; 2. GB/T 3327-2016: Applies to mechanical performance requirements for office desks including static load and durability testing; 3. GB 18580-2017: Applies to formaldehyde emission limits for wood-based panel materials, E1 grade maximum 0.124mg/m³; 4. GB/T 24821-2009: Applies to performance requirements for electric height-adjustable office desks including lifting mechanism safety; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
