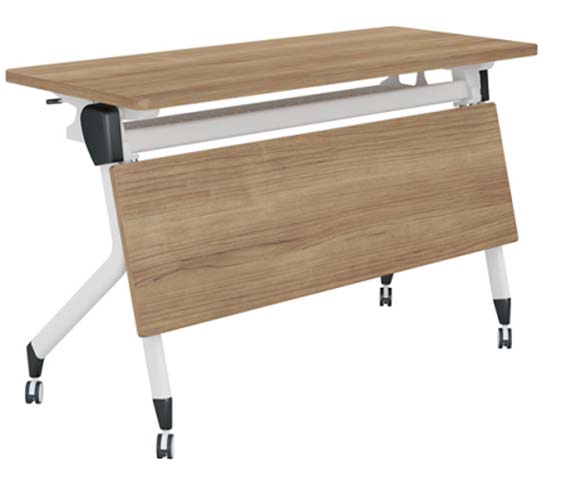

Light Oak Flip-Top Mobile Training Table with Modesty Panel (model FTM-TT-LO1800-WF) is listed under Flip Top Training Table, with overall dimensions of 1800 × 600 × 750 mm and main material of Particle‑board (PB). Load capacity: 136 kg. Certifications: mobile,nesting,design,flip-top,mechanism,commercial,training,furniture,light,wood,grain,finish,white,metal,frame. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W x D x H) | 1800 x 600 x 750 mm | |
|---|---|---|
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static tabletop load capacity | 136 kg | |
|---|---|---|
| Product net weight | 44 kg | |
| Caster load rating per wheel | 40 kg | |
| Nested storage space saving | 73% | |
| Recommended seating capacity | 3 people | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Flip mechanism cycle life | 10000 operations | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop | 25mm E1 grade particleboard core with light oak thermal-fused melamine surface | |
|---|---|---|
| Frame | 1.5mm thick steel tubing with white epoxy powder-coat finish | |
| Modesty panel | Matching light oak melamine engineered wood panel attached to front crossbar | |
| Edge trim | 2mm thick impact-resistant PVC edge banding on all tabletop and panel edges | |
| Casters | 76mm black nylon swivel casters with brake locks, black rubber tread | |
| Flip mechanism components | Black glass-filled nylon actuation lever and pivot brackets with steel hinge hardware |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Flip-top operation | Side-mounted one-hand release lever tilts tabletop 90 degrees to vertical for nesting storage, locks in both horizontal use and vertical storage positions | |
|---|---|---|
| Mobility and locking | Four swivel casters, two with integrated brake locks to hold table in fixed position during use | |
| Table linking | Integrated steel connector brackets on frame sides to join multiple tables in straight rows for conference layouts | |
| Surface performance | Melamine tabletop surface resists scratches, stains, and incidental heat from office equipment |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions (L x W x H) | 1880 x 680 x 120 mm | |
|---|---|---|
| Gross shipping weight | 49 kg | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate training rooms | Configurable nesting design supports quick room reconfiguration between training sessions | |
|---|---|---|
| Conference and meeting spaces | Linkable tables can be arranged into large layouts for group meetings or events |
EU Market Access Requirements* EN Standards
| EN 15372:2016 | Furniture – Strength, durability and safety for non-domestic tables | |
|---|---|---|
| EN 12521:2015 | Furniture – Strength, durability and safety for domestic tables |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Standard for desk products, applicable to structural performance and safety testing |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to tabletop and panel construction | |
|---|---|---|
| GB/T 3325-2017 | General technical requirements for metal furniture, applicable to steel frame and hardware | |
| GB 18580-2017 | Formaldehyde emission limits for engineered wood products, applicable to particleboard core |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to tabletop and panel construction; 2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel frame and hardware; 3. GB 18580-2017: Formaldehyde emission limits for engineered wood products, applicable to particleboard core; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
