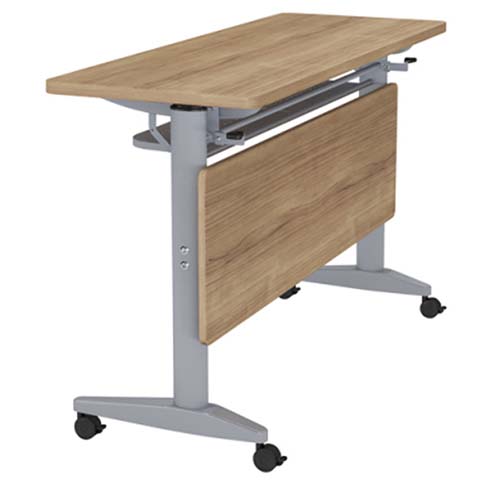

Mobile Flip-Top Nesting Training Table with Lockable Casters (model TRN-FLP-1200-OAK) is listed under Flip Top Training Table, with overall dimensions of 1200 × 600 × 750 mm and main material of Particle‑board (PB). Load capacity: 80 kg. Certifications: Foldable,nesting,design,mobile,wheeled,base,light,oak,finish,silver,steel,frame. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Primary Component Thickness | 40 mm according to load-bearing role | |
|---|---|---|
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop static load capacity | 80 kg | |
|---|---|---|
| Product net weight | 28 kg | |
| Caster rolling load rating per wheel | 35 kg | |
| Seating capacity per table | 1 user | |
| Nested table storage density | 4 tables per linear meter | |
| Locking brake static stability load | 15 kg lateral force per caster | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop and modesty panel | 25mm particleboard core with light oak melamine laminate, 2mm PVC edge banding | |
|---|---|---|
| Support frame and columns | 1.5mm thick cold-rolled steel with matte silver powder-coated finish | |
| Caster components | Black nylon wheel housing with polyurethane tread, dual locking brake mechanism | |
| Flip hinge hardware | Zinc-plated steel pivot brackets with spring-assisted tilt lock | |
| Fastener components | Zinc-plated steel bolts and lock nuts for rigid frame assembly | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Tabletop flip mechanism | Spring-assisted single-lever tilt lock, rotates 90 degrees from horizontal use to vertical storage | |
|---|---|---|
| Caster mobility system | Four dual-lock casters, 2 locking for stationary use, 2 swiveling for easy repositioning | |
| Nesting storage capability | Vertical folded orientation allows tight nesting with identical tables to reduce storage footprint by 70% | |
| Quick reconfiguration design | Tool-free flip operation allows full room layout changes in 10 minutes per 20-table set |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate training rooms | Enables quick room reconfiguration between lecture, group work and exam layouts via flip-top nesting design | |
|---|---|---|
| Multipurpose conference spaces | Frees up floor space when not in use by nesting tables against walls for event setup |
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Office work tables safety and strength requirements, applicable for load and stability testing | |
|---|---|---|
| EN 1730:2012 | Furniture tables test methods for strength, durability and stability, applicable for mechanical performance validation | |
| EN 12529:2012 | Castors for furniture, applicable for caster load and rolling durability testing |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, applicable for static load, stability and durability performance testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage, pedestals and mobile tables, applicable for caster and frame fatigue testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to tabletop and laminate structural performance | |
|---|---|---|
| GB/T 3325-2017 | General technical requirements for metal furniture, applicable to steel frame and welded structural integrity | |
| GB 28007-2011 | Safety requirements for children's furniture, applicable for sharp edge and stability testing if used in education settings |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to tabletop and laminate structural performance; 2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel frame and welded structural integrity; 3. GB 28007-2011: Safety requirements for children's furniture, applicable for sharp edge and stability testing if used in education settings; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
