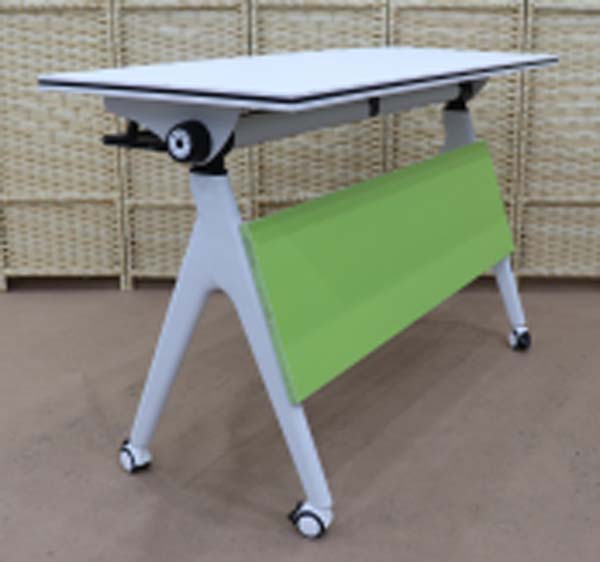

Product supplierMobile Tilt-Top Nesting Training Table with Green Modesty Panel, 25mm particleboard core
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 600 × 750 mm | |
|---|---|---|
| Tabletop thickness | 25 mm | |
| Knee clearance height | 680 mm | |
| Knee clearance width | 1000 mm | |
| Modesty panel dimensions | 900 x 350 mm | |
| Caster diameter | 50 mm | |
| Frame leg tube profile | 40 x 20 mm | |
| Nesting gap between nested tables | 120 mm | |
| Tabletop overhang front/rear | 50 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net product weight | 22 kg | |
|---|---|---|
| Static tabletop load capacity | 100 kg | |
| Recommended seated user count | 1 | |
| Tilt mechanism cycle life | 10000 cycles | |
| Surface scratch resistance | 2000 cycles | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | 25mm particleboard core | |
|---|---|---|
| Tabletop surface | White melamine laminate | |
| Support frame | 1.2mm thick powder-coated light gray steel | |
| Modesty panel | 18mm thick bright green melamine faced MDF | |
| Tilt pivot assembly | Black die-cast aluminum housing with steel axle | |
| Locking lever | Injection molded black nylon with steel actuation rod | |
| Casters | Black PU wheel with white nylon housing, brake mechanism on 2 wheels | |
| Edge banding | 2mm thick black PVC | |
| Frame fasteners | Zinc-plated steel hex bolts and lock nuts | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Tabletop tilt operation | Lever-activated tilt lock tilts tabletop 90 degrees to vertical position for nesting storage | |
|---|---|---|
| Caster mobility | 4 swivel casters allow 360 degree movement for easy reconfiguration; 2 front casters include brake locks to hold table in fixed position during use | |
| Nesting storage | Vertical tilted position allows tables to nest closely together to reduce storage footprint by 75% when not in use | |
| Surface utility | Smooth non-porous melamine surface supports writing, laptop use, and training material placement, resistant to common office stains | |
| Modesty panel function | Fixed green panel blocks view of seated user legs for privacy during training sessions | |
| Leveling adjustment | Caster stems include 5mm height adjustment to compensate for uneven floor surfaces | |
| Edge protection | PVC edge banding prevents chipping and impact damage to tabletop corners and edges during movement and storage | |
| Tilt adjustment pivot diameter | 80 mm | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping cartons | 1 carton | |
|---|---|---|
| Shipping carton dimensions | 1280 x 680 x 120 mm | |
| Gross shipping weight | 26 kg | |
| Cubic volume per unit | 0.104 CBM | |
| Assembly time | 30 minutes | |
| 20ft container loading capacity | 260 units | |
| 40ft HQ container loading capacity | 620 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate training rooms | Designed for flexible reconfiguration for instructor-led training, group workshops and seminar layouts, can be quickly nested away for multi-use spaces | |
|---|---|---|
| Co-working spaces | Suitable for hot-desking and temporary workstations that can be repositioned or stored as occupancy needs change | |
| Classroom and education facilities | Provides durable work surface for student use, easy rearrangement for different teaching formats and quick cleanup between classes | |
| Conference breakout areas | Supports small group discussion and collaborative work during meeting breaks, can be moved to create larger open spaces as needed | |
| Event and exhibition spaces | Temporary work surface for event registration, exhibit booths and attendee work areas, easy to transport and store after events |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office table safety requirements | EN 527:2011 | |
|---|---|---|
| Office table dimensional requirements | EN 527:2002 |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Desk strength and durability | ANSI/BIFMA X2021 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Tabletop formaldehyde emission | GB/T 39600E1 grade | |
|---|---|---|
| Steel frame coating adhesion | GB/T 9286Grade 1 | |
| Structural stability | GB/T 10357.1 | |
| Caster durability | GB/T 10357.5 |
Standardized tender description text
This product must meet the following technical requirements: 1. Tabletop formaldehyde emission: GB/T 39600E1 grade; 2. Steel frame coating adhesion: GB/T 9286Grade 1; 3. Structural stability: GB/T 10357.1; 4. Caster durability: GB/T 10357.5; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
