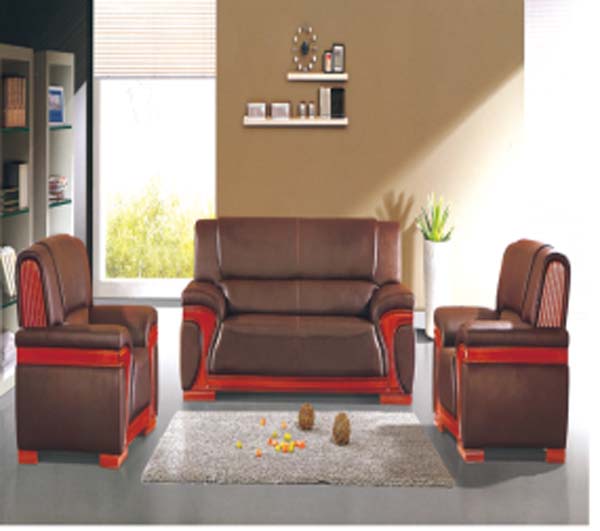

1+1+2 Configuration Brown Faux Leather Executive Office Reception Sofa Set with Red Wood Trim (model OFS-112-BRW-REDTRIM) is listed under Genuine Leather Sofa. Dimensions: 1620 × 900 × 890 mm. Materials: 1.2 mm thick brown PU faux leather, stain and water resistant treated. Load capacity: 150 kg. Product Features: classic,executive,style,fixed,non-reclining,structure,upholstered,seating,wood,frame,construction. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | Fanshidun | Model | OFS-112-BRW-REDTRIM |
| Overall dimensions (W × D × H) | 1620 × 900 × 890 mm | Overall set layout | 3 pieces: two single armchairs, one 2-seat loveseat arranged in conversational grouping |
| Seat height from floor | 450 mm | Seat depth (usable surface) | 580 mm |
| Backrest height above seat | 440 mm | Armrest height above seat | 180 mm |
| Arm width (padded surface) | 120 mm | Seat cushion thickness | 120 mm |
| Minimum floor space required for full set | 3200 x 2800 mm | Back Cushion Thickness | 160 mm |
| Leg Height / Floor Clearance | 160 mm | Single armchair net weight | 35 kg |
| Per-seat static load capacity | 150 kg | Seat foam density | 40 kg/m³ |
| Foam rebound rate | 60% | PU upholstery abrasion resistance | 50000 Martindale cycles |
| Seam stitch pitch | 30 mm | Standard commercial warranty | 3 years |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm |
| Per-seat Load Reference | 130 kg/seat | Seat and back upholstery | 1.2 mm thick brown PU faux leather, stain and water resistant treated |
| Quilted side back accents | Matching PU with diamond quilted stitching for decorative detail | Structural inner frame | Kiln-dried solid hardwood with multi-layer plywood reinforcement, insect treated |
| Seat support system | 3.8 mm diameter serpentine steel springs with elastic webbing support net | Cushion core material | High-density polyurethane foam wrapped in soft polyester batting |
| Armrest padding | 20 mm thick high-density foam under PU upholstery for padded comfort | Exterior trim and feet | Glossy red-stained solid wood with polished clear lacquer finish |
| Fastening hardware | Zinc-plated steel bolts and connecting brackets for KD assembly | Back panel structure | Hardboard back panel covered in matching PU upholstery |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | Seating configuration | 4 total seats across 3 pieces arranged for face-to-face visitor conversation |
| Recline function | Fixed non-reclining upright backrest angle of 105 degrees for formal waiting posture | Mobility | Fixed stationary position with solid wood block feet, no casters or glide adjustment |
| Assembly requirement | Knockdown assembly requiring attachment of wood trim, feet and back panels using included hardware | Surface maintenance | Wipe-clean PU surface resistant to common office stains, spills and light abrasion |
| Armrest function | Fully padded integrated armrests supporting forearms during seated waiting periods | Set flexibility | Individual pieces can be repositioned separately to adapt to different lobby layouts |
| Block foot height | 50 mm | Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | Reference Packaging Volume | 1.8 m³/item |
| Reference Packaged Gross Weight | 110 kg/item | Executive office reception areas | Formal styling suitable for greeting corporate visitors and clients outside private offices |
| Company lobby waiting spaces | Durable high-capacity seating for short-term visitor waiting during business hours | Managerial office meeting nooks | Small conversational seating group for casual 4-person discussions in private offices |
| Government and institutional visitor areas | Formal durable design meets requirements for public institutional waiting spaces | Recommended pairing | Place with coordinating wood-finish coffee table on low-pile commercial area rug |
| Positioning guidance | Arrange units facing inward with 450 mm clearance between seats for easy guest access | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1620 × 900 × 890 mm | |
|---|---|---|
| Overall set layout | 3 pieces: two single armchairs, one 2-seat loveseat arranged in conversational grouping | |
| Seat height from floor | 450 mm | |
| Seat depth (usable surface) | 580 mm | |
| Backrest height above seat | 440 mm | |
| Armrest height above seat | 180 mm | |
| Arm width (padded surface) | 120 mm | |
| Seat cushion thickness | 120 mm | |
| Minimum floor space required for full set | 3200 x 2800 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Single armchair net weight | 35 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Seat foam density | 40 kg/m³ | |
| Foam rebound rate | 60% | |
| PU upholstery abrasion resistance | 50000 Martindale cycles | |
| Seam stitch pitch | 30 mm | |
| Standard commercial warranty | 3 years | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | 1.2 mm thick brown PU faux leather, stain and water resistant treated | |
|---|---|---|
| Quilted side back accents | Matching PU with diamond quilted stitching for decorative detail | |
| Structural inner frame | Kiln-dried solid hardwood with multi-layer plywood reinforcement, insect treated | |
| Seat support system | 3.8 mm diameter serpentine steel springs with elastic webbing support net | |
| Cushion core material | High-density polyurethane foam wrapped in soft polyester batting | |
| Armrest padding | 20 mm thick high-density foam under PU upholstery for padded comfort | |
| Exterior trim and feet | Glossy red-stained solid wood with polished clear lacquer finish | |
| Fastening hardware | Zinc-plated steel bolts and connecting brackets for KD assembly | |
| Back panel structure | Hardboard back panel covered in matching PU upholstery | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | 4 total seats across 3 pieces arranged for face-to-face visitor conversation | |
|---|---|---|
| Recline function | Fixed non-reclining upright backrest angle of 105 degrees for formal waiting posture | |
| Mobility | Fixed stationary position with solid wood block feet, no casters or glide adjustment | |
| Assembly requirement | Knockdown assembly requiring attachment of wood trim, feet and back panels using included hardware | |
| Surface maintenance | Wipe-clean PU surface resistant to common office stains, spills and light abrasion | |
| Armrest function | Fully padded integrated armrests supporting forearms during seated waiting periods | |
| Set flexibility | Individual pieces can be repositioned separately to adapt to different lobby layouts | |
| Block foot height | 50 mm | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office reception areas | Formal styling suitable for greeting corporate visitors and clients outside private offices | |
|---|---|---|
| Company lobby waiting spaces | Durable high-capacity seating for short-term visitor waiting during business hours | |
| Managerial office meeting nooks | Small conversational seating group for casual 4-person discussions in private offices | |
| Government and institutional visitor areas | Formal durable design meets requirements for public institutional waiting spaces | |
| Recommended pairing | Place with coordinating wood-finish coffee table on low-pile commercial area rug | |
| Positioning guidance | Arrange units facing inward with 450 mm clearance between seats for easy guest access |
EU Market Access Requirements* EN Standards
| EN 1335-1:2020 | Office furniture seating safety requirements, applicable to visitor reception seating | |
|---|---|---|
| EN 1021-1:2014 | Furniture upholstery flammability resistance to smouldering cigarette, recommended for public spaces | |
| EN 12520:2015 | Furniture strength, durability and safety for domestic and contract seating |
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2021 | Lounge and public seating standard covering load, durability and stability for reception use | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard applicable to material emissions and ergonomic performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to solid wood frame and trim components | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wooden furniture, required for indoor office use | |
| GB/T 19001-2016 | Quality management system requirement, applicable to commercial furniture manufacturing supply |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to solid wood frame and trim components; 2. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture, required for indoor office use; 3. GB/T 19001-2016: Quality management system requirement, applicable to commercial furniture manufacturing supply; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
