Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2180 × 900 × 950 mm | |
|---|---|---|

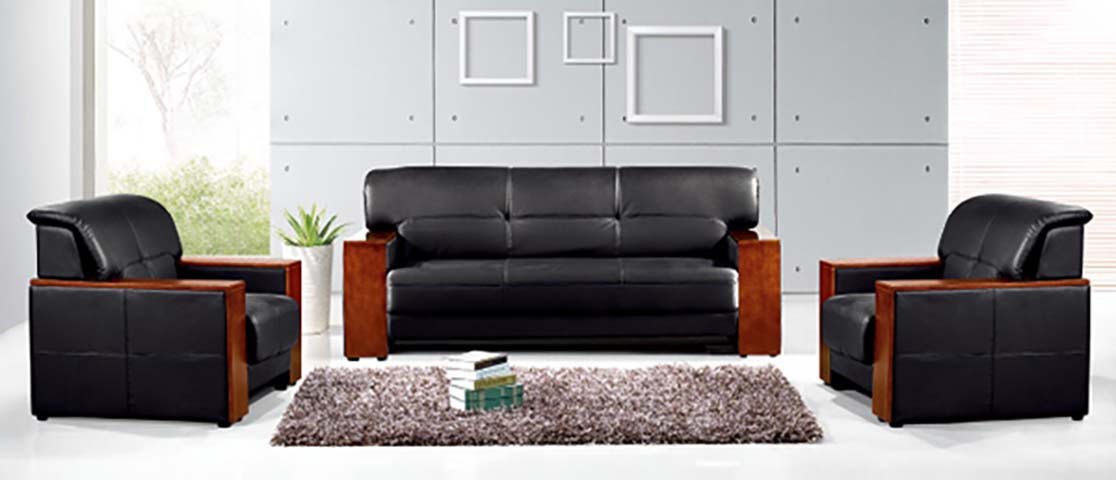

| Overall set layout | 1 three-seater + 2 single-seat armchairs, symmetric conversational arrangement | |
| Seat height from floor | 450 mm | |
| Seat depth (usable) | 550 mm | |
| Armrest width (solid wood) | 120 mm | |
| Armrest height from floor | 620 mm | |
| Backrest height (from seat surface) | 400 mm | |
| Seat cushion thickness | 150 mm | |
| Back cushion thickness | 120 mm | |
| Floor glide diameter | 30 mm | |
| Recommended set clearance area | 3500 x 2800 mm | |
| Leg Height / Floor Clearance | 160 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-seat static load capacity | 150 kg | |
|---|---|---|
| Seat foam density | 70 kg/m³ | |
| Backrest foam density | 60 kg/m³ | |
| Foam resilience rate | 60% | |
| Total set net weight (reference) | 165 kg | |
| Frame durability rating | 10 years normal commercial use | |
| Seam stitch pitch | 30 mm | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery covering | 1.2mm thick black PU faux leather, anti-scratch water-resistant finish | |
|---|---|---|
| Inner load-bearing frame | Kiln-dried solid pine + 15mm plywood reinforcement, moisture content <12% | |
| Armrest structure | Polished solid hardwood, stained warm brown, extends to form front side supports | |
| Seat cushion core | One-piece molded high-resilience PU foam, 180g silk floss comfort top layer | |
| Seat support system | 3.2mm diameter manganese steel serpentine springs + 50mm elastic rubber webbing | |
| Floor contact glides | Hard-wearing black polymer glides, non-marking, fixed to base of each unit | |
| Upholstery stitching | High-tensile polyester bonded thread, double-stitched panel seams | |
| Frame treatment | Anti-insect, anti-bacterial, anti-corrosion wood treatment applied during production | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8fabric/leather color options |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating function | Fixed static formal seating for 5 total occupants, no recline or adjustment mechanisms | |
|---|---|---|
| Surface protection | Leather surface resists water, stains and light scratches for high-traffic reception areas | |
| Floor protection | Polymer glides prevent scuffing on hard smooth office flooring without additional pads | |
| Conversational layout | Symmetric facing arrangement supports face-to-face guest and host interaction | |
| Cushion performance | High-density foam core retains shape after prolonged use without permanent indentation | |
| Armrest function | Wide solid wood armrests provide stable arm support and durable impact-resistant edge protection | |
| Back support | Segmented padded backrest provides lumbar support for upright seated waiting posture | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office reception area | Formal styling matches professional guest waiting spaces for managers and C-suite offices | |
|---|---|---|
| Corporate waiting room | High-durability construction supports high-traffic daily visitor use | |
| Conference lounge breakout area | Conversational layout supports informal small group discussions during breaks | |
| Government/enterprise guest meeting space | Neutral black and wood finish fits formal official reception decor requirements | |
| Small business customer waiting zone | Compact 3-piece set fits 15sqm dedicated reception areas without overcrowding |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Furniture strength, durability and safety for domestic and contract seating | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignitability test for smouldering cigarette source |
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to wood frame and arm components | |
|---|---|---|
| GB 20400-2006 | Limit of harmful substances in leather and fur, applicable to PU/genuine leather upholstery | |
| GB/T 1952.1-2012 | Test methods for sofas, applicable to strength, durability and stability testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood frame and arm components; 2. GB 20400-2006: Limit of harmful substances in leather and fur, applicable to PU/genuine leather upholstery; 3. GB/T 1952.1-2012: Test methods for sofas, applicable to strength, durability and stability testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
